KUKA PH1003-2840 Replacement/Upgrade Solution for KRC

Product Overview

KUKA PH1003-2840 Replacement/Upgrade Solution for KRC: Smooth Transition from Legacy Robot Controller Power Systems

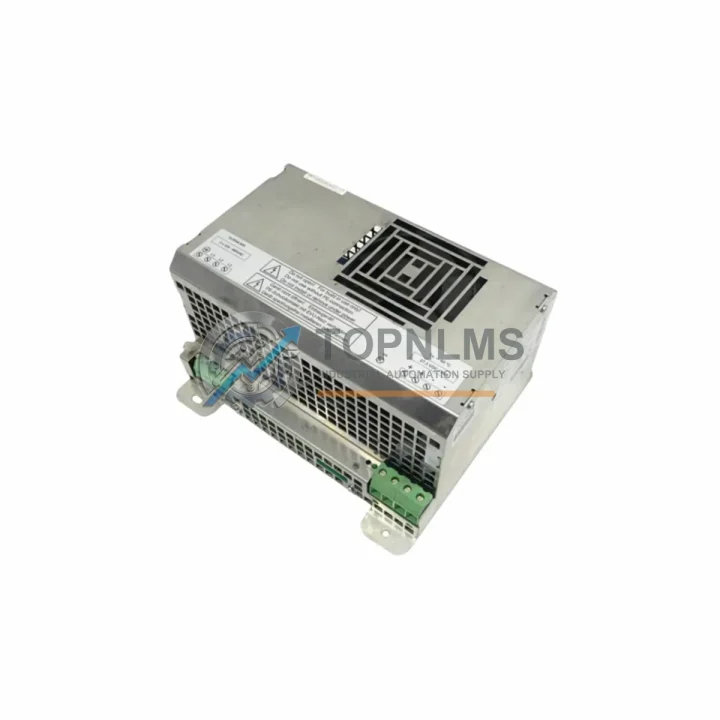

The KUKA PH1003-2840 is a 24VDC power supply unit (PSU) designed for the KUKA KRC robot controller family — including KRC1, KRC2, and KRC2 ed05 cabinets. As KUKA progressively phases out legacy KRC-series hardware, many production facilities running KUKA KR 6, KR 16, KR 30, and KR 60 robot arms are encountering end-of-life PSU failures that threaten uptime. TOPNLMS stocks verified PH1003-2840 units to support direct replacement and controlled migration programs, enabling your maintenance team to restore or modernize the power architecture of your robot controller cabinet with minimal disruption.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful KRC power system migration rarely involves the PSU alone. During field replacement and cabinet modernization projects, engineers typically address several interdependent components to ensure system stability and reduce the risk of secondary failures.

When replacing the PH1003-2840, it is common practice to simultaneously inspect and, where necessary, replace the KUKA KPS-600 (KRC2 servo power supply) and the KUKA KSD1-16 servo drive modules, since these units share the same DC bus and are subject to comparable wear cycles. Capacitor degradation in the KPS-600 is a frequent root cause of PSU-related faults that are misdiagnosed as PH1003-2840 failures.

For facilities upgrading from KRC1 to KRC2 ed05 architecture, the migration also typically involves replacing the KUKA KRC2 DSE-IBS C33 safety interface board and the KUKA MFC3 motion control card, both of which depend on stable 24VDC rail voltage supplied by the PH1003-2840. Voltage ripple or transient spikes from a failing PSU can corrupt firmware on these boards, making PSU replacement the first and most critical step in any KRC2 retrofit.

Communication continuity is another key concern. KRC2 controllers integrated into PROFIBUS or DeviceNet networks rely on the KUKA PROFIBUS CP5611 communication card or equivalent fieldbus interface modules. These cards are powered from the same 24VDC rail and are sensitive to supply instability. Replacing the PH1003-2840 before addressing fieldbus communication issues ensures that network diagnostics reflect true protocol faults rather than power-induced noise.

For cabinet-level upgrades, the KUKA KRC2 teach pendant cable assembly (KCP2 cable) and the KUKA smartPAD interface should be inspected alongside the PSU swap, as teach pendant communication errors are frequently triggered by 24VDC supply degradation rather than pendant hardware failure. Replacing the PSU often resolves intermittent KCP2 disconnection faults without additional hardware cost.

Where the upgrade scope extends to the I/O layer, facilities running KUKA RDC (Resolver Digital Converter) boards or external Beckhoff EK1100 EtherCAT coupler modules for expanded I/O should verify 24VDC rail stability post-replacement using a calibrated power analyzer before returning the robot to production. This step is especially important in multi-robot cells where a shared cabinet PSU feeds both the robot controller and peripheral safety relay modules.

Finally, for sites planning a longer-term migration from KRC2 to KUKA KRC4 architecture, the PH1003-2840 replacement serves as a bridge solution — maintaining production continuity while the KRC4 migration is planned, budgeted, and scheduled. TOPNLMS can supply both legacy KRC2 spares and KRC4-compatible components to support phased migration programs.

Retrofit Guidance FAQ

Q: Does replacing the PH1003-2840 require rewiring the KRC cabinet?
A: No. The PH1003-2840 uses the standard KUKA KRC harness connector layout. Replacement is a direct bolt-in swap. Disconnect the existing harness, remove the failed unit, install the new PSU, reconnect the harness, and restore power. No wiring modifications are required.

Q: Will the replacement PSU affect my robot’s PROFIBUS or DeviceNet communication?
A: No, provided the replacement unit delivers stable 24VDC within KUKA’s specified tolerance. Communication cards such as the CP5611 are powered from this rail but do not require reconfiguration after a PSU swap. If fieldbus faults persist after replacement, the root cause is in the communication card or network topology, not the PSU.

Q: Is programming or parameter backup required before replacing the PSU?
A: Yes — as a best practice, always back up the KRC2 system image (programs, machine data, and safety configuration) to a USB or network share before any hardware intervention. The PSU replacement itself does not alter stored programs, but a full backup protects against data loss from unexpected power events during the swap.

Q: Can the PH1003-2840 be installed in a KRC1 cabinet as well as KRC2?
A: Yes. The PH1003-2840 is compatible with both KRC1 and KRC2 (including KRC2 ed05) cabinet configurations. Verify the mounting rail spacing and harness connector type against your specific cabinet revision before ordering.

Q: What is the typical installation time for a field replacement?
A: An experienced automation technician can complete a PH1003-2840 swap in 30–60 minutes, including system backup, PSU removal, installation, and functional verification. Planned maintenance windows of 2 hours are recommended to allow for post-replacement diagnostics and a supervised production restart.

Warranty Assurance

Every KUKA PH1003-2840 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to dispatch, each unit undergoes functional output voltage verification and visual inspection for physical damage, connector integrity, and labeling accuracy. Units that do not meet our outgoing quality standard are quarantined and not shipped.

In the event of a warranty claim, TOPNLMS provides replacement unit dispatch within 3 business days of fault confirmation. Our after-sales team is reachable by email and phone to support fault diagnosis, shipping coordination, and documentation for insurance or maintenance records.

For volume procurement — including standing orders for MRO (Maintenance, Repair & Operations) programs — TOPNLMS offers priority allocation, pre-shipment inspection reports, and extended lead-time planning to ensure your spare parts inventory remains adequate for your production schedule.

Stock is held in Xiamen, China, with DHL Express, FedEx International Priority, and sea freight options available. Most in-stock orders are dispatched within 1–2 business days of payment confirmation.
