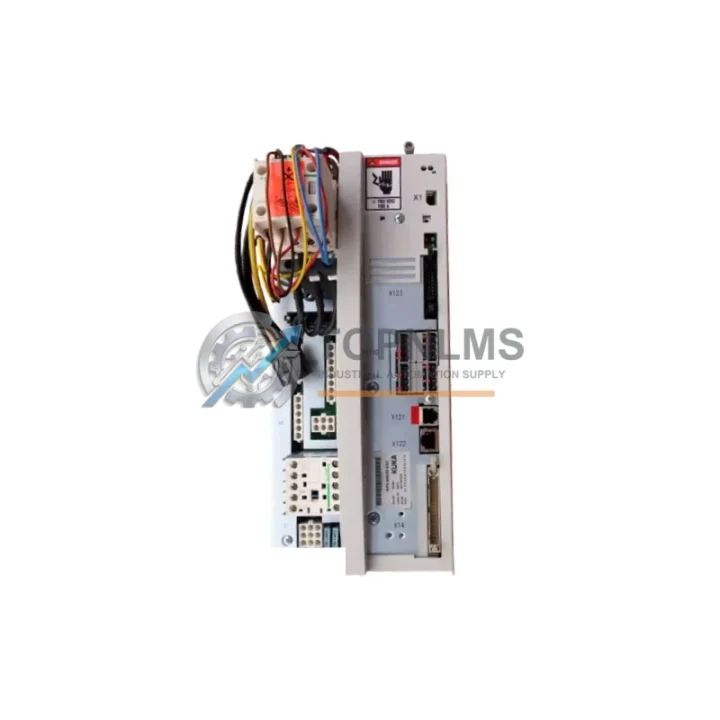

KUKA 00-198-266 KSP600-320 Ruggedized Servo Power Supply Module

Product Overview

KUKA 00-198-266 KSP600-320 Ruggedized Servo Power Supply Module for Harsh Industrial Environments

The KUKA 00-198-266 KSP600-320 is a high-performance servo drive power supply unit engineered for the KUKA KRC4 robot controller platform. Designed to operate continuously in demanding industrial environments — including high-temperature foundries, high-humidity coastal facilities, dust-laden mining operations, and vibration-intensive heavy manufacturing lines — this module delivers the stable, conditioned DC bus power that KUKA KRC4 servo drives depend on for precise, uninterrupted motion control. Whether deployed in a 24/7 automotive body-shop welding cell or a continuous-cast steel mill, the KSP600-320 maintains output integrity where lesser power supply units fail.

Rugged Specifications Table

Comprehensive Protection Solutions

The KSP600-320 does not operate in isolation — it is the power backbone of a tightly integrated KRC4 drive system. In a fully configured KUKA KRC4 control cabinet, it works in concert with the KUKA KSD1-48 servo drive modules, which regulate individual robot axis currents, and the KUKA KPP600-20 power pack, which handles the main supply conditioning upstream. The KUKA CCU (Cabinet Control Unit) monitors system-level health and communicates fault states back to the teach pendant, while the KUKA RDC (Resolver Digital Converter) board ensures encoder feedback integrity across all six axes even under high electromagnetic interference from nearby welding equipment or variable-frequency drives.

In facilities where the control cabinet is exposed to conductive dust or metallic particulates — common in grinding, cutting, or casting environments — the KSP600-320 is typically paired with a KUKA KRC4 cabinet filter mat kit and a positive-pressure purge system to maintain IP protection. For applications requiring functional safety, the module integrates with the KUKA KRC4 Safety Interface Board (SIB) and external Pilz PNOZ safety relay modules to enforce SIL 2 / PLd emergency-stop and safe-speed monitoring circuits. On the communications side, the KRC4 platform supports PROFINET IO and EtherNet/IP fieldbus adapters, enabling the servo power supply status to be monitored in real time by a Siemens S7-1500 PLC or a Rockwell ControlLogix controller at the supervisory level. Where legacy installations still use DeviceNet or PROFIBUS DP, KUKA’s fieldbus gateway modules bridge the KSB internal bus to the plant network without compromising drive synchronization.

For facilities managing mixed-generation robot fleets, it is worth noting that the earlier KUKA KRC2 KPS-600/20-ESC (00-134-525) power supply serves the same functional role in KRC2 cabinets. Stocking both variants — the 00-198-266 for KRC4 and the 00-134-525 for KRC2 — ensures that a single unplanned downtime event does not cascade into a multi-day production halt while waiting for parts procurement.

Application in Critical Infrastructure

The KUKA 00-198-266 KSP600-320 has proven operational reliability across the most demanding sectors of critical industrial infrastructure:

Automotive Manufacturing: In body-in-white welding lines running three shifts, the KSP600-320 sustains the 320 V DC bus through thousands of arc-welding cycles per day. The integrated EMC filter suppresses high-frequency noise generated by resistance welding transformers, protecting the KRC4 controller’s logic circuits and preventing nuisance faults that would otherwise trigger unplanned line stops.

Oil & Gas and Petrochemical: Robotic inspection and maintenance systems deployed in refineries and LNG terminals require servo power supplies that tolerate wide ambient temperature swings, corrosive atmospheres, and strict EMC compliance. The KSP600-320’s sealed bus architecture and thermal overload protection make it suitable for use in Zone 2 adjacent control rooms when housed in appropriately rated enclosures.

Mining and Mineral Processing: In underground or open-pit mining automation — including ore-handling conveyors, drill rigs, and sorting robots — vibration levels routinely exceed those found in conventional factories. The KSP600-320’s compliance with IEC 60068-2-6 vibration standards ensures that solder joints, bus connectors, and capacitor banks remain intact under sustained mechanical stress.

Power Generation and Utilities: Nuclear and thermal power plants use robotic systems for fuel handling, inspection, and maintenance in high-radiation or high-temperature zones. The KSP600-320’s robust thermal management and fault-reporting via the KRC4 CCU allow plant operators to monitor servo system health remotely and schedule predictive maintenance before a failure occurs.

Metallurgy and Steel Production: Continuous casting lines, rolling mills, and ladle-handling robots operate in environments with ambient temperatures exceeding 45 °C, intense electromagnetic fields from induction furnaces, and heavy airborne particulates. The KSP600-320’s forced-air cooling and EMI shielding maintain stable DC bus voltage under these conditions, preventing axis position errors that could damage tooling or cause safety incidents.

Water and Wastewater Treatment: Robotic sampling, valve actuation, and pipe inspection systems in water treatment facilities face high humidity and chemical vapors. Deploying the KSP600-320 in a sealed, climate-controlled cabinet with positive-pressure purging extends service life significantly compared to standard industrial power supplies.

Security & Quality FAQ

Q1: What does the 12-month warranty cover?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions. If the unit fails to meet KUKA OEM performance specifications within the warranty period, TOPNLMS will provide a replacement unit or full refund. The warranty period begins from the date of confirmed delivery.

Q2: How is each unit tested before shipment?
Every KUKA 00-198-266 KSP600-320 unit undergoes a pre-shipment functional verification process that includes DC bus output voltage measurement, thermal cycling under load, and communication interface continuity checks. Units that do not pass all test criteria are quarantined and not shipped. A test report is available upon request for critical infrastructure procurement.

Q3: Is this unit compatible with all KRC4 variants?
The KSP600-320 (00-198-266) is compatible with the standard KUKA KRC4, KRC4 compact, and KRC4 smallsize controller platforms. It is not a direct replacement for KRC2-generation power supplies (such as the KPS-600/20-ESC, part 00-134-525), which use a different bus architecture. If you are unsure of your controller generation, please contact us with your robot serial number and we will confirm compatibility before shipment.

Q4: Can you support long-term or repeat supply for production lines?
Yes. TOPNLMS maintains standing inventory of high-demand KUKA KRC4 spare parts, including the KSP600-320, to support planned maintenance programs and emergency breakdown scenarios. Volume pricing, consignment stock arrangements, and priority allocation for repeat customers are available. Contact our technical sales team to discuss a supply agreement tailored to your facility’s maintenance schedule.
