KUKA 00-205-143 Replacement/Upgrade Solution for KRC

Product Overview

KUKA 00-205-143 Replacement/Upgrade Solution for KRC Series: Smooth Transition from Legacy Robot Controller Power Systems

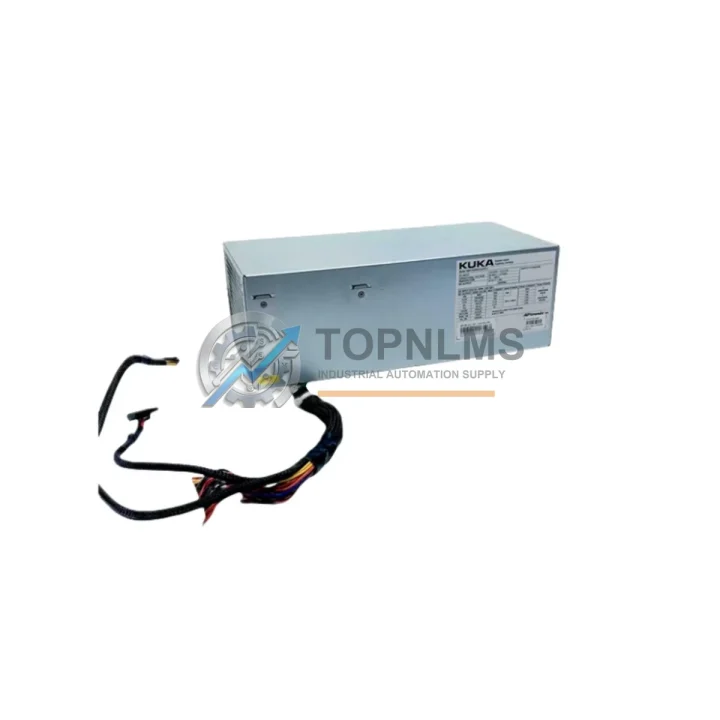

The KUKA 00-205-143 is a dedicated Power Supply Module (PSU) designed for the KUKA KRC robot controller platform — one of the most widely deployed industrial robot control architectures in automotive, heavy manufacturing, and precision assembly environments. As production lines age and original KUKA KRC1 and KRC2 controller cabinets approach end-of-service milestones, sourcing a reliable, drop-in replacement for the 00-205-143 PSU becomes a critical procurement priority. TOPNLMS stocks this module to support your retrofit, upgrade, and emergency replacement requirements with verified compatibility, pre-shipment testing, and a 12-month warranty.

The 00-205-143 PSU is responsible for converting incoming AC mains supply into the regulated DC voltages required by the KRC controller’s internal logic boards, servo amplifier bus, and I/O backplane. Failure of this module typically manifests as controller boot failure, E-Stop lockout, or intermittent power cycling — all of which result in unplanned downtime on the production floor. Having a tested replacement unit on hand or available for rapid dispatch is essential for minimizing mean time to repair (MTTR) in robot-intensive facilities.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful KRC controller modernization rarely involves a single component. When replacing the 00-205-143 PSU, field engineers typically audit the surrounding subsystems to prevent cascading failures and ensure the upgraded power supply operates within a healthy electrical environment. During a typical KRC retrofit engagement, the following components are commonly evaluated or replaced alongside the PSU:

The KUKA KPS-600 servo power supply and associated KSD servo drive modules share the same DC bus architecture as the 00-205-143 and should be inspected for capacitor aging and output ripple. If the main PSU has failed, the servo drives may have been subjected to undervoltage stress. Similarly, the KUKA DSE-IBS C33 DSP board — the primary logic controller within the KRC2 cabinet — relies on stable 24 VDC from the PSU; any instability here can corrupt motion programs or trigger safety faults.

On the I/O side, the KUKA KRC I/O module (typically a Phoenix Contact Inline or Interbus-based terminal block assembly) interfaces with the robot’s digital inputs and outputs for tooling, safety gates, and conveyor interlocks. These terminal modules are powered downstream of the 00-205-143 and should be verified for correct voltage after PSU replacement. If your facility uses PROFIBUS-DP or DeviceNet communication between the KRC controller and a host PLC — such as a Siemens S7-300 or Allen-Bradley ControlLogix — the communication module seated in the KRC cabinet should also be checked for proper initialization after power restoration.

For facilities migrating from KRC1 to KRC2 or from KRC2 toward the newer KUKA KR C4 platform, the 00-205-143 replacement is often the first step in a phased modernization. The KR C4 uses a fundamentally different power architecture with a KPP (KUKA Power Pack) replacing the legacy PSU format, but many sites choose to extend KRC2 life by 3–5 years through targeted component replacement — making the 00-205-143 a high-value procurement item. During this transition period, maintaining a spare KUKA teach pendant (KCP2) cable and a functional MFC3 motion control board is equally important to avoid multi-point failures during production.

If your control cabinet also houses third-party components such as a Pilz PNOZ safety relay or a Weidmüller signal isolator on the 24 VDC rail, these should be re-verified after PSU swap to confirm that inrush current during startup does not trip protective devices. Proper sequencing of cabinet power-up — PSU first, then servo bus, then I/O — is standard practice and should be documented in your site’s maintenance SOP.

Retrofit Guidance FAQ

Q: Can I reuse the existing wiring harness when replacing the 00-205-143?
A: Yes. The replacement module uses the same OEM connector pinout. Disconnect the harness from the failed unit, inspect for heat damage or chafing, and reconnect to the new module. No rewiring is required under normal circumstances.

Q: Do I need to re-upload robot programs after replacing the PSU?
A: No. The 00-205-143 is a power supply only — it carries no program memory. Robot programs reside on the KRC controller’s hard drive or CompactFlash card. Programs are unaffected by PSU replacement, provided the controller was shut down cleanly before the swap.

Q: Is the replacement compatible with both KRC1 and KRC2 cabinets?
A: The 00-205-143 is primarily associated with the KRC2 platform. Please confirm your cabinet generation (visible on the cabinet door label) before ordering. Contact TOPNLMS with your cabinet serial number if you need compatibility confirmation.

Q: What communication protocols are affected during the swap?
A: None. The PSU does not participate in PROFIBUS, DeviceNet, or Ethernet/IP communication. After power restoration, the KRC controller will re-initialize all fieldbus connections automatically as part of its standard boot sequence.

Q: How much physical space does the replacement require inside the cabinet?
A: The replacement module matches the original 00-205-143 form factor exactly. No cabinet modifications, additional DIN rail space, or bracket adapters are needed.

Q: What if my site uses a 480 VAC three-phase supply?
A: Verify the input voltage specification on your existing module label before ordering. TOPNLMS can advise on the correct variant for your regional supply voltage. Contact us at [email protected] with your cabinet nameplate data.

Warranty Assurance

Every KUKA 00-205-143 Power Supply Module shipped by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes a pre-shipment functional test to verify output voltage regulation, connector integrity, and thermal performance under load. If a module exhibits any defect in materials or workmanship within the warranty period, TOPNLMS will arrange replacement or repair at no additional cost to the buyer.

Our procurement assurance program includes: verified sourcing from authorized distribution channels, individual unit inspection before packaging, anti-static and moisture-barrier packaging for international transit, and full traceability documentation available on request. Typical dispatch lead time is 1–3 business days from order confirmation, with DHL Express, FedEx International Priority, and sea freight options available depending on urgency and destination.

For urgent breakdown situations, TOPNLMS offers priority processing for same-day or next-business-day dispatch. Contact our technical sales team at [email protected] or +86 18359293191 to confirm stock availability, request a proforma invoice, or discuss volume pricing for MRO stocking programs.
