KUKA KSD1-32 00-122-286 Original Industrial Spare KR C4

Product Overview

KUKA KSD1-32 00-122-286 Original Industrial Spare KR C4: System Stability and Maintenance Value

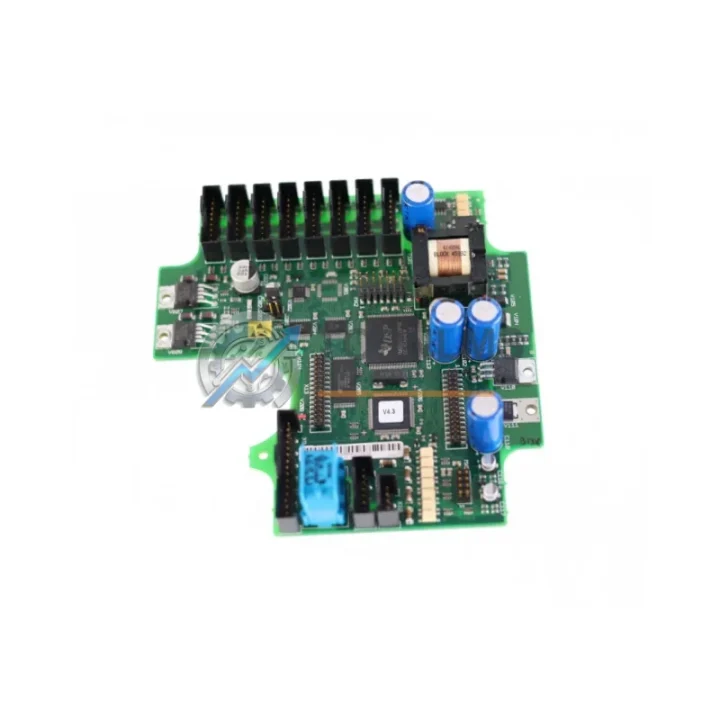

The KUKA KSD1-32 (Part No. 00-122-286) is an original servo drive module engineered for the KUKA KR C4 robot controller series — one of the most widely deployed robot control platforms in automotive, metal fabrication, electronics assembly, and general industrial manufacturing worldwide. In high-throughput production environments where robotic arms operate across multi-shift schedules, the servo drive is among the highest-stress components in the control cabinet. A failed KSD1-32 directly halts axis motion, triggering unplanned downtime that can cost thousands of dollars per hour. Maintaining a verified original spare on the shelf is the single most effective strategy to minimize mean time to repair (MTTR) and protect production continuity.

Unlike third-party alternatives that may require firmware modifications or parameter re-mapping, an original KUKA KSD1-32 installs as a direct plug-and-play replacement: remove the failed unit, seat the new module, restore power, and the KR C4 controller recognizes the drive automatically via the system bus. Every unit supplied by TOPNLMS is tested before shipment and covered by a 12-month warranty, giving procurement and maintenance managers the documentation trail required for ISO-compliant maintenance records.

Critical Technical Specs

Preventive Maintenance Strategy

A servo drive failure in a KUKA KR C4 system rarely occurs in isolation. The KSD1-32 operates within a tightly integrated control cabinet ecosystem, and experienced maintenance engineers know that when one drive shows signs of stress — elevated temperature alarms, axis position errors, or intermittent E-Stop faults — adjacent components deserve equal scrutiny during the same maintenance window.

During a planned shutdown or corrective maintenance visit, it is best practice to simultaneously inspect the KPP600-20 power supply module, which provides the DC bus voltage that feeds all KSD servo drives in the cabinet. A degraded power supply can cause cascading drive faults that are misdiagnosed as individual axis failures. Alongside the power supply, the CP1616 PROFINET communication module (00-111-230) should be checked for firmware version alignment and connector integrity, as PROFINET communication errors can manifest as axis timeout faults that mimic servo drive failures.

The controller board (00-146-124) — the central processing unit of the KR C4 cabinet — should be inspected for capacitor aging and thermal stress, particularly in high-ambient-temperature environments. Maintenance teams operating older KR C4 installations should also evaluate the condition of the KR C4 cabinet fan units and heat exchanger filters, as inadequate cooling is the leading cause of premature servo drive failure. These components are inexpensive relative to a KSD1-32 and should be treated as consumables in any annual maintenance budget.

For facilities running multi-robot cells, it is advisable to stock at least one KSD1-16 or KSD1-32 servo drive per robot model variant, along with a spare RDC (Resolver Digital Converter) board, which handles encoder signal processing for each axis. A failed RDC produces axis position errors that are frequently misattributed to the servo drive itself, leading to unnecessary drive replacements and extended diagnostic time. Similarly, the EDS (Electronic Data Storage) module — which stores robot-specific calibration data — should be backed up and a spare kept on hand to avoid recalibration delays after a controller board replacement.

For facilities using KUKA robots in welding, material handling, or palletizing applications, the KR C4 I/O module and fieldbus interface cards (DeviceNet, EtherNet/IP, or PROFIBUS depending on cell configuration) are additional components that should be included in the annual spare parts review. Proactive stocking of these components — rather than reactive emergency procurement — is the defining difference between a maintenance program that protects uptime and one that merely responds to failures after production has already stopped.

Strategic Replacement Solutions

The KUKA KSD1-32 00-122-286 is a direct original replacement for aging or failed servo drives in KR C4 series controllers. For facilities managing legacy KR C2 or KRC2 ed05 installations being migrated to KR C4 architecture, the KSD1-32 is part of the standardized drive family that supports this transition, reducing the number of unique spare part SKUs that maintenance teams must manage. This consolidation of spare parts inventory — fewer unique part numbers covering a broader installed base — directly reduces carrying costs and simplifies procurement workflows.

Sourcing original components eliminates the compatibility risk associated with counterfeit or grey-market parts, which may pass visual inspection but fail under load due to substandard capacitors, MOSFETs, or gate driver ICs. For facilities with ISO 9001 or IATF 16949 certification requirements, original parts with traceable documentation are a compliance necessity, not merely a preference. Every unit shipped from TOPNLMS is tested prior to dispatch, packaged with ESD protection, and covered by a 12-month warranty — providing the audit trail that quality management systems require.

For procurement teams managing multi-site operations, volume orders of KSD1-32 units alongside complementary components such as the KPP power supply module, CP1616 PROFINET card, and RDC board can be consolidated into a single purchase order, reducing administrative overhead and qualifying for volume pricing. Contact our technical team to discuss fleet-level spare parts planning and lead time commitments.

Support FAQ

Q1: Is the KSD1-32 (00-122-286) compatible with all KR C4 variants?
The KSD1-32 is designed for the standard KR C4 controller family, including KR C4, KR C4 compact, and KR C4 smallsize. Compatibility with specific robot models depends on the axis current rating. Please confirm your robot’s axis configuration and rated current requirements before ordering. Our technical team can assist with compatibility verification at no charge.

Q2: What testing is performed before shipment?
Each KSD1-32 unit undergoes functional testing prior to dispatch to verify power stage integrity, communication interface operation, and parameter storage. A test report is available upon request. All units are shipped with ESD-protective packaging to prevent transit damage to sensitive power electronics.

Q3: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or physical impact. Warranty claims are processed with return authorization; replacement or repair is completed within the agreed service window.

Q4: How should I plan spare parts inventory for a multi-robot KUKA cell?
For a cell with 4–8 KR C4 robots, industry best practice recommends stocking at minimum: 1× KSD1-32 per axis current rating variant in use, 1× KPP power supply module, 1× CP1616 PROFINET module, and 1× controller board (00-146-124). For cells with over 8 robots or 24/7 operation, increase buffer stock proportionally. Contact us for volume pricing on multi-unit spare parts kits tailored to your installed base.
