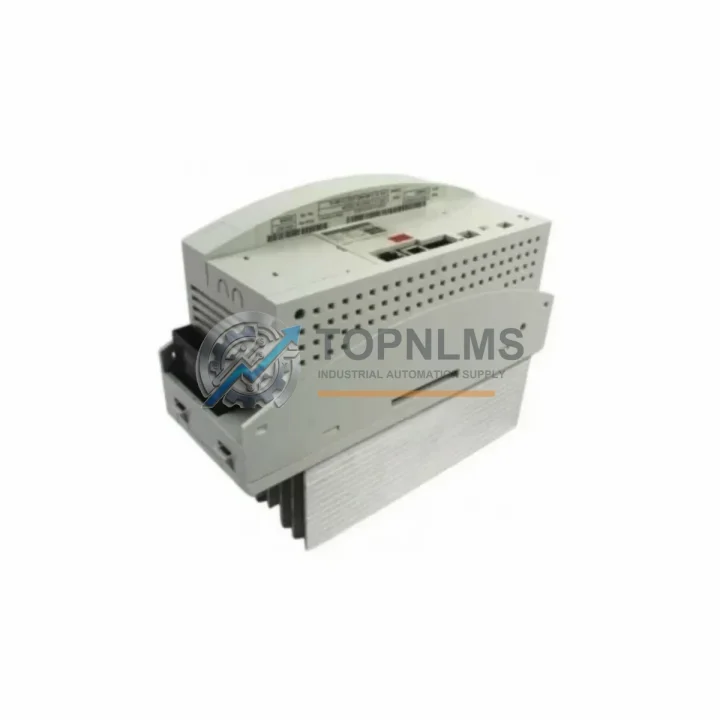

KUKA KSP600-3×40 Ruggedized Three-Axis Servo Drive Module

Product Overview

KUKA KSP600-3×40 Ruggedized Three-Axis Servo Drive Module: Industrial Resilience for the Harshest Environments

The KUKA KSP600-3×40 (Part No. 00-198-268) is a high-performance three-axis servo drive module engineered for continuous, fault-tolerant operation in demanding industrial environments. Designed as a core power electronics component within the KUKA KR C4 robot controller architecture, this module delivers precise, synchronized motion control across three servo axes simultaneously — making it indispensable in automotive body-in-white lines, heavy-duty palletizing cells, arc welding stations, and continuous-process manufacturing environments where unplanned downtime is simply not an option.

Built to KUKA’s stringent ruggedization standards, the KSP600-3×40 is rated for operation in environments characterized by elevated ambient temperatures, high humidity, airborne particulates, mechanical vibration, and electromagnetic interference (EMI). Its robust housing and internal shielding architecture ensure stable servo loop performance even when installed in close proximity to high-frequency variable frequency drives (VFDs), industrial power supplies, and large inductive loads — conditions that routinely compromise lesser drive hardware.

Rugged Specifications Table

Comprehensive Protection Solutions

The KSP600-3×40 does not operate in isolation — it is the servo power backbone of a tightly integrated control architecture. Within the KR C4 controller cabinet, it works in concert with the KUKA KPP600-20 power supply module, which conditions and distributes the DC bus voltage that feeds the KSP600 axes. The KUKA KSM (KUKA Servo Module) safety board provides STO (Safe Torque Off) and SS1 (Safe Stop 1) functions, ensuring that the servo axes can be brought to a safe state without full controller shutdown — a critical requirement in collaborative and semi-collaborative robot cells.

On the communication side, the KSP600-3×40 interfaces with the KUKA CCU (Cabinet Control Unit) and the KUKA KCB (KUKA Controller Bus) backplane via EtherCAT, enabling deterministic, low-latency position and torque commands. The KUKA RDC (Resolver Digital Converter) module handles encoder feedback from the robot’s joint resolvers, feeding real-time position data back to the KSP600 for closed-loop servo control. In multi-robot cells, the KUKA MxAutomation PLC interface or a Siemens SIMATIC S7-1500 PLC may serve as the supervisory controller, issuing motion programs and safety interlocks to the KR C4 system.

For cabinet-level protection, the KSP600-3×40 installation typically includes KUKA cabinet cooling units or third-party industrial heat exchangers to maintain the required ambient temperature envelope. Surge protection devices and EMC filters on the incoming AC supply — such as those from the KUKA KPS600 power supply series — further shield the servo drive electronics from grid-borne transients. In facilities with high dust or coolant mist exposure, the KR C4 cabinet’s IP54-rated enclosure option provides an additional barrier, keeping the KSP600-3×40 and its companion modules — including I/O modules, safety relays, and terminal blocks — clean and operational across multi-shift production schedules.

Application in Critical Infrastructure

In automotive body-in-white (BIW) manufacturing, the KSP600-3×40 drives the precision axes of KUKA spot-welding and material-handling robots operating in environments saturated with weld spatter, electromagnetic noise from welding transformers, and thermal cycling from furnace proximity. The module’s robust DC bus architecture and EtherCAT synchronization ensure sub-millisecond axis coordination, which is essential for maintaining weld quality and cycle time consistency across 24/7 production.

In oil and gas processing facilities and petrochemical plants, KUKA robots equipped with KSP600-3×40 drives are deployed in explosion-safe zones for drum handling, valve actuation assistance, and inspection tasks. While the KR C4 controller itself is typically located outside the hazardous zone, the drive module’s EMI resilience is critical given the high density of variable-speed motor drives, power cables, and radio-frequency equipment in these facilities.

In metallurgical and steel processing environments, the KSP600-3×40 supports robots performing ladle handling assistance, billet transfer, and surface inspection in areas with extreme radiant heat, heavy vibration from rolling mills, and pervasive iron oxide dust. The module’s thermal design margins and sealed connector interfaces allow sustained operation in these conditions without derating.

In water and wastewater treatment plants, KUKA automation systems using the KSP600-3×40 handle chemical dosing, filter media handling, and pipe inspection — environments where high humidity, chemical vapors, and continuous operation demands place a premium on drive module reliability and mean time between failures (MTBF).

In mining and mineral processing, the KSP600-3×40 supports robotic drilling assistance, ore sample handling, and conveyor-interface automation in environments with extreme dust loading, ground vibration, and wide temperature swings between surface and underground installations.
