KUKA 00-217-026 Original Industrial Spare KRC4 Compatible

Product Overview

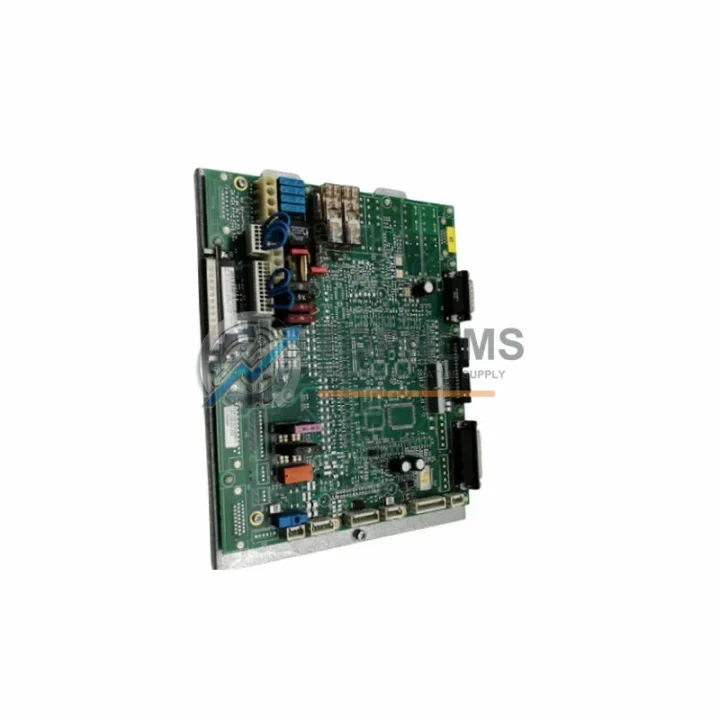

KUKA 00-217-026 KRC4 Main Control Board: System Stability & Industrial Spare Maintenance Value

The KUKA 00-217-026 is the original main control board for the KRC4 robot controller cabinet, serving as the central processing and communication hub for KUKA industrial robots across automotive, heavy manufacturing, and precision assembly environments. When this board fails or degrades, the entire robot cell goes offline — making rapid, verified replacement the single most critical factor in minimizing unplanned downtime. Sourcing a genuine 00-217-026 spare in advance is the most effective insurance policy for any facility running KRC4-based automation.

At TOPNLMS, every KUKA 00-217-026 unit is inspected, function-tested, and shipped with a 12-month warranty, giving maintenance engineers and procurement teams the confidence to stock this board as a live spare without risk. Whether you are managing a single robot cell or a multi-line production floor, having this board on the shelf eliminates the lead-time risk that turns a two-hour fault into a two-week shutdown.

Critical Technical Specs

Preventive Maintenance Strategy

The KUKA 00-217-026 main control board does not operate in isolation. It is the nerve center of the KRC4 cabinet, and its reliability depends directly on the health of every component it interfaces with. A disciplined preventive maintenance program should treat this board as part of a broader cabinet inspection cycle rather than a standalone replacement event.

During any scheduled KRC4 cabinet inspection, maintenance teams should simultaneously evaluate the KPS 600 power supply unit — the primary DC bus supplier to the control board. A degraded power supply delivering voltage ripple or transient spikes is one of the leading causes of premature control board failure. Stocking a spare KPS 600 alongside the 00-217-026 board is a widely adopted best practice in high-uptime facilities.

The KRC4 safety interface board (SIB) and resolver digital converter (RDC) modules are tightly coupled to the main control board through the internal EtherCAT bus. If the 00-217-026 is being replaced due to a communication fault, the SIB and RDC should be inspected for firmware version alignment and connector integrity before the new board is commissioned. Mismatched firmware between the main control board and the RDC is a common source of post-replacement faults that can be mistaken for a defective spare.

Cable harnesses — particularly the X11 system cable and X21 motor power cable — should be inspected for insulation wear, connector corrosion, and pin seating during any board replacement. A damaged cable that caused the original board failure will damage the replacement board if not addressed. Keeping a set of KRC4-compatible cable assemblies in the maintenance store is a low-cost measure that protects a high-value spare.

The KRC4 teach pendant (smartPAD) and its connection cable are also worth inspecting during a main board replacement, as communication errors between the pendant and the controller are sometimes misdiagnosed as board failures. Similarly, the KUKA KR C4 compact I/O module and any installed PROFINET or DeviceNet communication modules should be checked for secure seating and firmware compatibility after a main board swap.

For facilities running aging KRC4 installations, a proactive spare parts kit might reasonably include the 00-217-026 main control board, a KPS 600 power supply, an RDC module, a SIB board, a set of X11/X21 cable assemblies, and a smartPAD cable — covering the six most common failure points in a single procurement event. This approach dramatically reduces the mean time to repair (MTTR) for any KRC4 fault scenario and is strongly recommended for facilities where robot downtime carries significant production cost.

Strategic Replacement Solutions

The KUKA 00-217-026 is a direct OEM replacement for the KRC4 main control board. Unlike third-party alternatives or refurbished boards of uncertain provenance, a genuine 00-217-026 sourced from TOPNLMS carries full firmware compatibility with the existing KRC4 software stack — including KUKA System Software (KSS) 8.x — eliminating the risk of version mismatch that can prevent the controller from booting after replacement.

For facilities transitioning from older KRC2 or KRC3 controller generations, the KRC4 platform represents a significant architectural change. The 00-217-026 is not backward-compatible with KRC2 or KRC3 cabinets, but it is the correct board for all KRC4 variants including the compact and smallsize enclosures. Maintenance planners managing a mixed fleet should clearly segregate KRC4 spares from legacy controller spares to avoid field errors during emergency replacements.

Replacement of the 00-217-026 in the field typically requires a KSS backup restoration from the previous controller configuration. TOPNLMS recommends that all KRC4 operators maintain a current, verified KSS backup on an external USB drive stored with the spare board. This practice reduces commissioning time after replacement from several hours to under 30 minutes in most cases, and is the single most impactful procedural improvement available to KRC4 maintenance teams.

All units shipped by TOPNLMS are tested prior to dispatch, clearly labeled with the part number and serial reference, and packaged in anti-static ESD-safe materials to prevent transit damage. Express shipping via DHL, FedEx, or UPS is available for urgent replacement scenarios, with most destinations reached within 3–7 business days.

Support FAQ

Q1: Is the KUKA 00-217-026 compatible with all KRC4 controller variants?
Yes. The 00-217-026 main control board is compatible with the standard KRC4, KRC4 compact, KRC4 smallsize, and KRC4 extended controller enclosures. Compatibility with specific robot models (KR AGILUS, KR CYBERTECH, KR QUANTEC, etc.) is determined by the KSS software version loaded onto the board, not the hardware revision. Please confirm your KSS version before ordering if you have specific firmware requirements.

Q2: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Each unit is function-tested before shipment. The warranty does not cover damage caused by incorrect installation, voltage surges, or use outside the specified operating environment. Warranty claims are processed directly through TOPNLMS with a target response time of 48 hours.

Q3: How should I verify the board is the root cause of my KRC4 fault before ordering?
The most reliable diagnostic approach is to check the KRC4 error log via the smartPAD for fault codes referencing the CCU or MFC (main computer). Common indicators of main board failure include persistent communication timeouts on the EtherCAT bus, failure to complete the boot sequence, and loss of network connectivity to the controller. If the power supply (KPS 600) and cable harnesses have been ruled out, the main control board is the most probable cause.

Q4: Can I stock this board as a long-term spare without using it immediately?
Yes. The 00-217-026 is suitable for long-term storage as a live spare. Store the board in its original ESD-safe packaging in a dry environment between 0 °C and +40 °C, away from direct sunlight and electromagnetic interference sources. Boards stored under these conditions retain full functionality for 3–5 years. For facilities with multiple KRC4 robots, stocking one spare board per 5–8 robots is a commonly recommended inventory ratio in industrial maintenance planning.
