KUKA 00-169-213 Replacement for KRC4 Cabinet

Product Overview

KUKA 00-169-213 Replacement & Upgrade Solution for KRC4 Cabinet: Smooth Transition from Legacy Robot Controller Power Systems

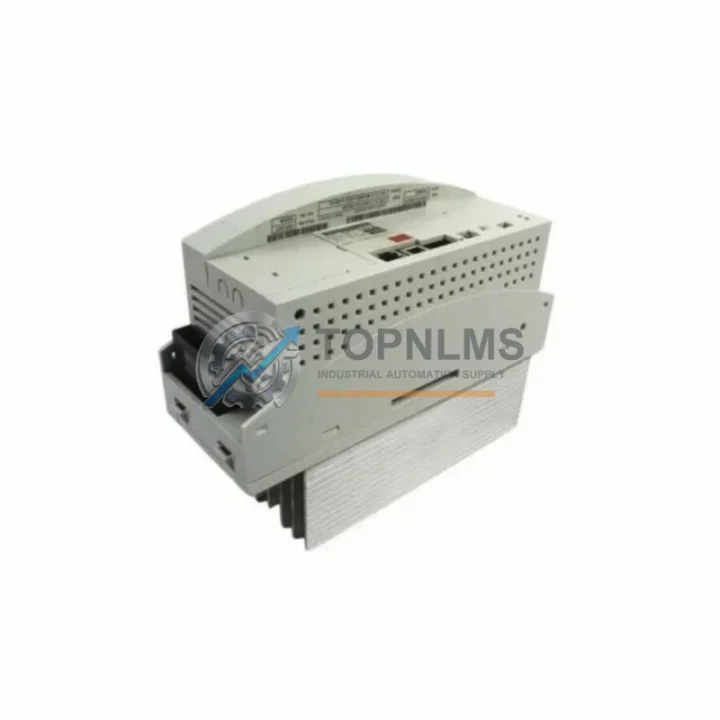

The KUKA 00-169-213 is a DC Power Module rated at 27V / 40A, designed specifically for the KRC4 robot controller cabinet. As KUKA’s KRC2 and early KRC4 installations age across automotive, metal fabrication, and general manufacturing facilities, the demand for reliable, drop-in replacement power modules has grown significantly. Whether you are managing a planned maintenance window or responding to an unplanned shutdown, the 00-169-213 provides a verified, compatible upgrade path that minimizes engineering effort and downtime.

This module serves as a direct replacement for worn or failed DC bus power supplies within the KRC4 cabinet architecture. It integrates seamlessly with the KRC4’s internal backplane, maintaining the original 27V DC output rail that powers the controller’s logic boards, safety circuits, and communication interfaces. Field engineers familiar with the KRC4 platform will recognize the standard DIN-rail mounting footprint and the existing wiring harness connectors, which remain fully compatible — no rewiring of the cabinet is required in most standard retrofit scenarios.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful KRC4 power module replacement rarely involves a single component in isolation. In practice, field engineers undertaking a cabinet-level retrofit or emergency repair will often assess the condition of adjacent modules simultaneously. The KRC4 cabinet’s internal architecture groups the power supply, safety controller, and I/O infrastructure in close proximity, meaning a degraded 00-169-213 may have caused stress on neighboring components.

During the replacement process, it is common to inspect or simultaneously replace the KUKA KPS-600 (KRC4 primary power supply unit), which provides the AC-to-DC conversion upstream of the 00-169-213’s DC distribution rail. If the KPS-600 has been operating under marginal conditions, replacing both units during the same maintenance window eliminates the risk of a secondary failure shortly after the initial repair.

The KUKA KRC4 KSP 600-20 servo power module is another component frequently evaluated during KRC4 modernization projects. As the servo drives depend on a stable DC bus, any instability in the 00-169-213’s output can manifest as axis faults or erratic motion behavior. Replacing the DC power module in conjunction with a servo drive audit ensures the entire power chain is validated before returning the robot to production.

For facilities migrating from KRC2 to KRC4 architecture, the transition also involves updating the KUKA KRC4 ESC (Electronic Safety Controller) board and the associated RDC (Resolver Digital Converter) module. These components communicate over the KRC4’s internal EtherCAT bus, and their correct operation depends on a stable 27V supply — precisely what the 00-169-213 is designed to deliver. Ensuring the new power module is properly seated and the EtherCAT topology is intact before commissioning is a standard step in the KRC4 migration checklist.

The KUKA SmartPAD teach pendant and its cable assembly (typically the 00-168-334 or equivalent KRC4 pendant cable) draw power and communication signals through the KRC4 cabinet’s internal distribution. A stable DC power module is a prerequisite for reliable pendant operation, particularly during the post-replacement commissioning phase where technicians rely on the pendant for axis jogging, program verification, and safety acknowledgment.

In applications where the KRC4 cabinet interfaces with external safety PLCs or field bus networks — such as a SIEMENS S7-300 or S7-1500 safety controller communicating via PROFINET — the power module’s stability directly affects the integrity of the safety handshake signals. Customers integrating KUKA robots into SIEMENS TIA Portal-based safety architectures should verify that the replacement 00-169-213 meets the original voltage tolerance specifications to avoid nuisance safety faults during restart.

For KRC4 cabinets equipped with optional KUKA.ProfiNet or KUKA.EthernetIP communication boards, the fieldbus interface cards are powered from the same 27V DC rail. Replacing the 00-169-213 restores stable power to these communication modules, which is often the root cause of intermittent fieldbus disconnections that are misdiagnosed as network infrastructure issues.

Finally, customers performing a broader KRC4 cabinet overhaul may also address the KUKA KRC4 fan assembly and cabinet filter mats during the same service interval. While these are not electronic modules, their condition directly affects the thermal environment in which the 00-169-213 operates. Replacing the power module in a cabinet with blocked airflow will shorten the new module’s service life — a point worth noting in any retrofit guidance documentation.

Retrofit Guidance FAQ

Q: Is the 00-169-213 a direct drop-in replacement without any wiring changes?
A: In the vast majority of KRC4 cabinet configurations, yes. The module uses the standard KRC4 harness connectors and DIN-rail mounting points. No cabinet modification or rewiring is required. Always verify the cabinet variant (standard KRC4, KRC4 compact, or KRC4 smallsize) against the module’s datasheet before installation.

Q: Do I need to update the KRC4 software or robot program after replacing this module?
A: No software or program changes are required. The 00-169-213 is a hardware power supply module with no firmware or parameterization. After physical replacement, the KRC4 controller will resume normal operation on the next power cycle. A standard safety acknowledgment via the SmartPAD may be required depending on the robot’s safety configuration.

Q: Is this module compatible with KRC4 compact and KRC4 smallsize variants?
A: The 00-169-213 is designed for the KRC4 platform family. Compatibility with KRC4 compact and KRC4 smallsize should be verified against the specific cabinet’s BOM (Bill of Materials) or the KUKA service documentation for your robot model. Contact TOPNLMS with your robot serial number for confirmation.

Q: What communication protocols does the KRC4 support, and does this module affect them?
A: The KRC4 natively supports EtherCAT for internal axis communication and can be equipped with PROFINET, EtherNet/IP, or DeviceNet fieldbus options. The 00-169-213 powers the internal communication infrastructure. Replacing a failed module typically resolves intermittent fieldbus disconnections caused by voltage instability on the 27V DC rail.

Q: How do I verify the module is functioning correctly after installation?
A: After installation, power on the KRC4 cabinet and monitor the DC bus voltage via the KRC4’s diagnostic interface or a calibrated multimeter at the test points. The output should stabilize at 27V ±tolerance as specified in the KUKA service manual. No axis faults related to power supply should appear on the SmartPAD after a successful replacement.

Q: Can this module be used as a spare for preventive maintenance stock?
A: Yes. Given the criticality of the KRC4 power module in production environments, maintaining one or two units as on-site spares is a common practice in automotive and heavy manufacturing facilities. TOPNLMS can supply multiple units with consistent batch quality and documentation.

Warranty Assurance

Every KUKA 00-169-213 DC Power Module supplied by TOPNLMS is covered by a 12-Month Warranty from the date of shipment. Prior to dispatch, each unit undergoes functional testing to verify output voltage, current capacity, and connector integrity. This pre-shipment inspection process is designed to eliminate DOA (Dead on Arrival) failures and give procurement engineers confidence in the quality of the replacement part.

In the event of a warranty claim, TOPNLMS provides a straightforward replacement support process. Customers are asked to document the fault condition and return the defective unit. Upon receipt and verification, a replacement module is dispatched promptly to minimize production impact. Our after-sales response target is within 24 business hours for warranty inquiries.

For B2B customers managing multiple robot installations or operating in industries with strict uptime requirements, TOPNLMS offers volume purchasing options with consistent lead times and batch traceability documentation. All units are shipped with appropriate ESD-protective packaging and are accompanied by a basic inspection report upon request.

Procurement teams can rely on TOPNLMS as a stable supply chain partner for KUKA KRC4 spare parts, with inventory maintained in Xiamen and the ability to ship globally via DHL, FedEx, or customer-nominated freight forwarders.
