SEMIKRON SEMIX353GB126V1 Ruggedized IGBT Module

Product Overview

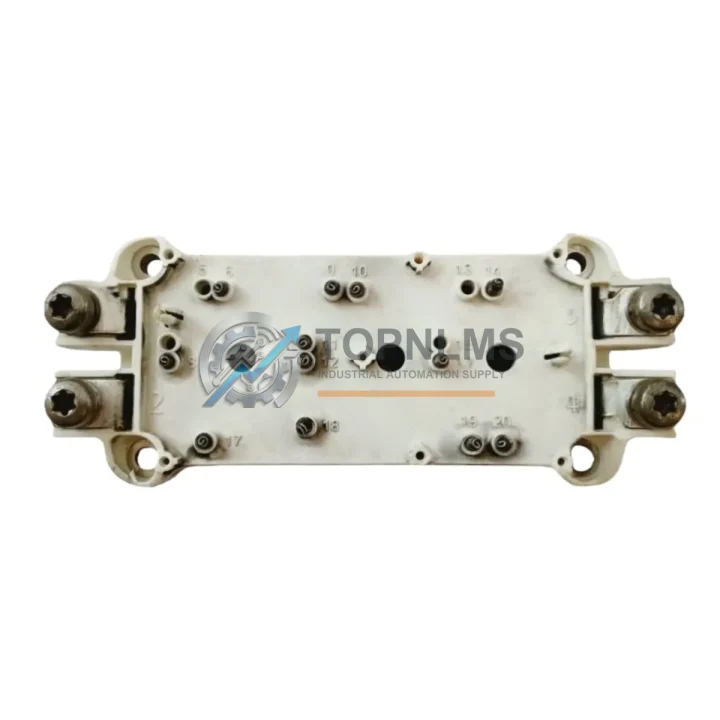

SEMIKRON SEMIX353GB126V1 Ruggedized IGBT Module: Industrial Resilience for Harsh Environments

The SEMIKRON SEMIX353GB126V1 is a high-performance dual IGBT half-bridge power module engineered for continuous, reliable operation in the most demanding industrial environments. Rated at 1200V / 353A and built on SEMIKRON’s proven SEMiX platform, this module delivers exceptional switching efficiency, thermal stability, and electromagnetic immunity — making it the preferred choice for engineers designing mission-critical power conversion systems in heavy industry, process automation, and safety-classified installations.

Whether deployed in variable-speed drives, regenerative braking systems, UPS infrastructure, or high-power inverter stacks, the SEMIX353GB126V1 maintains stable gate-drive response and low conduction losses even under sustained thermal stress, high-humidity exposure, and vibration-intensive mechanical environments. Its robust press-fit base plate and optimized chip layout ensure uniform current distribution across all operating conditions, reducing the risk of localized thermal runaway that can compromise system uptime in continuous production lines.

For procurement engineers and maintenance teams managing spare-parts inventories in oil & gas, mining, power generation, water treatment, metallurgy, and chemical processing facilities, the SEMIX353GB126V1 represents a direct-fit, specification-matched replacement for aging or failed IGBT modules — minimizing unplanned downtime and eliminating costly custom re-engineering.

Rugged Specifications Table

Comprehensive Protection Solutions

In a fully integrated industrial power and control architecture, the SEMIX353GB126V1 operates as the core switching element within a broader ecosystem of protection and control components. Reliable system performance depends on the coordinated function of every layer in the control cabinet.

At the gate-drive level, the module pairs directly with SEMIKRON’s SKHI22A and SKHI61R gate driver units, which provide short-circuit protection, desaturation detection, and isolated drive signals essential for safe IGBT switching in high-power applications. These drivers are specifically characterized for SEMiX-series modules and eliminate the need for custom gate-drive design.

On the DC bus side, the SEMIX353GB126V1 is typically supported by SEMIKRON SKiiP series intelligent power modules or external DC link capacitor banks that buffer voltage transients during fast switching events. In multi-axis servo systems, the module may share a common DC bus with SEMIKRON SEMIPACK rectifier modules, which convert incoming three-phase AC to the regulated DC rail that feeds the IGBT half-bridge.

For overcurrent and short-circuit protection upstream of the module, semiconductor-rated fuses (such as those from the Bussmann 170M series) are standard practice in industrial drive panels. These fuses are selected to coordinate with the IGBT’s I²t rating, ensuring the fuse clears before the module sustains damage during fault conditions.

Thermal management is equally critical. The SEMIX353GB126V1 is mounted on liquid-cooled or forced-air heatsinks — often paired with SEMIKRON SKWin or equivalent thermal interface materials — to maintain junction temperatures within safe operating limits during continuous full-load operation in ambient temperatures up to 50°C, as commonly encountered in outdoor switchgear enclosures or poorly ventilated machine rooms.

At the control layer, the module interfaces with Siemens SINAMICS or ABB ACS880 drive controllers, or with custom PLC-based motion controllers using Beckhoff EtherCAT I/O terminals for real-time feedback and fault monitoring. Safety-rated Pilz PNOZ or Siemens SIRIUS 3SK safety relay modules are commonly integrated into the same control cabinet to enforce SIL 2 / PLd safe-stop functions, ensuring the IGBT stage is reliably de-energized during emergency stop events.

Communication between the drive system and the plant DCS is typically handled via PROFIBUS DP or PROFINET communication modules, enabling real-time monitoring of drive status, fault codes, and thermal data — all of which contribute to predictive maintenance strategies that extend the service life of power modules like the SEMIX353GB126V1.

Application in Critical Infrastructure

The SEMIKRON SEMIX353GB126V1 is deployed across a wide range of critical industrial sectors where power conversion reliability is non-negotiable.

In oil and gas facilities — including offshore platforms, pipeline compression stations, and LNG terminals — variable-frequency drives incorporating SEMiX IGBT modules control high-power pump and compressor motors. These environments demand modules that can withstand salt-laden air, wide temperature swings, and continuous vibration from rotating machinery. The SEMIX353GB126V1’s robust construction and high isolation voltage make it well-suited for use in Zone 2 classified areas when installed within appropriately rated enclosures.

In mining and mineral processing operations, conveyor drives, hoist systems, and ball mill drives rely on multi-megawatt variable-speed drive systems built around high-current IGBT modules. The SEMIX353GB126V1’s 353A continuous rating and 1200V blocking capability make it a practical building block for medium-voltage drive topologies using series-connected half-bridge cells.

In power generation and grid infrastructure — including wind turbine converters, solar farm inverters, and STATCOM reactive power compensators — the SEMiX platform’s low switching losses directly translate to higher system efficiency and reduced cooling requirements, lowering the total cost of ownership over the module’s operational lifetime.

In water and wastewater treatment plants, pump drives operating 24/7 in high-humidity environments benefit from the module’s wide operating temperature range and compatibility with conformal-coated drive assemblies. Unplanned pump failures in water treatment can have serious public health consequences, making the availability of tested, warranted spare modules a critical procurement priority.

In metallurgy and steel production, rolling mill drives and arc furnace power supplies subject IGBT modules to extreme electrical stress — including high di/dt transients, asymmetric loading, and frequent regenerative braking cycles. The SEMIX353GB126V1’s optimized chip design and low stray inductance package minimize overvoltage spikes during turn-off, protecting the module and the broader drive system from premature failure.
