Pepperl+Fuchs KCD2-STC-1 Ruggedized Isolated Barrier Module

Product Overview

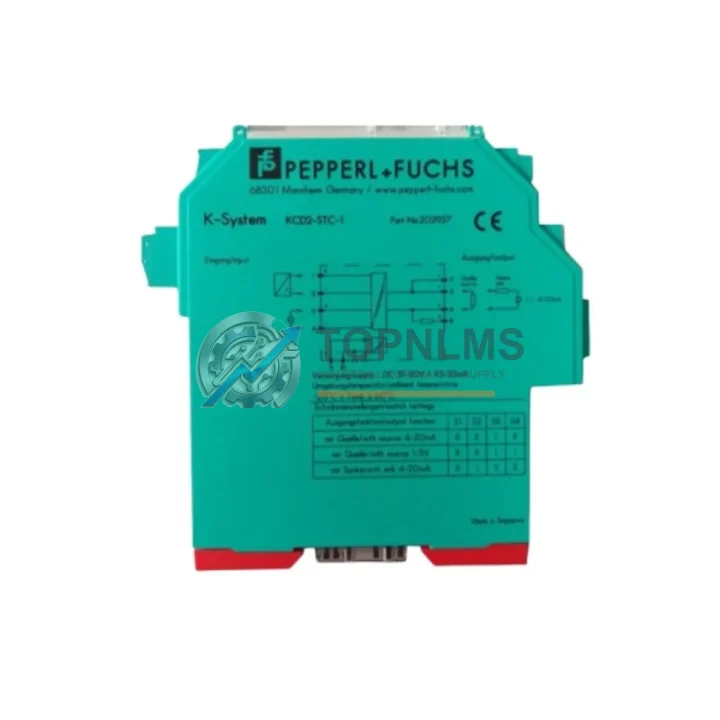

Pepperl+Fuchs KCD2-STC-1 Ruggedized Isolated Barrier Module: Industrial Resilience for Harsh Environments

The Pepperl+Fuchs KCD2-STC-1 is a precision-engineered isolated barrier transmitter power supply designed to deliver uncompromising signal integrity and galvanic isolation in the most demanding industrial environments. Built on the proven KCD2 Series platform — Pepperl+Fuchs’ flagship DIN-rail-mounted intrinsic safety barrier family — the KCD2-STC-1 is purpose-built for continuous operation in hazardous locations, high-EMI zones, and safety-critical process control loops where signal fidelity and personnel protection are non-negotiable.

In petrochemical refineries, offshore platforms, and chemical processing plants, field instruments such as pressure transmitters, temperature sensors, and flow meters must communicate reliably with control systems across the Zone 0/Zone 1 boundary. The KCD2-STC-1 provides the galvanic isolation and NAMUR-compatible 4–20 mA signal conditioning that bridges intrinsically safe field circuits with safe-area DCS and PLC systems — including Siemens SIMATIC S7 series controllers, ABB System 800xA, and Honeywell Experion PKS — without introducing ground loops or compromising explosion protection.

Rugged Specifications Table

Comprehensive Protection Solutions

The KCD2-STC-1 does not operate in isolation — it is a critical node within a layered protection architecture. In a typical hazardous-area control cabinet, it works in concert with the Pepperl+Fuchs KFD2-STC4-Ex1 SMART Transmitter Power Supply for HART-enabled field devices, and the KCD2-SR-2 Switch Amplifier for discrete NAMUR sensor inputs such as proximity switches and level detectors. The KCD2 power bus system, fed by the KCD2-PW-Ex1 Power Supply Module, distributes 24 V DC across the entire barrier rail, eliminating individual wiring runs and simplifying cabinet layout.

For process loops requiring redundancy or SIL-rated safety functions, the KCD2-STC-1 is frequently paired with Pepperl+Fuchs KFD2-SCD-Ex1.LK Safety Barriers and integrated into Safety Instrumented Systems (SIS) alongside Pilz PNOZ safety relays or Siemens ET 200SP F-modules. Communication between the safe-area DCS and field devices is often routed through Pepperl+Fuchs FieldConnex PA Segment Couplers or PROFIBUS PA / FOUNDATION Fieldbus H1 segment conditioners, with the KCD2-STC-1 providing the intrinsic safety barrier for analog 4–20 mA fallback loops.

In control cabinets serving continuous production lines — such as those found in ethylene crackers, LNG terminals, or pharmaceutical batch reactors — the KCD2-STC-1 is mounted alongside Phoenix Contact QUINT Power 24 V DC power supplies, Weidmüller WTR terminal blocks, and Siemens SIMATIC ET 200M I/O modules. This combination ensures that every signal path from field sensor to PLC input card is galvanically isolated, surge-protected, and compliant with IEC 60079 explosion protection requirements. The module’s compact 12.5 mm DIN-rail footprint allows high-density barrier installations without sacrificing thermal headroom or maintenance access.

Application in Critical Infrastructure

In upstream oil and gas operations — wellhead control panels, HIPPS (High Integrity Pressure Protection Systems), and subsea topside interfaces — the KCD2-STC-1 is a standard component for transmitting pressure and differential pressure signals from Zone 1 field instruments to safe-area SCADA systems. Its 3-way galvanic isolation eliminates ground potential differences that are endemic to large-scale pipeline installations, preventing measurement errors and protecting sensitive PLC analog input cards.

In coal and hard-rock mining environments, where vibration, dust ingress, and wide temperature swings are constant, the KCD2-STC-1’s robust PCB construction and conformal coating options ensure long-term reliability in underground substations and surface control rooms. Mining operations running continuous conveyor systems, ventilation fans, and hoisting equipment depend on uninterrupted 4–20 mA signal chains — any barrier failure can trigger costly production stoppages. Stocking the KCD2-STC-1 as a critical spare reduces mean time to repair (MTTR) from days to minutes.

In power generation and grid infrastructure — including coal-fired boilers, gas turbine control systems, and hydroelectric plant instrumentation — the KCD2-STC-1 provides the isolation barrier between high-voltage plant environments and low-voltage DCS analog inputs. Its compliance with EN 61326-1 EMC standards ensures stable signal transmission even in the presence of strong electromagnetic fields generated by large transformers, switchgear, and variable frequency drives (VFDs).

Water and wastewater treatment facilities operating chlorination dosing systems, pump stations, and SCADA-monitored distribution networks rely on the KCD2-STC-1 to safely interface field-mounted pH, flow, and level transmitters with central control systems. In these environments, the module’s IP20 rating combined with installation in IP54 or IP65 stainless steel enclosures provides the environmental protection required for outdoor and semi-outdoor installations.
