IXYS MCC95-16IO1B Replacement Upgrade for MCC Series

Product Overview

IXYS MCC95-16IO1B Replacement Upgrade for MCC Series: Seamless Transition from Legacy SCR Systems

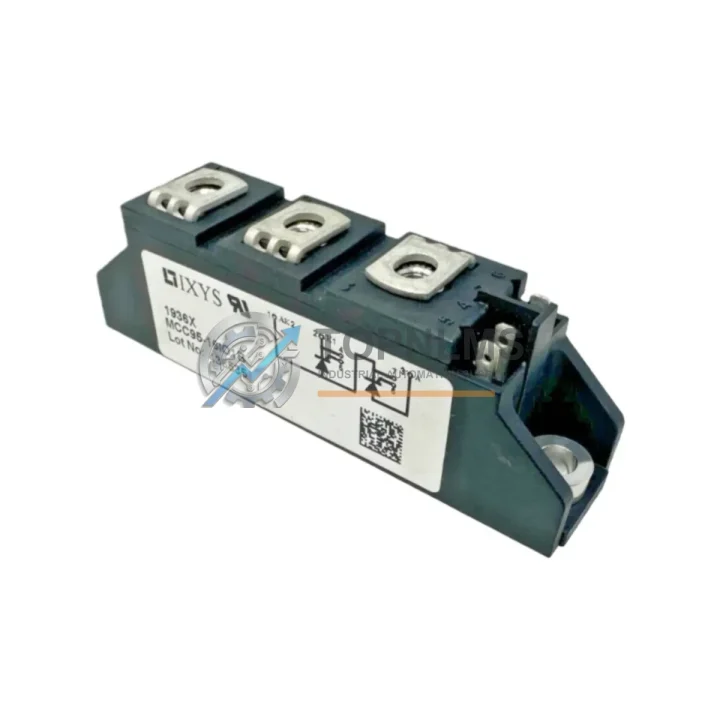

The IXYS MCC95-16IO1B is a high-performance thyristor (SCR) module rated at 95A continuous current and 1600V repetitive peak off-state voltage. Designed for demanding industrial power control applications, this module is the authoritative drop-in replacement and upgrade solution for aging or discontinued MCC Series thyristor assemblies deployed across AC motor drives, soft starters, resistance welding controllers, DC power supplies, and industrial heating systems.

When your existing control cabinet relies on legacy IXYS MCC Series SCR modules — such as the MCC95-12IO1B (1200V variant), MCC72-16IO1B, or MCC56-16IO1B — migrating to the MCC95-16IO1B delivers a measurable improvement in voltage headroom and thermal margin without requiring mechanical redesign. The module’s industry-standard TO-240AA (Jedec) package footprint ensures direct physical compatibility with existing heatsink assemblies and mounting hardware, dramatically reducing retrofit labor and downtime.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration from a legacy SCR-based power control system to the MCC95-16IO1B rarely involves a single component swap. In practice, field engineers undertaking a full retrofit will also evaluate the surrounding power stack and control architecture. The thyristor module operates within a broader assembly that typically includes a snubber RC network and gate pulse transformer — both of which should be inspected and replaced if aged. The firing board or phase-angle controller that drives the gate signal must be verified to deliver adequate gate trigger current; units such as the IXYS IXDP630 or equivalent SCR firing card are commonly used in tandem with MCC Series modules and remain compatible with the MCC95-16IO1B’s gate characteristics.

On the AC input side, the module is frequently paired with a DC bus capacitor bank and an input line reactor or AC choke to suppress harmonic distortion and protect the thyristor junction from dV/dt stress. When upgrading from a lower-voltage MCC95-12IO1B to the 1600V-rated MCC95-16IO1B, the increased voltage class provides additional margin against line transients, which is particularly valuable in installations fed from medium-voltage transformers or long cable runs.

For systems that incorporate a full thyristor bridge — such as a three-phase fully controlled rectifier — the MCC95-16IO1B is typically deployed in sets of six modules. Engineers should plan to replace all six simultaneously to ensure matched forward voltage drop (VT) characteristics and balanced current sharing. Companion modules from the same MCC Series production batch are recommended. In soft-starter applications, the anti-parallel thyristor pair configuration means the MCC95-16IO1B may be used alongside a bypass contactor; the contactor’s coil control wiring and interlock logic should be verified during commissioning.

Control system integration is equally important. Many legacy installations use a SIEMENS SIMOREG or ABB DCS800 DC drive controller that interfaces with the SCR stack via analog firing angle commands. The MCC95-16IO1B is fully compatible with these architectures — no firmware changes are required on the drive controller side. Similarly, installations using a Eurotherm 590+ or equivalent thyristor power controller will find the MCC95-16IO1B a transparent replacement. For systems with a PLC-based supervisory layer — such as a Siemens S7-300 or Allen-Bradley ControlLogix — the PLC program logic governing the enable/disable interlock and fault monitoring does not require modification, as the module’s electrical interface is unchanged.

Finally, thermal management should be reassessed during any MCC Series retrofit. The MCC95-16IO1B’s junction-to-case thermal resistance (RthJC) is specified at 0.20°C/W per thyristor. If the existing heatsink was sized for a lower-current module, a thermal audit using an infrared camera during load testing is advisable. Thermal interface material (TIM) — typically a silicone-based compound or graphite pad — should be renewed at installation to ensure optimal heat transfer and long-term reliability.

Retrofit Guidance FAQ

Q: Can I reuse existing AC power wiring when replacing with MCC95-16IO1B?
A: Yes. The MCC95-16IO1B uses the same TO-240AA package with identical anode and cathode terminal positions. Existing bus bar connections and cable lugs can be reused without modification, provided conductor cross-sections are rated for 95A continuous.

Q: Do I need to modify my SCR firing board or gate drive circuit?
A: No modification is required for standard SCR gate drive circuits. The MCC95-16IO1B’s gate trigger current (IGT ≤150mA) and gate trigger voltage (VGT ≤3V) are within the output capability of all standard phase-angle firing boards. Verify gate pulse width is ≥10µs for reliable triggering under inductive load conditions.

Q: Is the MCC95-16IO1B compatible with my existing heatsink?
A: Yes, provided the heatsink was designed for the TO-240AA (Jedec) footprint. The module’s mounting hole pattern and base dimensions are identical to other MCC Series modules. Apply fresh thermal interface compound and torque the M6 mounting screws to the specified value (typically 3–4 Nm) to ensure proper thermal contact.

Q: Will my PLC program or drive controller firmware need updating?
A: No. The MCC95-16IO1B is a passive power semiconductor. It has no digital interface and does not interact with PLC programs or drive firmware. The only commissioning step is verifying gate trigger signal integrity and confirming correct firing angle under no-load and full-load conditions.

Q: How do I verify correct installation before returning the system to service?
A: Perform a cold insulation resistance test (≥500MΩ at 500VDC between anode/cathode and heatsink). Then apply gate trigger pulses at reduced firing angle with the load disconnected to confirm forward conduction. Gradually increase load while monitoring module case temperature with an infrared thermometer. Confirm case temperature remains below 90°C at full rated load.

Q: What if my original module was a dual SCR (anti-parallel) configuration?
A: The MCC95-16IO1B is a single SCR (unidirectional) module. For anti-parallel (AC control) applications, two MCC95-16IO1B units are required per phase, connected inverse-parallel. This is the standard configuration for AC power controllers and soft starters using MCC Series modules.

Warranty Assurance

Every IXYS MCC95-16IO1B unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each module undergoes outgoing quality inspection including visual examination, gate trigger verification, and forward/reverse blocking voltage confirmation. Units are shipped in anti-static packaging with individual identification labels traceable to the production batch.

In the event of a confirmed warranty claim — defined as a module failure under normal operating conditions within the warranty period — TOPNLMS will arrange priority replacement shipment. Our technical support team is available to assist with failure analysis documentation, which is often required for insurance or maintenance record purposes in regulated industries.

For time-critical plant shutdowns, we maintain buffer stock of MCC Series thyristor modules to support same-day or next-business-day dispatch from our Xiamen warehouse. Express courier options (DHL, FedEx, UPS) are available for international destinations. Domestic China shipments are dispatched via SF Express with tracking provided at time of shipment confirmation.

Procurement teams requiring formal documentation — including test reports, material certificates, or customs invoices — should specify requirements at time of order. We support NET30 terms for qualified industrial accounts and accept T/T bank transfer, PayPal, and trade finance instruments for international orders.
