IXYS MCD255-16I01 Replacement/Upgrade Solution for MCD Series

Product Overview

IXYS MCD255-16I01 Replacement/Upgrade Solution for MCD Series: Smooth Transition & Legacy System Compatibility

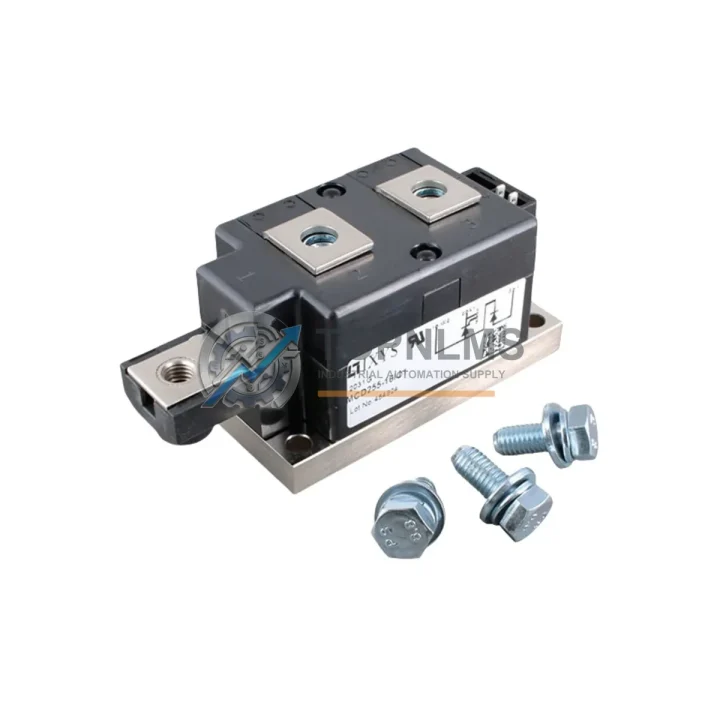

The IXYS MCD255-16I01 is a high-power thyristor/diode combination module rated at 1600V / 255A in a Y1-CU package, widely deployed in industrial AC/DC converters, soft-starters, motor drive front-ends, and regenerative braking systems. As legacy drive platforms age and OEM support for discontinued power modules becomes increasingly scarce, plant engineers and procurement teams face mounting pressure to source verified replacements that maintain electrical compatibility without requiring full system redesign.

This product page is specifically structured to support migration, retrofit, and direct replacement of the MCD255-16I01 and functionally equivalent modules across IXYS MCD-series platforms. Whether you are replacing a failed unit in a running production line or proactively stocking critical spares to reduce unplanned downtime, TOPNLMS provides factory-tested modules with full traceability and a 12-month warranty.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful MCD255-16I01 replacement rarely involves the power module alone. In practice, field engineers undertaking a retrofit or emergency swap will also inspect and often replace adjacent components to ensure system reliability. During the upgrade process, the following components are commonly evaluated alongside the MCD255-16I01:

The thyristor firing board (gate driver PCB) that interfaces with the SCR gate terminal should be verified for output pulse amplitude and timing — particularly if the original module failed due to gate overdrive or misfiring. In multi-pulse rectifier configurations using the IXYS MCD310-16I01 or MCD255-14I01 in parallel or series stacks, all modules in the same phase leg should be inspected simultaneously to avoid asymmetric conduction.

The DC bus capacitor bank and associated snubber RC networks mounted on the power bus bar are frequently replaced during a module swap, as capacitor degradation is a common co-failure mode in high-current rectifier bridges. Similarly, the DC fuse assembly — typically a semiconductor-grade fast-acting fuse such as those in the Bussmann 170M or Ferraz Shawmut A50 series — must be inspected and replaced if the original module failed under fault conditions.

For systems using a control cabinet with a dedicated thyristor power controller (e.g., Eurotherm, Watlow, or equivalent SCR power controller), the control signal wiring from the firing board to the MCD255-16I01 gate terminals should be re-verified for correct polarity and shielding integrity. In retrofit scenarios where the original IXYS PSD95-16 or VHF37 series rectifier diodes are also aging, replacing them concurrently with the MCD module eliminates a second service call.

Where the application involves a regenerative DC drive or a four-quadrant converter, the anti-parallel thyristor arm — often populated with an IXYS MCC255-16I01 or equivalent inverse-parallel SCR module — should be cross-checked for gate leakage and forward blocking integrity. Procurement teams are advised to order a matched spare set covering both the rectifier and inverter arms to maintain a complete on-site buffer stock.

Finally, the heatsink assembly, including any forced-air cooling fan, thermal sensors, and mounting hardware, should be cleaned and inspected. Thermal interface material between the MCD255-16I01 copper base and the heatsink surface must be renewed with a fresh application of high-conductivity thermal compound to ensure rated junction-to-case thermal resistance is achieved after reinstallation.

Retrofit Guidance FAQ

Q: Is the MCD255-16I01 a direct drop-in replacement for the MCD255-14I01?
A: Yes. The 16I01 suffix denotes a 1600V VRRM rating versus 1400V for the 14I01. The physical footprint, terminal layout, and current rating are identical. Upgrading to the 1600V variant provides additional voltage margin, which is beneficial in networks with transient overvoltage events.

Q: Do I need to modify the gate driver or firing board?
A: No. The MCD255-16I01 uses a standard SCR gate/cathode interface fully compatible with existing IXYS MCD-series firing boards. Gate trigger current and voltage requirements are within the same range as the original module.

Q: Can this module be used in a three-phase bridge rectifier?
A: Yes. The Y1 topology (one thyristor + one diode in a single package) is specifically designed for use in three-phase half-controlled bridge configurations. Six modules of this type form a complete three-phase fully controlled bridge.

Q: What are the physical installation requirements?
A: Mount to a flat heatsink surface using the specified torque (refer to IXYS datasheet). Apply fresh thermal compound. Reconnect anode, cathode, and gate terminals per the original wiring diagram. No new mounting holes or bracket modifications are required.

Q: What communication protocols or bus systems are involved?
A: The MCD255-16I01 is a passive power semiconductor — it does not participate in digital communication protocols (Profibus, Modbus, EtherNet/IP, etc.). Control is entirely via analog gate trigger signals from the firing board. No PLC program changes are required for a like-for-like replacement.

Q: How do I verify the replacement module before energizing the system?
A: Use a semiconductor curve tracer or a basic SCR tester to verify forward blocking voltage, gate trigger current, and holding current before installation. Each unit shipped by TOPNLMS has passed outgoing electrical inspection.

Warranty Assurance

Every IXYS MCD255-16I01 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of shipment. Our pre-shipment inspection process includes visual examination, electrical parameter verification, and packaging integrity checks to ensure the module arrives in full working condition.

In the event of a confirmed defect within the warranty period, TOPNLMS will arrange a replacement unit or issue a credit note — whichever resolution best minimizes your downtime. Our after-sales response target is within 24 business hours of a warranty claim submission.

We maintain buffer stock of high-demand MCD-series modules to support rapid dispatch. Standard orders are processed and shipped within 1–3 business days from our Xiamen warehouse. Express international shipping options are available for urgent breakdown situations.

For procurement teams managing critical spare parts programs, we offer batch quotations, certificate of conformance documentation, and packing list customization to meet your incoming inspection and ERP receiving requirements.
