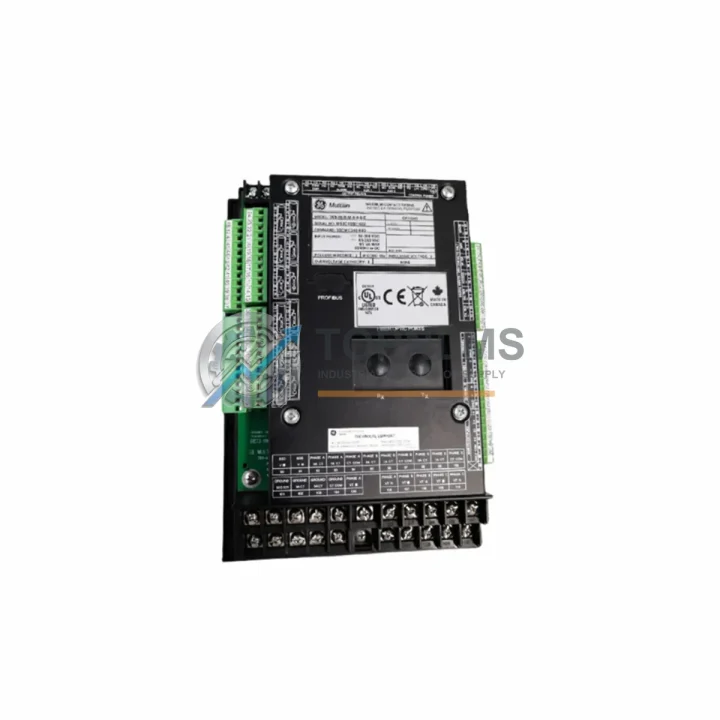

GE IS200DSPXH2BEB Replacement for Mark VI DSP

Product Overview

GE IS200DSPXH2BEB Replacement for Mark VI DSP: Smooth Transition from Legacy Control Systems

The GE IS200DSPXH2BEB is a Digital Signal Processing (DSP) control board designed for the GE Mark VI Turbine Control System — one of the most widely deployed gas and steam turbine control platforms in power generation, oil & gas, and heavy industrial facilities worldwide. As GE progressively phases out Mark VI hardware in favor of the Mark VIe platform, many plant operators face the critical challenge of sourcing reliable, tested replacement boards to sustain existing Mark VI installations without committing to a full control system overhaul.

At TOPNLMS, we maintain ready stock of the IS200DSPXH2BEB to support emergency replacements, planned maintenance outages, and phased migration projects. Every unit is functionally tested prior to shipment, backed by a 12-month warranty, and dispatched from our Xiamen warehouse with full export documentation to minimize customs clearance delays for international buyers.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful IS200DSPXH2BEB replacement rarely involves swapping a single board in isolation. In practice, plant engineers undertaking a Mark VI maintenance or migration project will typically need to address several interconnected components within the same controller cabinet or I/O enclosure.

The IS200DSPXH2BEB works in close coordination with the IS200VCRCH1B VME communications and control board, which manages the IONet communication backbone linking the DSP board to distributed I/O packs across the turbine skid. If the VCRCH1B is also showing fault codes or has reached end-of-service life, replacing both boards during the same maintenance window eliminates the risk of a secondary unplanned outage. Similarly, the IS200DSPXH1A — an earlier hardware revision of the same DSP board — is frequently encountered in older Mark VI installations and can be evaluated for cross-revision compatibility depending on the firmware version loaded in the controller.

On the I/O side, the Mark VI system relies on distributed I/O packs such as the IS200TRLYH1B relay output terminal board and the IS200AEPAH1B analog I/O pack to interface with field instrumentation including thermocouples, RTDs, pressure transmitters, and actuator feedback signals. When replacing the DSP board, it is advisable to audit the terminal boards and I/O packs for signs of capacitor aging, corrosion on the connector pins, or firmware incompatibility — particularly in installations that have been running continuously for more than ten years.

Power integrity is another critical factor. The Mark VI controller rack is powered by a dedicated IS200EPCTG1A power supply module, which provides the regulated +5 VDC and ±15 VDC rails required by the DSP board and its neighbors. A degraded power supply can cause intermittent DSP faults that are misdiagnosed as board failures; verifying the EPCTG1A output voltages under load before installing the replacement IS200DSPXH2BEB is a standard commissioning step.

For sites undertaking a phased migration from Mark VI toward the GE Mark VIe platform, the IS200DSPXH2BEB can serve as a bridge solution — maintaining turbine availability while the new Mark VIe controllers, I/O modules, and EtherNet/IP communication infrastructure are being engineered and staged. The Mark VIe uses a fundamentally different communication architecture based on standard Ethernet rather than IONet, so a full rack and wiring redesign is required for the final cutover; however, keeping the Mark VI operational with a fresh DSP board buys the engineering team the time needed to execute that transition safely.

Field engineers should also account for the IS200STCIH2A servo terminal board and the IS200PSCDH1A protection and synchronization card when scoping a Mark VI DSP replacement project in combined-cycle or cogeneration applications, as these boards share the same backplane and communicate directly with the DSP board during turbine start sequences and load control operations.

Retrofit Guidance FAQ

Q: Can I install the IS200DSPXH2BEB without re-flashing the firmware?
A: If the replacement board is the same hardware revision (H2B) as the original, the existing configuration file stored in the Mark VI controller can typically be reloaded without modification using GE Toolbox. If the revision differs (e.g., H1A to H2B), a firmware compatibility review is required before energizing the rack.

Q: Will the existing field wiring need to be changed?
A: No. The IS200DSPXH2BEB connects to the Mark VI backplane via the standard edge connector; field wiring terminates at the I/O terminal boards, not at the DSP board itself. Wiring changes are only required if the terminal board or I/O pack is also being replaced.

Q: Is the IONet communication protocol preserved after replacement?
A: Yes. IONet is implemented at the rack and I/O pack level. Replacing the DSP board does not alter the IONet topology; the new board will resume communication with all connected I/O packs once the controller configuration is reloaded and the rack is powered up.

Q: How much physical space does the board require in the controller cabinet?
A: The IS200DSPXH2BEB occupies a single VME-format slot in the Mark VI controller rack. No additional panel space or DIN rail mounting is required. Verify that the target slot is designated for a DSP board in the rack layout drawing before installation.

Q: What is the recommended procedure for replacing the board during a planned outage?
A: (1) Export the current controller configuration using GE Toolbox. (2) Power down the controller rack following the site lockout/tagout procedure. (3) Remove the faulty IS200DSPXH2BEB and install the replacement. (4) Power up the rack and reload the configuration. (5) Verify all I/O pack communications and perform a functional test of the turbine control sequences before returning the unit to service.

Q: Can this board be used in a TMR (Triple Modular Redundant) Mark VI configuration?
A: Yes. The IS200DSPXH2BEB is used in both simplex and TMR Mark VI configurations. In a TMR system, all three controller racks (R, S, T) must run identical board revisions and firmware versions to maintain voting integrity.

Warranty Assurance

Every IS200DSPXH2BEB shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to dispatch, each board undergoes a multi-point functional inspection including visual examination for physical damage, connector pin integrity check, and power-on verification where test equipment permits. Units that do not pass inspection are quarantined and not offered for sale.

In the event of a warranty claim, TOPNLMS will arrange a replacement unit or issue a refund based on the fault assessment. Our technical team is available to assist with installation queries, compatibility verification, and commissioning support via email and phone. We understand that turbine control system downtime carries significant financial consequences, and our logistics team prioritizes urgent orders with same-day or next-business-day dispatch from Xiamen.

Export documentation including commercial invoice, packing list, and certificate of origin is provided with every international shipment to facilitate smooth customs clearance. We ship via DHL, FedEx, and UPS Express to most destinations worldwide, with tracking provided at the time of dispatch.
