GE DS200TCPAG1AJD Replacement for Mark VI TMR

Product Overview

GE DS200TCPAG1AJD Replacement for Mark VI TMR: Seamless Transition for Turbine Control Systems

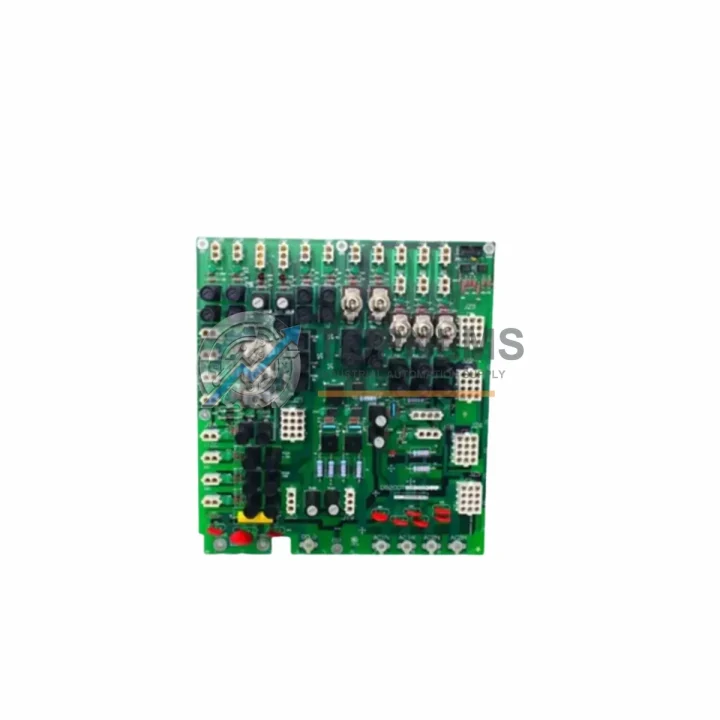

The GE DS200TCPAG1AJD is a Turbine Control Processor designed for use within GE’s Mark VI Triple Modular Redundant (TMR) control architecture. As aging Mark VI installations approach end-of-life or face discontinued spare part availability, plant engineers and maintenance teams increasingly require a reliable, wiring-compatible replacement that preserves system integrity without requiring full platform migration. The DS200TCPAG1AJD addresses this need directly — offering a proven upgrade path that minimizes downtime, preserves existing wiring infrastructure, and maintains compatibility with the broader Mark VI ecosystem.

Whether your facility is managing a gas turbine, steam turbine, or combined-cycle power generation unit, the DS200TCPAG1AJD serves as the central processing node responsible for executing turbine control logic, managing I/O communication, and coordinating redundancy across the TMR architecture. Replacing this module with a tested, original-specification unit is one of the most impactful steps a maintenance team can take to extend the operational life of an existing Mark VI system by five to ten years — deferring costly full-system upgrades while maintaining regulatory compliance and operational reliability.

Compatibility Comparison Table

Seamless Upgrade Solutions

Replacing the DS200TCPAG1AJD is rarely an isolated action. In practice, a turbine control processor swap is most effective when conducted as part of a structured maintenance window that evaluates the health of adjacent modules and interconnects within the same Mark VI cabinet.

During the replacement procedure, maintenance engineers should inspect the DS200TCQAG1BHF I/O Terminal Board, which interfaces directly with the processor and routes field signals from thermocouples, pressure transmitters, and speed sensors. Worn or corroded terminal connections at this board are a common source of intermittent faults that can be misattributed to the processor itself. Replacing or reconditioning the terminal board in the same maintenance window eliminates this diagnostic ambiguity.

The DS200SDCIG2AGB DC Power Supply Module should also be evaluated. The Mark VI TMR architecture distributes 28 VDC across the controller rack via the backplane, and a degraded power supply can cause erratic processor behavior that mimics hardware failure. Confirming power supply output stability before and after the processor swap is standard commissioning practice.

For facilities running IONet-based communication between the Mark VI controller and remote I/O packs, the DS200IIBDG1A IONet Interface Board is a critical component to inspect. IONet communication faults can prevent the replacement processor from establishing proper redundancy synchronization, so verifying interface board integrity is a prerequisite for a successful cutover.

If your Mark VI system includes remote I/O packs connected via the DS215TCQBG1BZZ01A I/O Extender Board, these should be tested for communication continuity after the processor replacement. Extended I/O configurations are particularly sensitive to processor firmware version mismatches, and a pre-tested extender board in inventory provides a fast recovery path if issues arise during commissioning.

The DS200TCEAG1BHF Excitation Control Board is another module commonly replaced in the same maintenance cycle as the turbine control processor, particularly in generator excitation control applications. Excitation board faults can mask or compound processor-related alarms, making simultaneous inspection and replacement a best practice for minimizing repeat outages.

For facilities using the Mark VI system in combined-cycle configurations, the DS200DSPXG1ADB Digital Signal Processor Board handles high-speed signal processing tasks that complement the TCPAG1AJD’s control functions. Ensuring this board is operating within specification before returning the system to service reduces the risk of nuisance trips during the post-replacement commissioning phase.

Finally, the IS200TTURH1CBB Turbine Trip Relay Board and associated relay modules should be functionally tested as part of any turbine control processor replacement. Trip relay integrity is a safety-critical requirement, and a documented functional test of the trip circuit provides the compliance record required by most plant safety management systems.

Procuring tested spare units of these related modules — including the DS200TCDAG1AHD Analog I/O Board and the DS200TCQCG1BHF I/O Terminal Board — as part of the same purchase order reduces per-unit shipping costs, consolidates incoming inspection workload, and ensures that a complete set of critical spares is available for the next unplanned outage.

Retrofit Guidance FAQ

Q1: Is the DS200TCPAG1AJD a direct drop-in replacement for other Mark VI processor variants?
The DS200TCPAG1AJD is designed for the Mark VI TMR architecture. While it shares physical form factor with other Mark VI processor modules, firmware version and hardware revision compatibility must be verified against your specific system configuration using GE Toolbox (ToolboxST) before installation. In most cases, the replacement is a direct swap with no wiring changes required.

Q2: Do I need to reprogram the replacement processor after installation?
In a standard replacement scenario, the application program resides on the Mark VI controller and is not stored on the individual processor module. After physical installation, the replacement processor synchronizes with the active TMR controllers and loads the application configuration automatically. A cold-start commissioning procedure is recommended to verify synchronization and confirm all I/O channels are reading correctly.

Q3: What communication protocols does the DS200TCPAG1AJD support, and are they compatible with my existing SCADA or DCS integration?
The DS200TCPAG1AJD communicates via GE’s proprietary IONet protocol for internal rack communication and supports Ethernet-based connectivity for integration with plant SCADA, historian, and DCS systems. Existing network configurations, IP addressing, and protocol mappings are preserved during a like-for-like processor replacement, requiring no changes to upstream communication infrastructure.

Q4: What does the 12-month warranty cover, and what pre-shipment testing is performed?
Every DS200TCPAG1AJD unit shipped by TOPNLMS undergoes functional verification prior to dispatch, including power-on testing, communication interface checks, and visual inspection for component integrity. The 12-month warranty covers hardware defects and functional failures under normal operating conditions. In the event of a warranty claim, TOPNLMS provides replacement support with priority processing to minimize customer downtime. Contact our technical team at [email protected] for warranty registration and claim procedures.

Warranty Assurance

TOPNLMS provides a 12-month warranty on all DS200TCPAG1AJD units. Each module is subject to pre-shipment functional testing covering power integrity, communication interface verification, and physical inspection. Units are packaged in anti-static, shock-resistant materials to ensure safe transit to any global destination.

In the event of a confirmed hardware defect within the warranty period, TOPNLMS will provide a replacement unit with priority processing. Our technical support team is available to assist with installation guidance, compatibility verification, and commissioning questions. We maintain inventory of the DS200TCPAG1AJD and related Mark VI spare parts to support rapid dispatch for emergency maintenance situations.

For purchase inquiries, warranty registration, or technical consultation, contact us at [email protected] or +86 18359293191.
