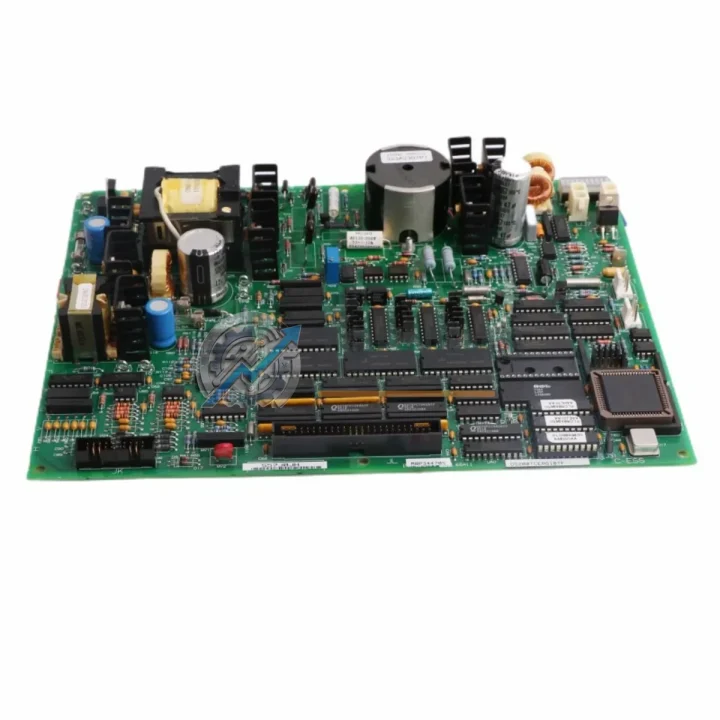

GE DS200TCEAG1APB Replacement for Mark V Series

Product Overview

GE DS200TCEAG1APB Replacement for Mark V Series: Smooth Transition & Legacy System Compatibility

The GE DS200TCEAG1APB is a Turbine Control Excitation Board designed for the GE Mark V Speedtronic Turbine Control System. As aging Mark V installations approach end-of-support lifecycle, plant engineers and procurement teams face increasing pressure to source verified replacement boards that maintain full backward compatibility with existing wiring harnesses, I/O assignments, and control logic — without triggering a full system overhaul.

TOPNLMS supplies the DS200TCEAG1APB as a direct drop-in replacement for failed or degraded excitation boards within the Mark V platform. Each unit is sourced from verified industrial channels, inspected prior to dispatch, and backed by a 12-month warranty. Whether you are managing an emergency breakdown or executing a planned retrofit, our inventory is ready to ship from Xiamen within 1–3 business days.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful Mark V excitation board replacement rarely involves a single component in isolation. In practice, plant engineers replacing the DS200TCEAG1APB often find it necessary to simultaneously evaluate adjacent boards and modules within the same control cabinet to ensure system-wide integrity.

The DS200TCQAG1BHF Turbine Control Quad Board frequently operates in tandem with the TCEA board, managing quadrature encoder feedback and speed sensing signals. If the excitation board has failed due to power surge or environmental stress, the TCQA board should be inspected as a precaution. Similarly, the DS200SDCCG3A Speed and Dynamics Control Card governs turbine speed reference and governor response — a board that must remain synchronized with the excitation subsystem after any replacement.

On the power distribution side, the DS200DPBAG1A Distribution and Power Board supplies regulated voltages to the TCEA and neighboring boards. Verifying its output rails before installing the replacement DS200TCEAG1APB eliminates the risk of damaging a new board due to upstream PSU degradation. For sites running the Mark V controller, the DS200DSPCH1A Digital Signal Processor Card handles real-time control loop execution and should be confirmed operational as part of the commissioning checklist.

Communication integrity is equally critical. The Mark V system relies on its internal ARCNET communication network to synchronize the , , and redundant controllers. If the site uses a DS200TCRAG1AAA Turbine Control Relay Board for output relay logic, its wiring terminations should be re-verified after the TCEA swap to confirm no signal cross-contamination occurred during the board pull. For plants that have already partially modernized their HMI layer, the DS200IIBDG1A Inter-board Interface Board may serve as the bridge between legacy Mark V I/O and updated SCADA or DCS front-ends.

Sites managing excitation systems tied to generator AVR (Automatic Voltage Regulator) loops may also need to cross-reference the DS200EXBDG1ABA Exciter Bridge Board and the DS200TBQBG1A Terminal Board for field wiring termination points. These terminal boards provide the physical screw-terminal interface between field cables and the Mark V backplane — ensuring that wiring compatibility is maintained without re-pulling cables is a key advantage of the DS200TCEAG1APB’s drop-in design.

For sites considering a phased migration toward the GE Mark VIe platform, the DS200TCEAG1APB serves as a cost-effective bridge solution — stabilizing the existing Mark V installation while the broader migration plan is finalized, budgeted, and scheduled.

Retrofit Guidance FAQ

Q: Can I replace the DS200TCEAG1APB without modifying existing field wiring?
A: Yes. The DS200TCEAG1APB is a direct board-level replacement. All field wiring connects via the Mark V backplane and terminal boards — no re-termination of field cables is required for a like-for-like swap.

Q: Do I need to re-flash or reconfigure the replacement board?
A: In most direct replacement scenarios, no re-programming is required. The Mark V system stores control logic in the controller and associated memory boards, not on the TCEA board itself. However, any site-specific calibration parameters should be verified against the original commissioning records after installation.

Q: Is the DS200TCEAG1APB compatible with all Mark V variants?
A: The board is designed for the standard GE Mark V Speedtronic platform. Compatibility with Mark V LM (aeroderivative) or Mark V for steam turbines should be confirmed against the original system documentation and GE part cross-reference tables. Contact TOPNLMS with your panel serial number for confirmation.

Q: What communication protocol does the Mark V use, and is it preserved after replacement?
A: The Mark V uses GE’s proprietary ARCNET-based inter-board communication. The DS200TCEAG1APB participates in this network passively through the backplane — replacing the board does not alter the ARCNET topology or require re-addressing.

Q: How much physical space does the board require?
A: The DS200TCEAG1APB occupies a standard Mark V single-slot VME-style card position. No additional rack space or mounting hardware is required beyond what the original board occupied.

Q: What if my system is showing excitation fault codes after replacement?
A: Post-installation excitation faults are most commonly caused by AVR reference signal mismatches or upstream PSU voltage drift. Verify the DS200DPBAG1A power board output rails and check AVR setpoint parameters in the Toolbox configuration before concluding the replacement board is at fault.

Warranty Assurance

Every GE DS200TCEAG1APB supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Our pre-shipment inspection process includes visual examination, connector integrity verification, and functional bench testing where applicable. Units are packed in anti-static ESD shielding bags with foam-cushioned outer cartons to prevent transit damage.

In the event of a warranty claim, TOPNLMS provides a straightforward replacement or repair process with a target response time of 1–2 business days for claim acknowledgment. We maintain reserve stock of high-demand Mark V boards specifically to support rapid warranty exchanges, minimizing plant downtime during the resolution process.

For procurement teams requiring documentation, we can provide inspection reports, packing lists, and commercial invoices suitable for customs clearance and internal asset management. Expedited shipping options (DHL, FedEx, UPS) are available for emergency breakdown situations. Standard lead time from confirmed order to dispatch is 1–3 business days from our Xiamen warehouse.

TOPNLMS has been supplying industrial automation components to power generation, oil & gas, and process industries globally. Our technical team is available to assist with cross-referencing, compatibility verification, and post-installation support.
