Honeywell CC-TD0R01 51308376-175 Original Industrial Spare Experion PKS Compatible

Product Overview

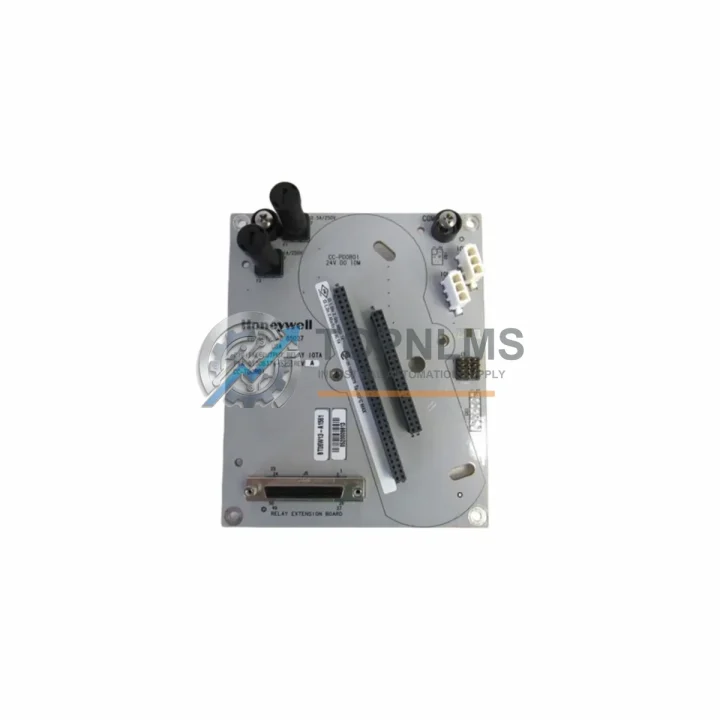

Honeywell CC-TD0R01 51308376-175 Original Industrial Spare Experion PKS Compatible: System Stability and Industrial Spare Parts Maintenance Value

The Honeywell CC-TD0R01 (part number 51308376-175) is an original relay output module engineered for the Experion PKS (Process Knowledge System) distributed control system platform. In process-critical environments — including petrochemical plants, power generation facilities, pulp and paper mills, and continuous manufacturing lines — this module serves as a foundational component for discrete output control, actuator switching, and field device interfacing. Maintaining a verified spare of the CC-TD0R01 in your on-site inventory is one of the most cost-effective decisions a maintenance team can make to protect system uptime and reduce unplanned downtime risk.

When a relay output module fails in an Experion PKS cabinet, the consequences extend well beyond the module itself. Downstream actuators lose their command signals, safety interlocks may be compromised, and the entire control loop dependent on that output channel becomes inoperative. In high-throughput production environments, even a two-hour unplanned outage can translate into significant financial loss. Having a tested, original CC-TD0R01 on the shelf eliminates the lead time variable entirely — your maintenance team can execute a hot-swap replacement within minutes, restore loop integrity, and return the process to normal operation without waiting for emergency procurement.

Critical Technical Specs Table

Preventive Maintenance Strategy

A relay output module like the CC-TD0R01 does not operate in isolation. It is one node in a tightly integrated I/O architecture, and its long-term reliability depends on the health of the surrounding components. When scheduling a planned maintenance window or responding to an unplanned shutdown, experienced maintenance engineers know that inspecting the CC-TD0R01 alone is insufficient — the entire I/O chassis and associated field wiring infrastructure must be evaluated simultaneously.

Begin with the CIOM-A I/O chassis and backplane connectors. Relay modules subject to high-cycle switching loads can cause micro-arcing at the backplane interface over time; inspect for discoloration, oxidation, or loose seating. While the chassis is open, verify the condition of the CC-PDOB01 digital output module installed in adjacent slots — transistor output modules in the same cabinet often share the same field power bus and are subject to similar load stress. If any channel on the CC-PDOB01 shows erratic behavior, plan its replacement alongside the CC-TD0R01 to avoid a repeat maintenance event.

Next, inspect the CC-TCNT01 controller module or the C300 process controller that governs the I/O link to which this relay module is assigned. Controller firmware version mismatches can cause intermittent output faults that are incorrectly attributed to the relay module itself. Confirm that the controller’s I/O link health indicators show no degraded channel counts before condemning the CC-TD0R01.

Field wiring termination is another common failure point. The CC-TAIX01 or CC-TAOX01 terminal assembly connected to the relay module’s field termination unit (FTU) should be inspected for loose screw terminals, corroded conductors, and insulation breakdown — particularly in high-humidity or chemically aggressive environments. Replacing a relay module without addressing a degraded terminal assembly will result in premature re-failure.

For cabinets operating in dusty or high-vibration environments, also check the CC-PWRR01 redundant power supply module. An unstable or under-voltage power supply is a leading cause of relay output module faults and false trips. Verify output voltage under load and inspect capacitor condition if the unit has accumulated significant operating hours.

Communication integrity between the I/O chassis and the controller should be validated via the CC-LINK01 or FTE (Fault Tolerant Ethernet) network switch serving the Experion PKS node. Packet loss or CRC errors on the I/O link can manifest as spurious relay output activations or missed commands — symptoms that are often misdiagnosed as relay module failures.

Finally, for facilities running legacy Experion PKS configurations, consider auditing the CC-SCMB02 system cabinet module bus and any installed CC-MFPB02 multi-function process bus cards. These backbone components govern the overall I/O scan rate and redundancy switching behavior. A proactive replacement of aged bus interface cards during the same maintenance window as the CC-TD0R01 swap can significantly extend the service life of the entire control cabinet without requiring a full system migration.

Strategic Replacement Solutions

The CC-TD0R01 (51308376-175) is a direct replacement for earlier Honeywell relay output modules used in legacy TDC 3000 and PlantScape migration projects that have been consolidated onto the Experion PKS platform. Its physical form factor, backplane pinout, and I/O link protocol are fully compatible with the CIOM-A chassis, meaning no configuration changes, no re-engineering of the I/O database, and no modification to the control strategy are required during replacement.

For maintenance teams managing aging Experion PKS installations, the strategic value of stocking original CC-TD0R01 modules cannot be overstated. As Honeywell progressively transitions its support focus toward newer C300 and Experion PKS R500+ architectures, the availability of original spare modules through standard distribution channels will tighten. Procurement teams that establish a buffer stock of 2–3 units per cabinet now will be insulated from future supply constraints and emergency premium pricing.

Each unit supplied by TOPNLMS undergoes a full functional test prior to shipment, including relay coil energization verification, contact resistance measurement, and backplane interface continuity check. This pre-shipment protocol ensures that the module arriving at your facility is ready for immediate installation — eliminating the risk of receiving a defective spare that only reveals its fault during a live maintenance event.

Our 12-month warranty covers all functional defects attributable to the module itself. Combined with our global logistics network, most orders can be dispatched within 1–3 business days, with expedited shipping options available for emergency procurement scenarios.
