Honeywell DC-TAIX01 51307597-176 Replacement for TPS TDC 3000

Product Overview

Honeywell DC-TAIX01 51307597-176 Replacement for TPS TDC 3000: Smooth Migration & Legacy System Compatibility

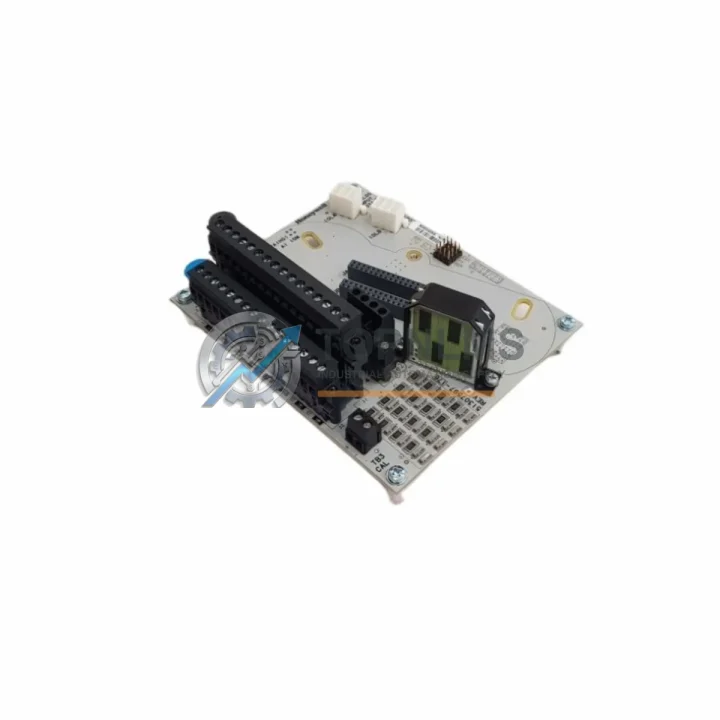

The Honeywell DC-TAIX01 (part number 51307597-176) is a high-density analog input module designed for the TotalPlant Solution (TPS) and TDC 3000 Distributed Control System platforms. As Honeywell progressively phases out legacy TDC 3000 hardware, many facilities operating continuous process industries — including refining, petrochemical, power generation, and pulp & paper — face the critical challenge of sourcing verified replacement modules without disrupting live production. This listing provides a fully tested, ready-to-ship DC-TAIX01 module engineered to deliver a plug-and-play upgrade path that preserves your existing wiring infrastructure, cabinet layout, and control logic.

The DC-TAIX01 interfaces directly with the standard TPS Universal Control Network (UCN) and High-Level Manager (HLM) architecture. It accepts 4–20 mA and 1–5 V analog signals from field transmitters, thermocouples, and RTDs, maintaining the same channel-to-channel isolation and signal conditioning characteristics as the original factory module. Engineers migrating from older TDC 3000 AM/HPM-based systems will find that the DC-TAIX01 slots into the existing IOP (Input/Output Processor) card cage without mechanical modification, eliminating the need for new DIN rail mounting hardware or cabinet re-engineering.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful DC-TAIX01 migration rarely involves a single module swap. In practice, field engineers replacing aging TPS analog input cards typically address the surrounding system components in the same maintenance window to maximize uptime and reduce future risk.

The DC-TAIX01 connects to the field via a dedicated Field Termination Assembly (FTA), such as the Honeywell MC-TAIH02 or MC-TAIH03 termination panel, which provides the marshalling point between the card cage and field wiring. If the FTA shows signs of corrosion or terminal wear, replacing it alongside the DC-TAIX01 eliminates a common source of intermittent signal faults. Similarly, the IOP card cage backplane — shared with modules such as the DC-TDOX01 digital output module and the DC-TAOX01 analog output module — should be inspected for connector oxidation before re-seating the new card.

For facilities running a hybrid TPS/Experion PKS architecture, the DC-TAIX01 can coexist with Experion C300 controllers communicating over the FTE (Fault Tolerant Ethernet) backbone, provided the UCN gateway and the Honeywell NIM (Network Interface Module) are correctly configured. Engineers who have already migrated portions of their I/O to the Experion EHPM platform will find that the DC-TAIX01 continues to serve legacy loops without requiring a full UCN-to-FTE migration, protecting capital investment in existing field wiring and junction boxes.

Power integrity is equally critical. The TPS card cage relies on a redundant 24 V DC power supply module — typically a Honeywell MC-PDPY22 or equivalent — to maintain continuous operation. Verifying power supply output voltage and ripple before installing the DC-TAIX01 prevents nuisance faults and protects the new module from voltage transients. In cabinets where the existing power supply is approaching end-of-life, a simultaneous power supply replacement is strongly recommended.

Communication continuity is maintained through the UCN coaxial cable infrastructure. If the site uses a Honeywell UCN Tap or UCN Repeater to extend the network across multiple control rooms or satellite equipment rooms, these components should be verified for signal integrity as part of the commissioning checklist. For sites transitioning to fiber-optic UCN segments, the DC-TAIX01 remains fully compatible with the existing UCN protocol without firmware changes.

Finally, for sites that require expanded I/O capacity beyond what the existing IOP cage provides, the DC-TAIX01 can be deployed in a new IOP card cage alongside a Honeywell HPM (High-Performance Process Manager) controller, enabling a phased expansion strategy that avoids a full DCS rip-and-replace. This approach is particularly effective in brownfield plants where capital budgets favor incremental modernization over wholesale system replacement.

Retrofit Guidance FAQ

Q: Will the DC-TAIX01 work with my existing Field Termination Assembly (FTA) without rewiring?
A: Yes. The DC-TAIX01 uses the same FTA connector pinout as the original TPS analog input IOP cards. No field wiring changes are required. Simply disconnect the old card, insert the DC-TAIX01, and restore power.

Q: Do I need to modify my CL (Control Language) or SCM programs after replacement?
A: No. The DC-TAIX01 is a transparent hardware replacement. All existing CL blocks, SCM configurations, and point database entries remain valid. No re-download or re-configuration of the HPM or AM is required.

Q: Is the DC-TAIX01 compatible with both TDC 3000 and TPS platforms?
A: Yes. The module is designed for the TPS platform, which is the direct successor to TDC 3000. It operates on the same UCN communication bus and IOP card cage infrastructure used across both generations.

Q: What communication protocols does the DC-TAIX01 support?
A: The DC-TAIX01 communicates exclusively over the Honeywell UCN (Universal Control Network) proprietary bus. It does not natively support HART, PROFIBUS, or Modbus. For HART-enabled field devices, a separate HART multiplexer or a HART-capable FTA is required.

Q: How much physical space does the DC-TAIX01 require in the control cabinet?
A: The DC-TAIX01 occupies a single IOP card slot in the standard TPS card cage. No additional DIN rail space or cabinet modification is needed. The module’s form factor is identical to the original card it replaces.

Q: What is the recommended commissioning procedure after installation?
A: After physical installation, perform a loop check on all 16 channels using a calibrated 4–20 mA signal source. Verify that each channel reads correctly in the operator console before returning the loop to automatic control. No special firmware loading or hardware configuration is required.

Warranty Assurance

Every DC-TAIX01 module shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to shipment, each unit undergoes a multi-point functional inspection that includes power-on self-test verification, analog signal channel calibration check, UCN bus communication validation, and physical connector integrity inspection. Units that do not pass all inspection criteria are quarantined and not offered for sale.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the agreed resolution timeframe. Our after-sales response team is reachable via email at [email protected] or by phone at +86 18359293191. We maintain a standing inventory of TPS/TDC 3000 spare parts to support rapid replacement dispatch, minimizing the risk of extended production downtime for our customers.

For urgent procurement requirements — including same-day quotation, express air freight, and customs documentation support for cross-border shipments — please contact our sales team directly. We serve industrial end-users, EPC contractors, MRO distributors, and system integrators across Asia, the Middle East, Europe, and the Americas.
