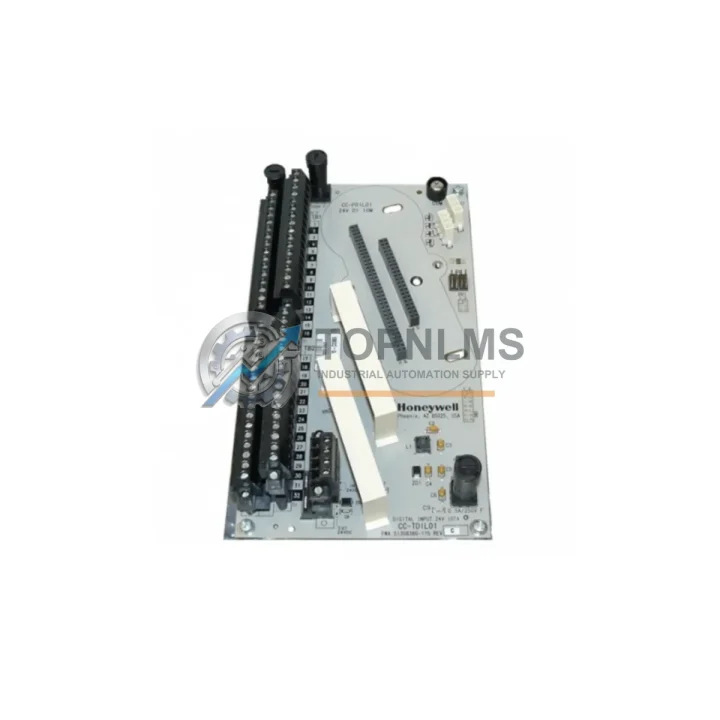

Honeywell CC-TDIL11 Ruggedized Digital Input Module for Harsh Industrial Environments

The Honeywell CC-TDIL11 is a 24VDC Digital Input IOTA (I/O Termination Assembly) Redundant Module engineered for mission-critical deployment within the Honeywell Experion PKS C300 Distributed Control System architecture. Designed to operate reliably under the most demanding industrial conditions — including high ambient temperatures, elevated humidity, airborne particulate contamination, mechanical vibration, and intense electromagnetic interference — the CC-TDIL11 delivers the signal integrity and fault-tolerant redundancy that continuous-process industries cannot afford to compromise.

In heavy industrial environments such as oil refineries, offshore platforms, chemical processing plants, and metallurgical facilities, digital input modules are the first line of sensing between field instruments and the control system. The CC-TDIL11 accepts 24VDC discrete signals from field devices — limit switches, proximity sensors, valve position feedback, and safety interlock circuits — and transmits them with high noise immunity to the C300 controller. Its IOTA form factor allows direct termination of field wiring without intermediate marshalling, reducing installation complexity and potential failure points in the control cabinet.

Redundancy is a core design principle of the CC-TDIL11. When paired with a redundant C300 controller module and the corresponding Honeywell CC-SCMB01 system connection module, the CC-TDIL11 supports bumpless switchover, ensuring that a single-point hardware failure does not interrupt process monitoring or safety interlock execution. This architecture is particularly critical in applications governed by IEC 61511 functional safety standards, where proof-test intervals and diagnostic coverage must be rigorously maintained.

Rugged Specifications Table

Comprehensive Protection Solutions

The CC-TDIL11 does not operate in isolation — it is a precision component within a tightly integrated Honeywell Experion PKS control architecture. In a typical C300-based control cabinet, the CC-TDIL11 IOTA works in conjunction with the Honeywell CC-PDIL01 digital input FTA (Field Termination Assembly) to route 24VDC discrete signals from field instruments into the controller backplane. The CC-SCMB01 system connection module bridges the IOTA to the C300 controller, enabling the redundant communication path that underpins fault-tolerant operation.

For process loops requiring analog measurement alongside discrete status monitoring, the CC-TDIL11 is commonly deployed alongside Honeywell CC-TAIX11 analog input IOTA modules and CC-TAOX11 analog output IOTA modules, all sharing the same C300 backplane and cabinet infrastructure. In safety-instrumented systems, the CC-TDIL11 digital input channels feed interlock logic executed by the Honeywell FSC (Fail-Safe Controller) or Safety Manager platform, where every input state transition is logged and validated against the safety requirements specification.

Power integrity is equally critical. The CC-TDIL11 and its associated FTA modules are typically powered through Honeywell CC-PWR01 or equivalent 24VDC DIN-rail power supplies with redundant feed capability, ensuring that a power supply failure does not propagate to the I/O layer. In high-vibration or high-EMI environments — such as compressor stations, motor control centers, or arc furnace control rooms — additional surge protection devices and shielded cable assemblies are installed at the field terminal blocks of the IOTA to protect signal integrity.

Communication between the C300 controller and the supervisory Experion PKS server is handled via the Honeywell FTE (Fault Tolerant Ethernet) network, a dual-ring redundant Ethernet architecture that isolates control traffic from corporate IT networks. The CC-TDIL11, as part of the C300 I/O subsystem, benefits directly from this network redundancy — any controller switchover event is transparent to the SCADA layer, maintaining continuous data acquisition and alarm management without operator intervention.

Application in Critical Infrastructure

The Honeywell CC-TDIL11 has established a proven track record across the most demanding sectors of critical infrastructure worldwide. In upstream oil and gas operations, the module monitors wellhead valve positions, emergency shutdown (ESD) switch states, and high-pressure interlock signals in environments where ambient temperatures can exceed 50°C and salt-laden humidity accelerates corrosion of unprotected electronics. Its sealed IOTA housing and conformal-coated PCB construction provide the environmental resilience required for long-term deployment without scheduled preventive replacement.

In coal-fired and gas-fired power generation facilities, the CC-TDIL11 is integrated into boiler management systems (BMS) and turbine control panels, where it monitors burner flame detection signals, fuel valve positions, and auxiliary equipment status. The module’s redundant architecture ensures that a single hardware fault does not trigger a spurious unit trip — a critical requirement in baseload generation where unplanned outages carry significant financial and grid-stability consequences.

Mining and mineral processing operations present some of the harshest conditions for control system hardware: fine silica and coal dust infiltration, continuous mechanical vibration from crushers and conveyors, and wide temperature swings between day and night shifts. The CC-TDIL11, installed within IP65-rated control enclosures and supported by positive-pressure purge systems, maintains reliable digital input acquisition from conveyor belt alignment switches, crusher overload contacts, and slurry pump status signals — all feeding into the Experion PKS C300 for centralized supervisory control.

In water and wastewater treatment plants, the module monitors pump run/fail status, valve open/close confirmation, and level switch states across geographically distributed lift stations and treatment basins. Its low power consumption and compact IOTA form factor make it well-suited for remote panel installations where cabinet space and thermal management are constrained. The 12-month warranty and TOPNLMS pre-shipment testing protocol ensure that replacement modules arrive site-ready, minimizing the mean time to repair (MTTR) during unplanned maintenance events.
