Honeywell CC-SDOR01 Original Spare Experion PKS Compatible

Product Overview

Honeywell CC-SDOR01 Original Spare Experion PKS Compatible: Ensuring System Stability in Industrial Environments

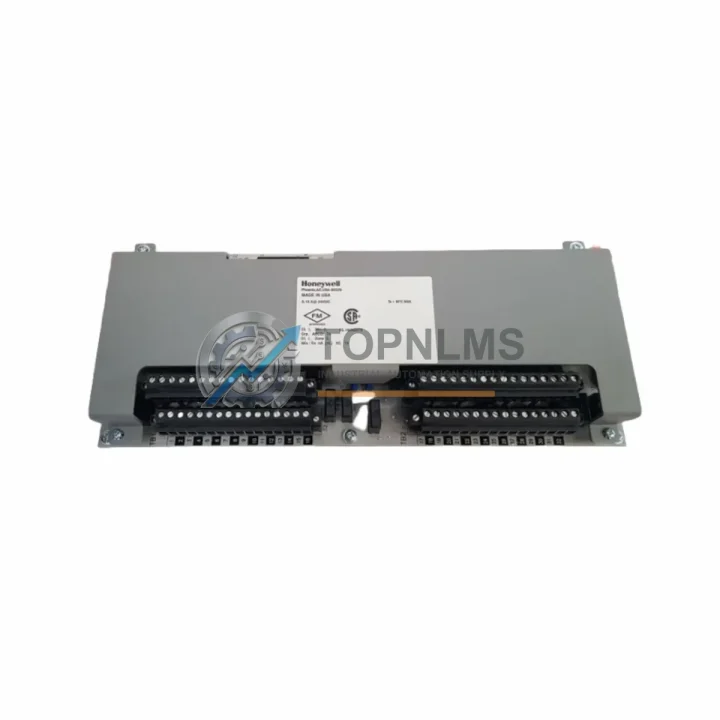

The Honeywell CC-SDOR01 is an original Digital Output Relay Module designed for the Experion PKS Series C Distributed Control System (DCS). In process industries — including oil & gas, petrochemical, power generation, pulp & paper, and pharmaceutical manufacturing — the reliability of every I/O module in the control cabinet directly determines plant uptime. The CC-SDOR01 provides relay-isolated digital output capability, enabling safe and dependable switching of field devices such as solenoid valves, motor starters, and alarm annunciators from the DCS controller layer.

When a relay output module fails or degrades, the consequences extend far beyond a single control loop. Unplanned shutdowns, emergency maintenance callouts, and extended troubleshooting cycles all compound the cost of downtime. Stocking a verified original CC-SDOR01 as a ready spare eliminates the critical-path delay between fault detection and system restoration — a cornerstone of any mature industrial spare parts strategy.

Critical Technical Specs

Preventive Maintenance Strategy

A scheduled inspection of the CC-SDOR01 and its surrounding control cabinet components is the most cost-effective way to prevent unplanned outages. During routine maintenance windows, technicians should verify relay contact integrity using a continuity tester, inspect the module’s LED status indicators for latent faults, and confirm that the CC-TAIX11 or CC-TAOX11 Series C I/O carrier shows no signs of corrosion or mechanical damage at the backplane connector. A degraded carrier can cause intermittent relay faults that are misdiagnosed as module failures, so both components should be evaluated together.

The Honeywell C300 Process Controller that governs this I/O module should also be included in the inspection cycle. Firmware version alignment between the C300 and its associated I/O modules is a common source of subtle communication errors that only manifest under high-load conditions. Alongside the controller check, verify the health of the CC-PCF901 / CC-PCF902 Power Filter Module supplying the I/O cabinet — voltage ripple or under-voltage conditions accelerate relay contact wear and reduce module service life.

For digital output circuits driving solenoid valves or motor starters, the CC-SDDO01 Digital Output Module (solid-state variant) is frequently installed in adjacent slots for non-relay switching duties. Inspecting both module types during the same maintenance window reduces total labor hours and ensures the entire digital output layer is validated simultaneously. Similarly, the CC-SDAI01 Analog Input Module and CC-SDAO01 Analog Output Module installed in the same I/O chassis should be checked for calibration drift, as analog signal errors in adjacent slots can trigger false digital output commands through the control logic.

Communication infrastructure supporting the Experion PKS system deserves equal attention. The CC-TCF901 FTE (Fault Tolerant Ethernet) Communication Module provides the redundant network backbone; any degradation in FTE link quality will affect the responsiveness of all I/O modules including the CC-SDOR01. Inspect fiber or copper patch connections at the FTE switch and confirm that the CC-SCMB01 SCMB Communication Module shows active link status on both redundant paths.

Terminal blocks and field wiring connected to the relay output channels are a frequently overlooked maintenance item. Loose or oxidized terminations at the Series C marshalling cabinet terminal strips introduce resistance that reduces effective switching voltage and can cause relay chatter under load. A torque check of all field-side terminals during each planned outage is a low-cost intervention that significantly extends relay contact life. If the plant operates in a high-humidity or corrosive atmosphere, consider scheduling replacement of the CC-SDOR01 on a fixed interval — typically every 5–7 years — regardless of observed fault indicators, as part of a proactive lifecycle management program.

For facilities running legacy Experion PKS R310 or earlier, the CC-PDOB01 Digital Output Brick may be present in older cabinet sections alongside Series C modules. Documenting which cabinet sections use which generation of I/O hardware prevents cross-generation substitution errors during emergency replacements. Maintaining a small buffer stock of both the CC-SDOR01 and its predecessor variants ensures that any section of the plant can be restored quickly regardless of the installed hardware generation.

Strategic Replacement Solutions

The CC-SDOR01 is a direct, plug-compatible replacement for degraded or end-of-life relay output modules within any Experion PKS Series C I/O chassis. Because the module supports hot-swap insertion, replacement can be performed during a controlled maintenance window without requiring a full system shutdown — a critical advantage in continuous-process industries where even brief outages carry significant production and safety implications.

For plants transitioning from older Honeywell TDC 3000 or PlantScape systems to Experion PKS, the Series C I/O architecture provides a migration path that preserves existing field wiring and marshalling infrastructure. Replacing legacy relay output cards with CC-SDOR01 modules allows engineering teams to modernize the control layer incrementally, reducing project risk and capital expenditure compared to a full greenfield replacement.

When sourcing replacement modules, procurement teams should prioritize verified original parts with traceable manufacturing provenance. Counterfeit or refurbished relay modules may pass initial bench tests but exhibit premature contact failure under sustained industrial load cycles. Every CC-SDOR01 supplied by TOPNLMS is sourced from authorized channels, individually tested prior to shipment, and covered by a 12-month warranty — providing the documentation trail required for regulated industries and ISO-compliant maintenance programs.

Lead time risk is a significant factor in spare parts planning for DCS components. Original Honeywell Series C modules can carry extended factory lead times during periods of high demand. Maintaining at least one CC-SDOR01 per installed I/O chassis as a local buffer stock is a widely adopted best practice among reliability engineers in process-intensive facilities. The carrying cost of a single spare module is negligible compared to the cost of a single day of unplanned downtime in most process plants.

Support FAQ

Q1: Is the CC-SDOR01 compatible with all Experion PKS controller versions?
The CC-SDOR01 is designed for Experion PKS Series C I/O and is compatible with the C300 Process Controller running Experion PKS R400 and later firmware releases. For R310 and earlier environments, compatibility should be verified against the installed firmware version. TOPNLMS can provide compatibility guidance based on your specific system revision prior to purchase.

Q2: What pre-shipment testing is performed on each CC-SDOR01?
Each module undergoes functional verification of all 8 relay output channels, backplane communication integrity testing, and LED diagnostic confirmation before shipment. A test report is available upon request. Modules are shipped in anti-static packaging with physical protection to prevent transit damage.

Q3: Can the CC-SDOR01 be replaced in the field without shutting down the Experion PKS system?
Yes. The CC-SDOR01 supports hot-swap replacement on a live Series C I/O carrier. The C300 controller will automatically detect the new module and resume normal I/O scanning within seconds of insertion. It is recommended to place the associated control loops in manual mode before performing the swap to prevent unintended field device actuation during the transition.

Q4: What does the 12-month warranty cover, and what is the return process?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. To initiate a warranty claim, contact TOPNLMS with the order reference and a description of the observed fault. Replacement or repair will be arranged within the warranty period at no additional cost.
