Honeywell MC-TDOY23 51204166-175 Original Industrial Spare C300 Compatible: Sustaining System Stability in Critical DCS Environments

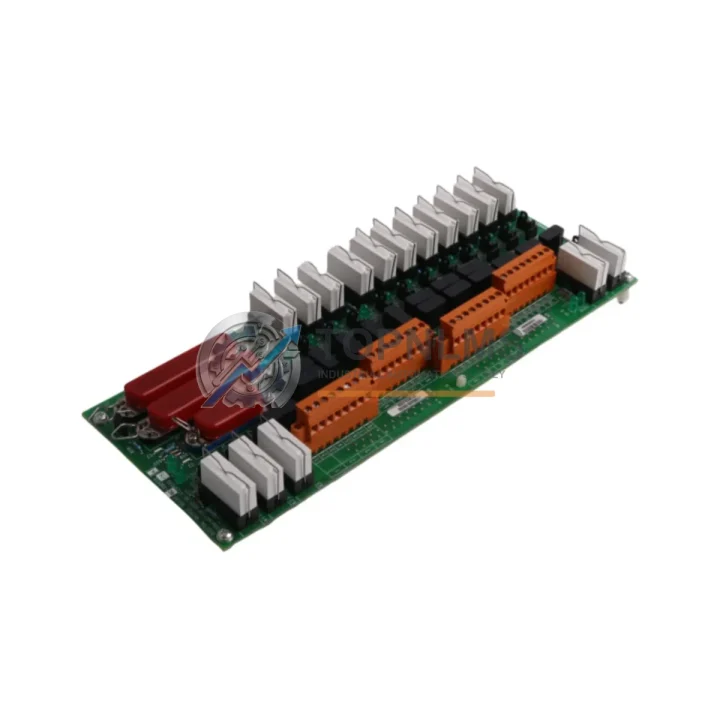

The Honeywell MC-TDOY23 (Part No. 51204166-175) is an original digital output relay module engineered for the Honeywell C300 Controller platform within the Experion PKS (Process Knowledge System) distributed control system architecture. Designed for demanding industrial process environments — including oil & gas, petrochemical, power generation, pulp & paper, and pharmaceutical manufacturing — this module delivers reliable, high-integrity relay-switched digital outputs to field devices such as solenoid valves, motor starters, alarm annunciators, and shutdown actuators.

Sourced as an original Honeywell spare part, the MC-TDOY23 is a direct replacement for aging or failed units in existing C300 DCS cabinets. Its plug-and-play compatibility with the C300 I/O chassis eliminates the need for re-engineering or reconfiguration, making it the preferred choice for maintenance teams focused on minimizing mean time to repair (MTTR) and protecting production continuity.

Critical Technical Specs

Preventive Maintenance Strategy

In any C300-based DCS installation, the MC-TDOY23 relay output module is rarely a standalone failure point — it operates as part of an integrated I/O subsystem. A disciplined preventive maintenance program should treat the module replacement as a trigger for a broader cabinet inspection. When scheduling downtime to replace or inspect the MC-TDOY23, maintenance engineers should simultaneously verify the condition of adjacent components to prevent cascading failures and unplanned shutdowns.

Begin with the MC-PAIH02 or MC-PAIH03 I/O chassis that houses the module. Backplane connector wear and chassis power rail degradation are common root causes of intermittent module faults that are often misdiagnosed as module failures. Inspect the chassis for oxidized contacts, loose retention clips, and signs of thermal stress.

The MC-PDOY22 digital output module (transistor-type) is frequently installed alongside the MC-TDOY23 in the same cabinet to handle lower-current switching loads. If one relay module shows signs of contact wear or coil fatigue, the adjacent transistor output modules should be load-tested as part of the same maintenance window.

Inspect the MC-TAMR03 or MC-TAMR04 analog input modules sharing the same I/O chassis. In mixed I/O cabinets, relay switching transients can induce noise on adjacent analog signal channels. Verifying analog module calibration and signal integrity after relay module replacement is a best practice in high-precision process control environments.

The C300 Controller module (MC-CONT03) itself should be checked for firmware version compatibility when installing a replacement MC-TDOY23. Ensure the controller firmware supports the module revision level to avoid configuration mismatch alarms on startup.

Review the 24 VDC power supply modules (such as the MC-PWRJ01 or equivalent Honeywell cabinet power supply) that feed the I/O chassis. Relay output modules place intermittent inductive loads on the DC bus; a power supply operating near its rated capacity may exhibit voltage sag during simultaneous relay switching events, leading to spurious output states or module resets.

Terminal blocks and field wiring terminations connected to the relay outputs should be inspected for loose screws, insulation breakdown, and corrosion — particularly in humid or chemically aggressive plant environments. Phoenix Contact or Weidmüller DIN-rail terminal blocks used in Honeywell DCS marshalling cabinets are common wear items that are often overlooked during module-focused maintenance.

If the plant uses signal isolators or relay interposing modules between the MC-TDOY23 outputs and field devices, these should be tested for proper switching thresholds and isolation resistance. Degraded isolators can mask relay output faults or introduce false signals into the control loop.

Finally, review the Experion PKS server and FTE (Fault Tolerant Ethernet) network switch health. A module replacement is an ideal time to verify that the I/O link between the C300 controller and the replaced module is re-established cleanly, with no residual communication faults or stale diagnostic alarms in the Experion Station.

Strategic Replacement Solutions

The MC-TDOY23 (51204166-175) is a direct, form-fit-function replacement for earlier Honeywell relay output modules used in legacy TDC 3000 and PlantScape migration projects that have been upgraded to the Experion PKS C300 platform. For plants still operating original TDC 3000 HPM (High-Performance Manager) cabinets, the MC-TDOY23 represents the migration path to a supported, maintainable I/O architecture without requiring a full DCS replacement.

Stocking one or two spare MC-TDOY23 units per DCS cabinet cluster is a widely adopted strategy among reliability engineers in continuous-process industries. The module’s plug-in design means that a trained technician can complete a hot-swap replacement in under 15 minutes, provided the spare is on-site and pre-tested. Compared to the cost of a single hour of unplanned process downtime in a refinery or chemical plant, the inventory carrying cost of a spare MC-TDOY23 is negligible.

For plants undergoing DCS lifecycle extension programs — deferring a full migration by 5–10 years — maintaining a curated spare parts inventory that includes the MC-TDOY23 alongside compatible C300 controller modules, power supplies, and communication modules is essential to sustaining system availability commitments and meeting insurance and regulatory requirements for process safety management (PSM) sites.

All units supplied by TOPNLMS are sourced from authorized channels, individually tested for relay contact integrity, coil resistance, and bus communication prior to shipment, and shipped with full traceability documentation. Each module is covered by a 12-month warranty from the date of delivery.

Support FAQ

Q1: Is the MC-TDOY23 (51204166-175) compatible with all C300 controller revisions?
The MC-TDOY23 is designed for use with the Honeywell C300 Controller in Experion PKS R310 and later releases. For earlier Experion releases (R210–R300), compatibility depends on the controller firmware revision. We recommend verifying your Experion PKS release level before ordering. Our technical team can assist with compatibility confirmation based on your system’s software version.

Q2: How is the module tested before shipment?
Each MC-TDOY23 unit undergoes bench testing that includes relay contact continuity verification across all 8 channels, coil energization testing at rated voltage, isolation resistance measurement between channels and chassis ground, and functional communication testing on a C300-compatible I/O chassis. A test report is available upon request for quality-critical applications.

Q3: What is the recommended spare parts stocking strategy for C300 DCS installations?
For a typical C300 DCS installation with 10–20 I/O chassis, reliability engineers generally recommend stocking 1–2 units of each I/O module type per 10 installed modules, with a minimum of 1 spare per module type regardless of quantity. For relay output modules like the MC-TDOY23, which are subject to mechanical wear from switching cycles, a slightly higher stocking ratio is advisable for high-cycle applications such as batch process control or safety interlock systems.

Q4: What is covered under the 12-month warranty?
The 12-month warranty covers manufacturing defects, component failures under normal operating conditions, and any failure attributable to the module itself rather than external wiring faults or incorrect installation. Warranty claims are processed with priority turnaround. Replacement units are dispatched within 3–5 business days of claim approval, and failed units are accepted for return freight-prepaid within the warranty period.
