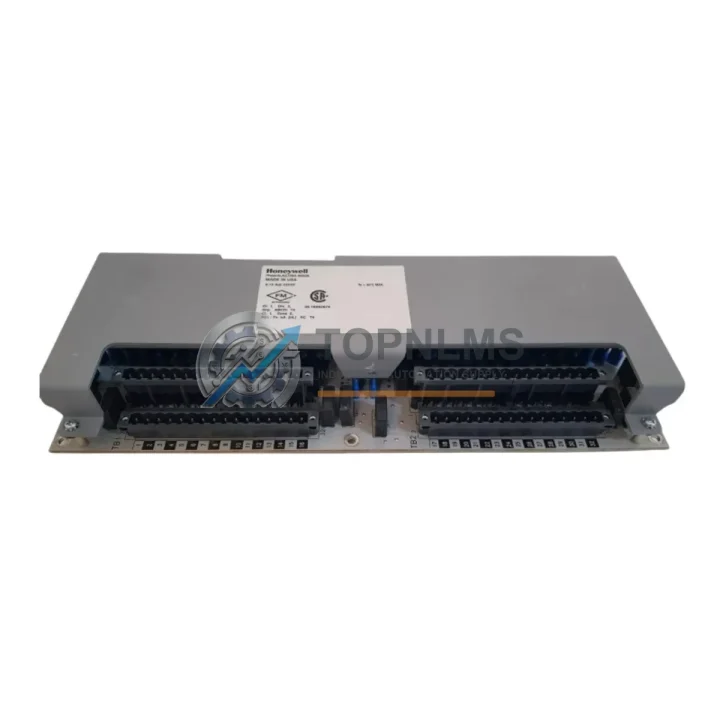

Honeywell DC-SDOR01 Ruggedized DCS Output Relay Module

Product Overview

Honeywell DC-SDOR01 Ruggedized DCS Output Relay Module: Industrial Resilience in the Most Demanding Environments

The Honeywell DC-SDOR01 is a high-reliability digital output relay module engineered for the Experion PKS DC-S Series distributed control system architecture. Designed to operate continuously in environments characterized by extreme temperature fluctuations, high humidity, airborne particulates, mechanical vibration, and intense electromagnetic interference, this module delivers the signal integrity and switching precision that mission-critical industrial processes demand. Whether deployed in a petrochemical refinery, a coal-fired power station, a mineral processing plant, or a continuous steel rolling line, the DC-SDOR01 provides the deterministic relay output performance that keeps production running safely and without interruption.

At TOPNLMS, every DC-SDOR01 unit is sourced through verified supply channels, subjected to pre-shipment functional testing, and dispatched with full traceability documentation. Our inventory is maintained specifically to support urgent MRO replacement scenarios, planned shutdowns, and long-term spares programs for facilities operating Honeywell Experion PKS control architectures.

Rugged Specifications Table

Comprehensive Protection Solutions

The DC-SDOR01 does not operate in isolation — it is one node in a tightly integrated control architecture where every component must perform to specification under the same harsh conditions. In a typical Experion PKS cabinet, the DC-SDOR01 works in concert with the Honeywell DC-SDAI01 digital input module to form a complete discrete I/O subsystem, receiving field device status signals while simultaneously driving actuators, solenoid valves, and motor starters through its relay contacts.

Upstream, the Honeywell CC-PCNT01 controller module or equivalent Experion PKS C300 process controller issues the output commands that the DC-SDOR01 executes with millisecond-level determinism. The integrity of this command path depends equally on the Honeywell CC-PWRR01 redundant power supply module, which ensures that neither a single power rail failure nor a transient voltage spike can interrupt relay switching operations. In high-availability configurations, the DC-SDOR01 is paired with a redundant counterpart module on a mirrored backplane, a topology also supported by the Honeywell DC-SCMX01 communication module that manages inter-controller data exchange across the Experion network.

For installations where field wiring enters the control cabinet from electrically noisy environments — such as variable frequency drive (VFD) panels, motor control centers, or high-current bus zones — the Honeywell DC-STIM01 terminal interface module provides the marshalling and signal conditioning layer that protects the DC-SDOR01’s relay contacts from inductive kickback and ground loop interference. Similarly, the Honeywell DC-SCXI01 I/O expansion module allows the system integrator to scale the relay output count without introducing additional backplane segments, preserving the compact footprint of the control cabinet.

In safety-instrumented system (SIS) architectures operating alongside the basic process control system (BPCS), the DC-SDOR01 is frequently found adjacent to Honeywell Safety Manager SC modules and Honeywell FS-SDOR01 fail-safe relay output modules, where its role is to handle non-safety-rated discrete outputs while the SIS layer manages emergency shutdown (ESD) and fire-and-gas (F&G) functions. This division of responsibility is a recognized best practice under IEC 61511 and ensures that the safety layer is never burdened with routine process control switching cycles that would accelerate relay wear.

Power distribution within the cabinet is typically managed by a Honeywell 24 VDC regulated DIN-rail power supply rated at 10 A or higher, with a secondary UPS buffer module providing ride-through capability during momentary grid disturbances — a common occurrence in heavy industrial facilities with large rotating machinery. The DC-SDOR01’s low power consumption profile makes it compatible with even modestly sized power budgets, an important consideration when retrofitting legacy cabinets with limited space and thermal headroom.

Application in Critical Infrastructure

The Honeywell DC-SDOR01 has established a proven track record across the full spectrum of process industries where continuous, unattended operation is not optional — it is contractually and operationally mandatory.

In oil and gas upstream and midstream facilities, the DC-SDOR01 drives wellhead control panel (WCP) solenoids, pipeline isolation valve actuators, and compressor station auxiliary relays. Its optical isolation and EMC-hardened design allow it to function reliably in the presence of high-frequency switching noise generated by variable speed drives and high-voltage switchgear located in adjacent panels. Offshore platform installations, where salt-laden humid air accelerates corrosion and vibration from wave motion and rotating machinery is constant, represent one of the most demanding use cases for this module.

In coal and gas-fired power generation, the DC-SDOR01 is deployed in boiler management systems (BMS), turbine control panels, and auxiliary plant control cabinets. The module’s ability to sustain relay contact integrity across thousands of switching cycles per day — without the contact bounce or welding failures that plague lower-grade relay output modules — is critical in applications where a missed trip signal or a spurious output could trigger a unit trip or, worse, a safety system bypass.

In mining and mineral processing, where crusher vibration, conveyor belt dust, and high-current motor starting transients create an exceptionally hostile electrical environment, the DC-SDOR01’s robust backplane connector design and conformal-coated PCB construction provide the mechanical and chemical resistance needed for multi-year service intervals between planned maintenance windows.

In water and wastewater treatment, the module controls pump station motor starters, chemical dosing pump relays, and UV disinfection system contactors. Municipal utilities operating under strict regulatory uptime requirements rely on the DC-SDOR01’s predictable mean time between failures (MTBF) and the availability of tested replacement units from TOPNLMS to maintain their service level agreements.

In metallurgical and steel production environments, where ambient temperatures near furnaces and casting lines can approach the upper limits of the module’s rated operating range, the DC-SDOR01’s thermal design margin provides the confidence that relay output performance will not degrade during peak production periods when the cost of an unplanned stoppage is measured in tens of thousands of dollars per hour.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is a warranty claim processed?
The 12-month warranty covers all manufacturing defects, component failures, and functional non-conformances identified under normal operating conditions consistent with Honeywell’s published specifications for the DC-SDOR01. If a unit fails within the warranty period, TOPNLMS will arrange return shipping, perform diagnostic verification, and dispatch a replacement unit or issue a credit note within an agreed lead time. Warranty claims are initiated by contacting [email protected] with the order reference number and a description of the observed fault.

Q2: How is each DC-SDOR01 unit tested before shipment?
Every DC-SDOR01 unit dispatched by TOPNLMS undergoes a pre-shipment functional test protocol that verifies relay contact continuity on all eight output channels, backplane connector integrity, optical isolation resistance, and power consumption within specification. Units that do not pass all test criteria are quarantined and not offered for sale. Test records are retained and can be provided upon request for quality-critical procurement programs.

Q3: Is the DC-SDOR01 compatible with all Experion PKS system revisions?
The DC-SDOR01 is designed for the Experion PKS DC-S Series I/O backplane and is compatible with Experion PKS R400 through R520 system revisions as documented in Honeywell’s compatibility matrices. For installations running earlier or later firmware revisions, TOPNLMS recommends confirming the specific backplane hardware revision and controller firmware version prior to ordering. Our technical team can assist with compatibility verification at no charge.

Q4: Can TOPNLMS support long-term or blanket purchase orders for ongoing spares programs?
Yes. TOPNLMS maintains buffer stock of high-demand Honeywell Experion PKS modules including the DC-SDOR01 specifically to support MRO spares programs, annual shutdown kits, and multi-year supply agreements. Customers operating large Experion PKS installations are encouraged to contact us to discuss consignment stock arrangements, priority allocation agreements, and volume pricing structures that reduce per-unit cost while guaranteeing availability when unplanned replacements are required.
