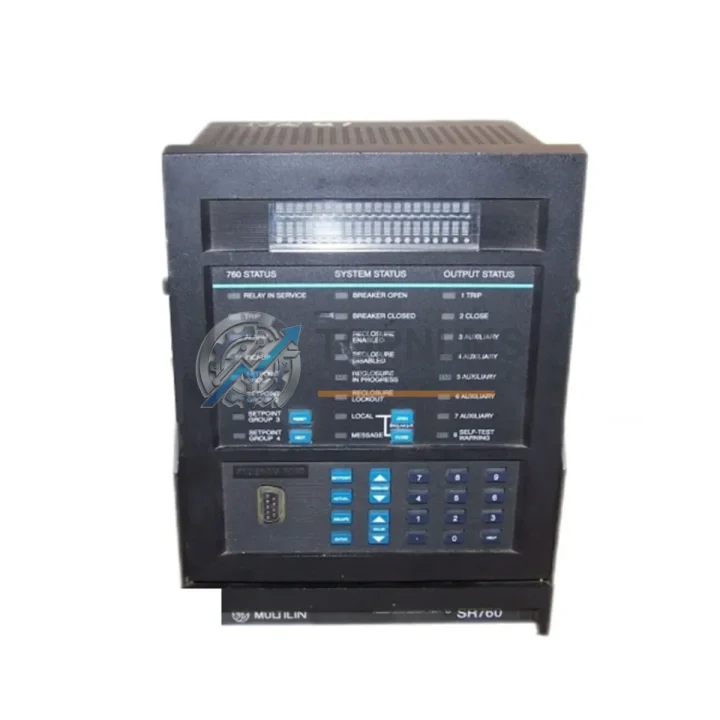

GE SR760 760-P1-G1-S1-HI-A20-R Replacement for SR Series

Product Overview

GE SR760 760-P1-G1-S1-HI-A20-R Replacement for SR Series: Seamless Transition & Legacy System Upgrade

The GE SR760 760-P1-G1-S1-HI-A20-R is a high-performance feeder management relay from GE Grid Solutions’ SR Series, designed for comprehensive feeder protection in medium-voltage distribution systems. As aging SR760 units reach end-of-service life or become increasingly difficult to source, facilities engineers and procurement teams face mounting pressure to identify a reliable, drop-in replacement that preserves existing wiring infrastructure, communication architecture, and protection logic — without triggering a full panel redesign or extended outage window.

This listing provides a verified replacement and upgrade solution for the GE SR760 760-P1-G1-S1-HI-A20-R, sourced and tested to meet original factory specifications. Whether you are retiring a legacy SR Series installation, responding to a critical field failure, or executing a planned modernization of your feeder protection scheme, this unit is ready to ship from our Xiamen warehouse with full pre-shipment functional verification.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful SR760 retrofit rarely involves the relay alone. In practice, field engineers replacing a legacy GE SR750 or SR735 feeder relay will simultaneously evaluate the condition of associated components throughout the protection panel. The CT wiring harness and terminal block layout typically remain reusable, but the RS-485 communication cable connecting the relay to the SCADA or RTU may need to be re-terminated if the legacy unit used a proprietary connector pinout. For sites running DNP3.0 over RS-485, the existing GE F485 or compatible RS-485 to fiber converter can be retained without modification.

Where the control system architecture includes a GE D60 or L90 line differential relay upstream, the SR760’s IEC 61850 GOOSE messaging capability enables direct peer-to-peer tripping coordination — eliminating the hardwired intertrip scheme that older SR Series relays depended on. Sites that previously relied on a GE C60 breaker protection relay for bus-tie coordination will find that the SR760 integrates cleanly into the same substation automation network via the same Ethernet switch infrastructure.

For installations where the legacy relay was mounted in a GE Multilin or third-party protection panel alongside a GE 750/760-compatible HMI display module, the front-panel RS-232 port on the SR760 supports direct laptop connection using a standard GE EnerVista programming cable, removing the need for a dedicated communications converter during commissioning. Engineers migrating settings from a decommissioned SR750 can export the legacy configuration file and import it into EnerVista SR760 Setup with minimal manual re-entry.

In multi-feeder substations, it is common to find the SR760 operating alongside GE 850 feeder protection relays, GE 650 series motor protection relays, or legacy GE MIFII overcurrent relays on adjacent feeders. The SR760’s shared Modbus TCP gateway capability means all feeder relays can report to a common SCADA concentrator without requiring individual serial-to-Ethernet converters for each bay. Where arc flash detection is a project requirement, the SR760’s optional arc flash sensor input eliminates the need for a standalone arc flash detection relay in the same panel, reducing both cost and panel real estate.

Power supply redundancy is a frequent concern during relay replacement projects. The SR760’s wide-range auxiliary input (24–250 VDC) is compatible with both the station battery bus and the AC instrument transformer supply, making it straightforward to maintain the existing power distribution architecture without adding a dedicated DC/DC converter or UPS module.

Retrofit Guidance FAQ

Q: Can I reuse the existing CT and VT wiring from my SR750 installation?
A: In most cases, yes. The SR760 uses the same rear-terminal CT and VT input arrangement as earlier SR Series relays. Verify the CT ratio and burden rating against the SR760 datasheet before energizing. If the legacy wiring used ring-lug terminations, these can be reused directly on the SR760’s screw-terminal rear connector block.

Q: Will my existing DNP3.0 SCADA points map correctly to the SR760?
A: The SR760 supports DNP3.0 Level 2 with a configurable point list. If your legacy SR750 or SR735 used a standard GE DNP3.0 point map, the SR760 can be configured to replicate the same object and variation assignments, minimizing changes to the SCADA master database. A full DNP3.0 device profile document is available upon request.

Q: Does the SR760 fit the same panel cutout as the SR750?
A: The SR760 uses the same 19″ rack-mount or flush-panel form factor as the SR750 and SR735. Panel cutout dimensions are identical, so no mechanical modification to the switchboard door or panel sheet is required. Mounting hardware from the legacy unit can typically be reused.

Q: How do I migrate protection settings from the old relay to the SR760?
A: GE’s EnerVista SR760 Setup software (free download) includes a settings migration utility. Export the settings file from the legacy relay using EnerVista SR750 Setup, then use the migration tool to convert and import into the SR760 project file. Review all protection element pickup values and time-dial settings after import, as some function mappings may require manual verification.

Q: What communication protocols does the SR760 support for integration with modern DCS or SCADA systems?
A: The SR760 supports Modbus RTU (RS-485), Modbus TCP (Ethernet), DNP3.0 (serial and TCP), and IEC 61850 (GOOSE and MMS) depending on the order code suffix. This makes it compatible with virtually all modern DCS platforms, including ABB System 800xA, Siemens SIMATIC PCS 7, Honeywell Experion, and Emerson DeltaV, via standard protocol gateways.

Q: Is the SR760 suitable for outdoor switchgear or only indoor panels?
A: The SR760 is rated for indoor panel installation (IEC 60068 environmental class). For outdoor switchgear applications, ensure the enclosure provides adequate IP rating and temperature control. The relay itself operates across a wide temperature range (−40°C to +60°C) suitable for most climate-controlled outdoor enclosures.

Warranty Assurance

Every GE SR760 760-P1-G1-S1-HI-A20-R unit shipped from TOPNLMS is covered by a 12-Month Warranty from the date of shipment. Prior to dispatch, each unit undergoes a multi-point functional verification process including auxiliary power input testing, output contact continuity checks, communication port handshake verification, and front-panel display and keypad functionality confirmation. Units that do not pass all pre-shipment checks are quarantined and not offered for sale.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period, subject to inspection of the returned item. Our technical support team is available to assist with installation queries, settings migration questions, and communication configuration during the warranty period at no additional charge. Typical order processing time is 1–3 business days, with express air freight options available for critical breakdown situations. All units are shipped with anti-static packaging, individual serial number documentation, and a pre-shipment test report upon request.

For procurement teams requiring formal documentation, we can provide a commercial invoice, packing list, certificate of conformity, and country of origin declaration to support customs clearance and internal purchasing approval workflows.
