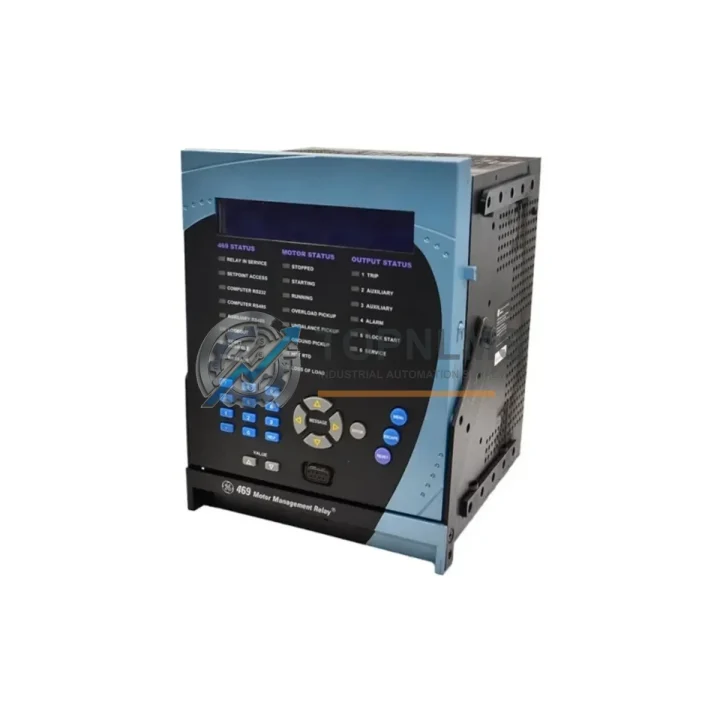

The GE Multilin 469-P5-HI-A20-E is a high-specification motor management relay from GE Grid Solutions’ renowned 469 Series, engineered for comprehensive protection, control, and monitoring of medium-voltage and low-voltage AC induction motors in industrial environments. As legacy motor protection systems age out of support cycles and original equipment manufacturers discontinue spare parts, plant engineers and procurement teams across oil & gas, mining, water treatment, pulp & paper, and heavy manufacturing are actively seeking verified replacement and upgrade pathways that preserve existing wiring infrastructure, minimize reprogramming effort, and reduce unplanned downtime.
This product page is specifically structured to support engineers and maintenance teams planning a controlled migration from older GE Multilin 469 variants, competing motor protection relays, or end-of-life motor management units to the 469-P5-HI-A20-E. Whether you are replacing a failed unit on an emergency basis or executing a planned fleet upgrade across multiple motor control centers (MCCs), the information below covers wiring compatibility, communication protocol continuity, physical installation constraints, and procurement assurance.
| Parameter | Legacy / Replaced Model | GE Multilin 469-P5-HI-A20-E | Replacement Notes |
|---|---|---|---|
| Series | GE Multilin 469 (earlier firmware revisions), 369 Series, competing ANSI 49/51 relays | GE Multilin 469 Series (current production) | Direct form-factor replacement within 469 Series; panel cutout dimensions unchanged |
| Power Supply Input | 85–265 V AC/DC (universal input on most 469 variants) | 85–265 V AC/DC universal input | No rewiring of control power circuit required in standard MCC installations |
| CT Input (Phase) | 1 A or 5 A secondary (selectable) | 1 A or 5 A secondary (selectable via DIP switch) | Existing phase CTs can be reused; verify CT ratio programming after swap |
| CT Input (Ground) | 50:0.025 A core balance CT or standard 1/5 A residual | 50:0.025 A core balance CT or 1/5 A residual | Core balance CT wiring retained; no re-termination needed |
| RTD Inputs | Up to 12 RTD inputs (100 Ω platinum) | Up to 12 RTD inputs (100 Ω platinum, 3-wire) | Existing RTD wiring harness compatible; re-map channel assignments in settings |
| Analog Inputs/Outputs | 4–20 mA analog I/O (model-dependent) | 4–20 mA analog I/O | Analog loop wiring unchanged; reconfigure scaling parameters |
| Digital Inputs | Wet/dry contact inputs (model-dependent) | Programmable digital inputs | Verify input voltage thresholds; terminal block positions match 469 standard pinout |
| Output Relays | Form A/B/C relay outputs | Form A/B/C relay outputs | Trip, alarm, and auxiliary relay wiring directly transferable |
| Communication Protocol | Modbus RTU (RS-485), optional DeviceNet or Profibus | Modbus RTU (RS-485) standard; optional Ethernet (Modbus TCP) | Existing Modbus RTU SCADA/DCS integration preserved; Ethernet upgrade available |
| HMI / Front Panel | LED indicators + keypad | Backlit LCD + keypad | Improved readability; operator interface logic unchanged |
| Mounting | Panel-mount, standard 469 cutout | Panel-mount, standard 469 cutout (1/4 DIN compatible) | No panel modification required for like-for-like swap |
| Protection Functions | ANSI 49, 51, 46, 50, 66, 86 (model-dependent) | ANSI 49, 51, 46, 50, 50G, 66, 86, 37, 48, 14 | Expanded protection set; re-enable only required functions to match legacy logic |
| Warranty | N/A (legacy / end-of-life) | 12-Month Warranty | Full replacement warranty from TOPNLMS; pre-shipment functional test included |
A successful migration to the GE Multilin 469-P5-HI-A20-E rarely involves the relay alone. In practice, field engineers encounter a cluster of interdependent components that must be evaluated and, in many cases, replaced or reconfigured simultaneously to achieve a reliable, code-compliant installation.
The most common starting point is the GE Multilin 469 Communications Module (RS-485 to Ethernet gateway card), which enables the 469-P5-HI-A20-E to participate in modern Modbus TCP or IEC 61850 GOOSE messaging networks without replacing the entire protection scheme. Plants that previously relied on a dedicated GE Multilin SR750 or SR760 feeder protection relay for upstream bus protection will find that the 469’s expanded ANSI function set allows tighter coordination with existing overcurrent curves already programmed in those upstream devices.
For motor control centers built around the GE Multilin 369 Motor Management Relay, the 469-P5-HI-A20-E represents a direct functional upgrade: the 369’s Modbus register map is largely mirrored in the 469, meaning SCADA drivers and historian tags require only minor address remapping rather than a full re-engineering effort. Similarly, sites running GE Multilin 239 Motor Protection Relay units on smaller motors can standardize their entire motor protection fleet onto the 469 platform, simplifying spare parts inventory and technician training.
On the wiring side, the GE Multilin 469 Terminal Block Plug-In Connector Kit is strongly recommended for any swap where the existing terminal block shows signs of heat stress or oxidation. These plug-in connectors allow the entire wiring harness to be pre-terminated on the bench and plugged into the new relay in minutes, dramatically reducing energized work time at the MCC. Where ground fault protection relies on a dedicated core balance CT, the GE Multilin 50:0.025 A Zero-Sequence CT should be inspected and replaced if the cable has been re-routed or the CT housing shows mechanical damage.
Communication infrastructure upgrades frequently accompany a 469 relay replacement. If the existing RS-485 Modbus network uses a GE Multilin F485 USB-to-RS-485 Converter for local programming and commissioning, this cable remains fully compatible with the 469-P5-HI-A20-E and the EnerVista 469 Setup Software. For plants transitioning to fiber-optic SCADA backbones, a Moxa NPort RS-485 to Ethernet Device Server provides a cost-effective bridge that preserves the existing Modbus RTU register structure while enabling TCP/IP connectivity to the control room historian.
Finally, where the motor control center houses a GE Multilin 750/760 Series Feeder Protection Relay in the same switchgear lineup, coordination study updates are advisable after the 469 swap to confirm that time-overcurrent curves, instantaneous pickup settings, and breaker failure timers remain correctly sequenced across the protection hierarchy. TOPNLMS can supply both the 469-P5-HI-A20-E and companion 750/760 Series relays from the same order to simplify procurement and ensure firmware compatibility across the protection system.
Q: Can I reuse the existing CT wiring when replacing an older 469 variant with the 469-P5-HI-A20-E?
A: Yes. The 469-P5-HI-A20-E uses the same terminal block layout and CT input impedance as previous 469 Series relays. Phase CT and ground CT secondary wiring can be transferred directly. After installation, verify CT ratio, polarity, and connection type (residual vs. core balance) in the relay settings menu before energizing.
Q: Will my existing Modbus RTU SCADA integration continue to work?
A: In most cases, yes. The 469-P5-HI-A20-E supports Modbus RTU over RS-485 with the same default register map as earlier 469 firmware versions. Minor register address differences may exist between firmware generations; TOPNLMS recommends downloading the current GE Multilin 469 Communications Guide and comparing register maps before go-live. Baud rate, parity, and stop bit settings are configurable to match your existing network parameters.
Q: Does the 469-P5-HI-A20-E fit the same panel cutout as the unit it replaces?
A: Yes. The 469 Series uses a standardized panel cutout and mounting depth. No panel modification is required for a like-for-like replacement within the 469 family. If replacing a 369 or 239 Series relay, panel cutout dimensions differ and an adapter plate or panel modification will be required.
Q: How do I transfer settings from the old relay to the new unit?
A: Use GE’s EnerVista 469 Setup Software to upload the settings file from the existing relay (if the unit is still functional) or re-enter settings manually from the last recorded settings printout. TOPNLMS recommends maintaining a current settings backup for all protection relays as part of standard maintenance practice.
Q: What is the lead time and shipping arrangement?
A: Units are held in stock at our Xiamen warehouse and ship within 1–3 business days of order confirmation. International shipments are dispatched via DHL Express or FedEx International Priority. Customs documentation, including commercial invoice and packing list with HS code, is prepared by TOPNLMS. Typical transit time to Europe is 3–5 business days; North America 4–7 business days.
Q: Can the 469-P5-HI-A20-E be used with DeviceNet or Profibus networks?
A: The standard 469-P5-HI-A20-E communicates via Modbus RTU (RS-485). Optional communication cards for DeviceNet and Profibus DP were available on earlier 469 hardware platforms. For plants requiring DeviceNet or Profibus integration, contact TOPNLMS to confirm card availability and firmware compatibility before ordering.
