GE Fanuc QPI-GEG-201-H Replacement for Series 90 Genius Bus

Product Overview

GE Fanuc QPI-GEG-201-H Replacement for Series 90 Genius Bus: Seamless Migration & Upgrade Solution

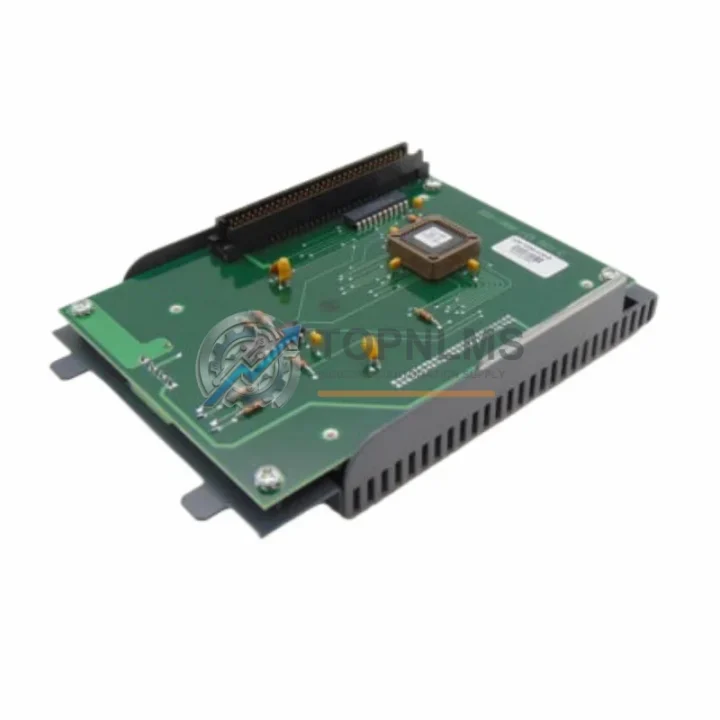

The GE Fanuc QPI-GEG-201-H is a Genius Bus Gateway module designed for the GE Series 90 programmable logic controller platform, providing a critical communication bridge between the Genius Bus network and the Series 90-70 or Series 90-30 CPU backplane. As legacy Series 90 systems approach end-of-life and original QPI-GEG-201-H units become increasingly difficult to source, plant engineers and system integrators face mounting pressure to secure verified replacement stock without triggering a full control system redesign.

TOPNLMS supplies the QPI-GEG-201-H as a direct drop-in replacement module, fully tested prior to shipment, with a 12-month warranty. Each unit is inspected for firmware integrity, bus termination condition, and connector pin alignment before dispatch from our Xiamen warehouse. Orders are processed within one business day, with DHL Express and FedEx International Priority available for time-critical plant shutdowns or emergency maintenance windows.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful QPI-GEG-201-H replacement rarely involves a single module in isolation. In most Series 90-70 control cabinets, the Genius Bus Gateway operates alongside a broader ecosystem of GE Fanuc hardware that may also require attention during a planned maintenance window or system modernization project.

The IC697CHS750 and IC697CHS782 Series 90-70 rack assemblies are the most common backplane hosts for the QPI-GEG-201-H. If the rack itself shows signs of backplane connector wear or slot damage, replacing the gateway module alone may not restore full system stability — a rack inspection or parallel rack replacement should be scheduled concurrently. The IC697PWR711 and IC697PWR724 power supply modules that feed these racks are also frequent candidates for proactive replacement during the same outage, as aging capacitors in the power supply can cause intermittent bus communication faults that are often misdiagnosed as gateway module failures.

On the Genius Bus network side, field devices such as the IC660BBD024 Genius Block I/O module and the IC660BBA020 analog input block communicate directly through the QPI-GEG-201-H gateway. During commissioning of a replacement gateway, engineers should verify that each Genius Bus device address is correctly configured and that the bus termination resistors at both ends of the daisy-chain cable are intact. A missing or degraded terminator is a common source of communication errors after a gateway swap.

For sites that are using the QPI-GEG-201-H as part of a broader migration from a legacy GE Series Six or Series Five DCS architecture toward a Series 90-70 platform, the IC693CMM302 Communications Coprocessor and IC693CMM311 Ethernet Interface module are frequently specified alongside the Genius Bus Gateway to provide parallel communication paths during the transition period. This dual-path architecture allows the new Series 90-70 CPU — such as the IC697CPX935 or IC697CPX772 — to maintain supervisory communication with both the legacy field network and the new Ethernet SCADA layer simultaneously, significantly reducing the risk of unplanned production interruptions during cutover.

Where cabinet space is constrained and the existing Series 90-70 rack cannot accommodate additional communication modules, a signal isolator or terminal block adapter mounted on DIN rail adjacent to the rack can provide the necessary field wiring breakout without requiring physical modification to the backplane assembly. This approach is particularly common in retrofit projects where the original control cabinet was designed for a smaller I/O footprint than the modernized system requires.

Retrofit Guidance FAQ

Q: Can I replace the QPI-GEG-201-H without modifying the existing Genius Bus field wiring?
A: Yes. The QPI-GEG-201-H connects to the Genius Bus network via the standard two-wire daisy-chain cable (shielded twisted pair). The replacement module uses the same connector and bus protocol, so no field wiring changes are required. Verify that the bus termination resistor (typically 75–100 Ω) is present at both ends of the bus before powering up the replacement unit.

Q: Do I need to reload the PLC program after swapping the gateway module?
A: In most cases, no. The QPI-GEG-201-H stores its Genius Bus configuration (device addresses, I/O mapping, scan rate) in the Series 90-70 CPU memory, not in the gateway module itself. After installing the replacement module, the CPU will automatically download the bus configuration to the new gateway during the next power cycle. Confirm this behavior using Proficy Machine Edition or Logicmaster 90 before returning the system to production.

Q: Is the QPI-GEG-201-H compatible with both Series 90-70 and Series 90-30 CPUs?
A: The QPI-GEG-201-H is primarily designed for the Series 90-70 VME backplane. Series 90-30 systems use a different backplane form factor and typically employ the IC693CMM302 or dedicated Genius Bus interface options. Confirm your CPU model and rack type before ordering.

Q: What communication protocol does the Genius Bus use, and is it compatible with modern SCADA systems?
A: The Genius Bus operates at 31.25 kbps using GE’s proprietary daisy-chain protocol. It is not directly compatible with Modbus TCP, PROFIBUS, or EtherNet/IP without a protocol converter. For sites requiring integration with modern SCADA or DCS platforms, a communication gateway such as the IC693CMM311 Ethernet module can be added to the Series 90-70 rack to provide a parallel Ethernet path while the Genius Bus network continues to operate unchanged.

Q: How much physical space does the QPI-GEG-201-H require in the rack?
A: The module occupies a single slot in the Series 90-70 rack (IC697CHS750 or IC697CHS782). No additional mounting hardware or DIN rail space is required. The module is powered entirely from the backplane — no external 24 VDC wiring is needed.

Q: What is the lead time and shipping arrangement for emergency replacement orders?
A: In-stock units ship within one business day from Xiamen, China. DHL Express typically delivers to major industrial hubs in Southeast Asia, the Middle East, and Europe within 3–5 business days. FedEx International Priority is available for North American destinations. Contact [email protected] or call +86 18359293191 to confirm real-time stock availability and arrange expedited dispatch.

Warranty Assurance

Every QPI-GEG-201-H unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Our pre-shipment inspection protocol includes:

• Visual inspection of PCB, connector pins, and module housing for physical damage
• Firmware revision verification against GE Fanuc release documentation
• Functional power-on test to confirm module initialization and self-diagnostic pass
• Genius Bus communication test where bench test equipment permits
• Anti-static packaging with humidity indicator card for long-distance freight

If a unit fails within the 12-month warranty period due to a manufacturing defect or latent fault, TOPNLMS will arrange a replacement shipment at no additional cost. Our after-sales response target is 24 hours for initial fault assessment and 72 hours for replacement dispatch confirmation. Warranty claims are processed via email at [email protected].

For procurement teams requiring documentation, we can provide a commercial invoice, packing list, certificate of conformance, and country-of-origin declaration for customs clearance purposes. Bulk order pricing and consignment stock arrangements are available for MRO distributors and system integrators with recurring demand for Series 90 spare parts.
