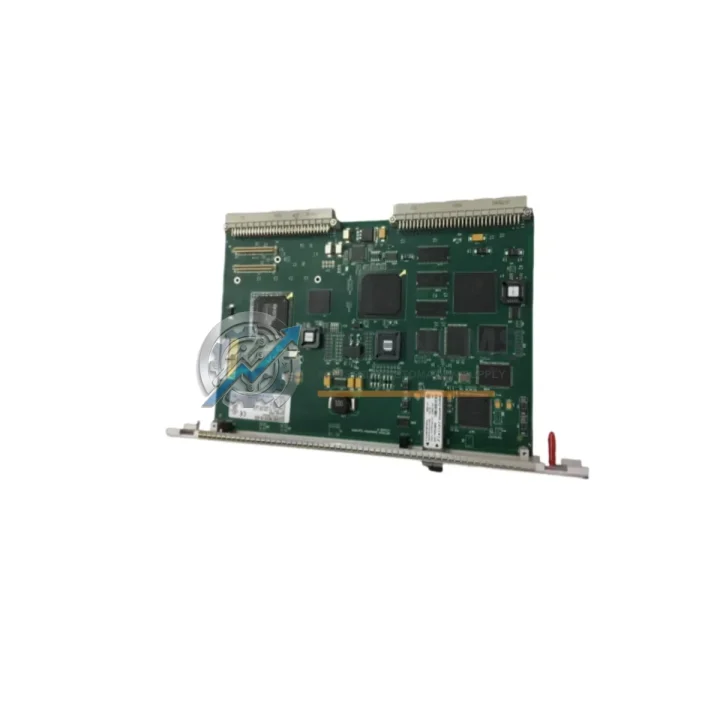

GE IC698CMX016-ED Original Industrial Spare RX7i Compatible

Product Overview

GE IC698CMX016-ED Original Industrial Spare RX7i Compatible: System Stability and Industrial Spare Maintenance Value

The GE IC698CMX016-ED is an original multi-protocol communication module designed for the GE PACSystems RX7i rack-based control platform. In industrial environments where continuous uptime is non-negotiable — from automotive assembly lines and chemical processing plants to power generation facilities and water treatment systems — this module serves as a critical communication backbone between the PLC controller and field devices, SCADA systems, and peer controllers. Sourced directly from authorized supply chains, each IC698CMX016-ED unit is tested prior to shipment and backed by a 12-month warranty, giving maintenance engineers and procurement teams the confidence to stock it as a primary or standby spare.

When a communication module fails in a PACSystems RX7i cabinet, the consequences extend far beyond a single I/O drop. Loss of communication can cascade into full production halts, safety interlock failures, and costly emergency procurement at premium prices. Stocking the IC698CMX016-ED as a pre-qualified spare eliminates that risk. Its multi-protocol capability — supporting Ethernet, serial, and fieldbus communication simultaneously — means a single module can restore connectivity across multiple network segments, reducing the number of unique spare SKUs your team needs to manage.

Critical Technical Specs Table

Preventive Maintenance Strategy

A communication module failure rarely occurs in isolation. In a PACSystems RX7i control cabinet, the IC698CMX016-ED operates in close dependency with several other components, and a thorough preventive maintenance program should address the entire communication and power chain simultaneously.

During scheduled downtime inspections, maintenance teams should verify the integrity of the IC698PSA100 or IC698PSA350 power supply module that feeds the RX7i backplane — degraded backplane voltage is a leading cause of intermittent communication faults that are often misdiagnosed as module failures. At the same time, inspect the IC698CHS017 or IC698CHS113 backplane chassis for oxidized slot contacts, which can cause the IC698CMX016-ED to report spurious communication errors under vibration or thermal cycling.

On the network side, the Ethernet ports of the IC698CMX016-ED connect to managed industrial switches and SCADA servers via Cat5e or Cat6 shielded industrial Ethernet cables. These cables should be inspected for jacket damage, tight bend radii near cable trays, and connector corrosion — particularly in high-humidity or chemically aggressive environments. Serial communication lines connected to the RS-232/RS-485 ports should be checked for ground loop issues, which are common in large facilities with multiple control panels.

I/O integrity is equally important. While the IC698CMX016-ED handles communication, the data it transmits originates from IC694MDL340 or IC694MDL654 discrete I/O modules and IC694ALG220 or IC694ALG442 analog I/O modules installed in the same or adjacent racks. Faulty I/O modules can generate erratic process values that trigger unnecessary SCADA alarms and complicate fault diagnosis. Including representative I/O module spares in your cabinet-level spare kit ensures that a communication anomaly can be quickly isolated to the network layer versus the field device layer.

For facilities running legacy serial fieldbus networks alongside modern Ethernet infrastructure, the IC693CMM311 or IC693CMM302 serial communication modules (used in older Series 90-30 panels that may coexist with RX7i systems) should also be part of the spare inventory. Cross-platform communication failures during system upgrades are a common source of unplanned downtime, and having compatible spares for both generations prevents extended troubleshooting delays.

Finally, IC698ACC001 slot filler modules should be installed in all unused backplane slots to prevent dust ingress and maintain the thermal management design of the chassis. Overlooked during routine maintenance, missing slot fillers are a frequent contributor to premature module degradation in dusty industrial environments.

Strategic Replacement Solutions

The IC698CMX016-ED -ED firmware revision represents the current production standard for this module family, offering improved Ethernet throughput and enhanced Modbus TCP server capacity compared to earlier -AA and -BC revisions. For facilities still operating panels equipped with older IC698CMX016-AA or IC698CMX016-BC units, a direct drop-in replacement with the -ED revision requires no configuration changes — the module is backward compatible with all PACSystems RX7i Machine Edition logic projects and retains the same slot addressing and parameter structure.

For maintenance engineers managing aging RX7i systems approaching end-of-support lifecycle, stocking the IC698CMX016-ED now — before GE Vernova (formerly GE Intelligent Platforms) formally discontinues the part — is a strategic procurement decision. Lead times for legacy PLC communication modules can extend to 8–16 weeks through standard distribution channels during supply chain disruptions. Pre-stocking one or two units per control system eliminates this exposure entirely and allows maintenance teams to execute same-shift replacements rather than waiting for emergency procurement.

The module’s multi-protocol architecture also provides a migration pathway for facilities transitioning from serial-based SCADA architectures to Ethernet-native systems. A single IC698CMX016-ED can simultaneously maintain legacy serial device communication while onboarding new Ethernet-connected instruments, reducing the need for parallel communication infrastructure during phased upgrades and significantly lowering project risk.

Support FAQ

Q1: Is the IC698CMX016-ED compatible with all PACSystems RX7i backplane configurations?
Yes. The IC698CMX016-ED is compatible with all standard RX7i universal backplanes, including the 7-slot IC698CHS017 and 17-slot IC698CHS113. It occupies a single I/O slot and does not require a dedicated slot position. No hardware jumper or DIP switch configuration is required — all protocol and port settings are managed through GE Proficy Machine Edition software.

Q2: What pre-shipment testing is performed on each unit?
Each IC698CMX016-ED unit undergoes functional power-on testing and communication port verification before shipment. Units are inspected for physical integrity, connector condition, and firmware revision confirmation. A test report is available upon request. All units are shipped in anti-static packaging with protective connector covers.

Q3: How should I validate compatibility before installing a replacement module in a live system?
Before installation, verify that your Machine Edition project targets the RX7i platform and that the communication module configuration block matches the IC698CMX016 hardware type. In systems with redundant communication paths, the replacement module can be validated offline using a bench rack (IC698CHS017 with a compatible CPU such as IC698CPE020 or IC698CPE030) before being installed in the production cabinet. This eliminates the risk of a misconfigured module causing a communication fault during live replacement.

Q4: What does the 12-month warranty cover, and what is the claims process?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions, including communication port failure, backplane interface faults, and firmware corruption. It does not cover damage resulting from incorrect installation voltage, physical impact, or unauthorized firmware modification. To initiate a warranty claim, contact [email protected] with your order number, a description of the fault, and any available diagnostic logs from Machine Edition. Replacement units are dispatched within 3–5 business days upon claim approval.
