GE Fanuc IS200AEADH4ADA Replacement Solution for Mark VI

Product Overview

GE Fanuc IS200AEADH4ADA Replacement Solution for Mark VI: Seamless Transition from Legacy Exciter Analog I/O Systems

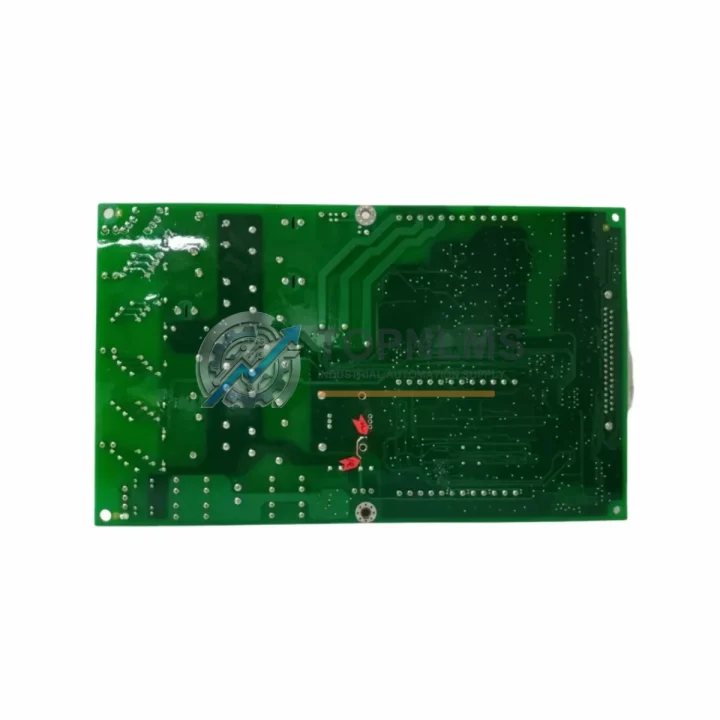

The GE Fanuc IS200AEADH4ADA is a Mark VI Series Exciter Analog I/O Module designed for turbine control and excitation management systems. As GE’s Mark VI platform approaches end-of-life support cycles, many power generation facilities, petrochemical plants, and industrial automation sites are actively seeking reliable replacement and upgrade pathways that minimize engineering rework, preserve existing wiring infrastructure, and reduce unplanned downtime. TOPNLMS supplies the IS200AEADH4ADA as a direct drop-in replacement module, fully tested and backed by a 12-month warranty, ready to ship from our Xiamen warehouse.

The Mark VI turbine control system is a distributed control architecture built around a VME-based backplane. The IS200AEADH4ADA occupies a standard Mark VI I/O rack slot and interfaces with the exciter subsystem via the VCMI (VME Communication Module Interface) backplane bus. When migrating from an earlier Mark V or Mark IV exciter control configuration, engineers must account for differences in the I/O terminal block pinout, the analog signal conditioning range (typically ±10 V or 4–20 mA), and the internal firmware revision compatibility with the IS200ESELH1A or IS200ETURH1A turbine control boards. The IS200AEADH4ADA retains backward-compatible analog channel mapping, which significantly reduces the need for rewiring at the field terminal assembly.

For sites running a mixed Mark VI and Mark VIe architecture, the IS200AEADH4ADA can coexist within the same control cabinet alongside IS200VSVOH1B servo output modules and IS200TRLYH1B relay output modules without requiring additional rack adapters. The module draws power from the standard Mark VI 28 VDC I/O power rail, eliminating the need for a separate power supply module during replacement. This is a critical advantage when working within constrained control cabinet space, where adding a new power distribution module would require panel redesign.

Communication within the Mark VI system relies on the IONet Ethernet-based I/O network, a proprietary GE protocol that links I/O modules to the UCVEH or UCVGH controller boards. The IS200AEADH4ADA communicates exclusively over IONet and does not require separate RS-485 or PROFIBUS configuration. When replacing a failed or end-of-life module, the IONet node address is retained in the controller configuration, meaning no changes to the ToolboxST application software are required in most cases — a significant reduction in commissioning time and risk during live plant maintenance windows.

Field engineers performing the replacement should verify the revision level of the IS200AEADH4ADA against the site’s existing Mark VI hardware compatibility matrix. TOPNLMS provides the hardware revision and firmware baseline upon request prior to shipment, allowing your engineering team to confirm compatibility before the module arrives on site. This pre-shipment verification process is especially important for plants operating under IEC 61511 functional safety requirements, where module substitution must be documented and validated.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful Mark VI exciter system upgrade or emergency replacement rarely involves a single module. In practice, the IS200AEADH4ADA replacement is most effective when coordinated with the surrounding system components. For sites migrating from Mark V, the IS200ETURH1A turbine control board is often replaced simultaneously to ensure IONet compatibility across the entire exciter loop. The IS200VSVOH1B servo output module handles valve positioning signals and is frequently replaced alongside the analog I/O module when the exciter control loop is being fully refurbished.

Power integrity is critical in exciter control applications. The IS200EPCTG1A power converter module provides regulated DC power to the Mark VI I/O rack and should be inspected or replaced when performing a full exciter module swap, particularly in systems that have experienced power transients or capacitor aging. For communication infrastructure, the IS200ESELH1A Ethernet switch module manages IONet traffic within the Mark VI cabinet and is a common companion replacement when network faults are contributing to module failures.

Sites that require signal isolation between the exciter analog outputs and the plant DCS — particularly where ground loops or common-mode noise have been identified — should consider adding DIN-rail mounted signal isolators (such as Phoenix Contact or Weidmüller 4–20 mA isolators) between the IS200AEADH4ADA terminal block and the field wiring. This is a low-cost retrofit that significantly improves signal integrity without modifying the Mark VI configuration.

For plants upgrading the HMI layer alongside the exciter control hardware, the GE Cimplicity SCADA platform communicates with the Mark VI controller via OPC-DA or OPC-UA, and no changes to the IS200AEADH4ADA configuration are required when the HMI server is upgraded. Similarly, if the site is integrating a Bently Nevada 3500 Series vibration monitoring system into the same control cabinet, the IS200AEADH4ADA analog inputs can be configured to accept 4–20 mA proximity probe signals, consolidating I/O within the existing rack without adding a separate I/O chassis.

For complete exciter system overhauls, TOPNLMS can source the IS200TRLYH1B relay output module, IS200VTURH1B turbine I/O module, and associated Mark VI terminal board assemblies as a coordinated kit, reducing procurement lead time and ensuring hardware revision consistency across the replacement set.

Retrofit Guidance FAQ

Q: Can the IS200AEADH4ADA replace a Mark V analog I/O module directly?
A: Not as a direct plug-in replacement. The Mark V uses a different backplane connector and ARCNET-based communication. A Mark VI rack and controller upgrade is required before the IS200AEADH4ADA can be installed. TOPNLMS can advise on the minimum hardware scope for a Mark V-to-Mark VI migration.

Q: Will existing field wiring need to be changed?
A: For Mark VI-to-Mark VI module replacements, existing wiring to the terminal board is retained. For Mark V migrations, the terminal board assembly (TBA) must be replaced, but field cable terminations at the marshalling panel are typically preserved.

Q: Does the replacement module require ToolboxST reconfiguration?
A: In most cases, no. The IONet node address and I/O channel configuration are stored in the controller, not the module. A hot-swap replacement on a redundant system may require only a module insertion and a health check in ToolboxST. Non-redundant systems will require a brief controlled shutdown.

Q: What communication protocols does the IS200AEADH4ADA support?
A: The module communicates exclusively via GE’s proprietary IONet protocol over 100 Mbps Ethernet. It does not natively support PROFIBUS, Modbus, or FOUNDATION Fieldbus. Integration with external DCS systems is handled at the Mark VI controller level via OPC or hardwired I/O.

Q: How much physical space does the module require?
A: The IS200AEADH4ADA occupies one standard Mark VI I/O rack slot. No additional mounting hardware or rack extension is required for a like-for-like replacement within an existing Mark VI cabinet.

Q: Can the module be tested before installation?
A: Yes. TOPNLMS performs functional testing on all modules prior to shipment. Customers may also request a test report. On-site bench testing using a Mark VI rack simulator is recommended before live installation in critical turbine control applications.

Warranty Assurance

Every IS200AEADH4ADA shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Our pre-shipment testing protocol includes power-on functional verification, analog channel calibration check, and IONet communication handshake testing where test equipment permits. Modules that fail to meet specification are quarantined and not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement module dispatch within 3 business days of fault confirmation, minimizing plant downtime. Our after-sales team is reachable via email and phone for technical support during the installation and commissioning phase. We maintain stock of common Mark VI modules to support emergency replacement scenarios with same-week shipping from Xiamen.

For procurement teams requiring documentation, TOPNLMS can provide a certificate of conformance, packing list, and commercial invoice with HS code declaration for customs clearance. All modules are shipped in anti-static packaging with foam protection to prevent transit damage.

TOPNLMS serves industrial buyers across power generation, oil & gas, petrochemical, and manufacturing sectors. Our sourcing network covers GE Fanuc Mark VI, Mark VIe, and related automation hardware, with a focus on obsolete and hard-to-source components that are critical to keeping legacy control systems operational.
