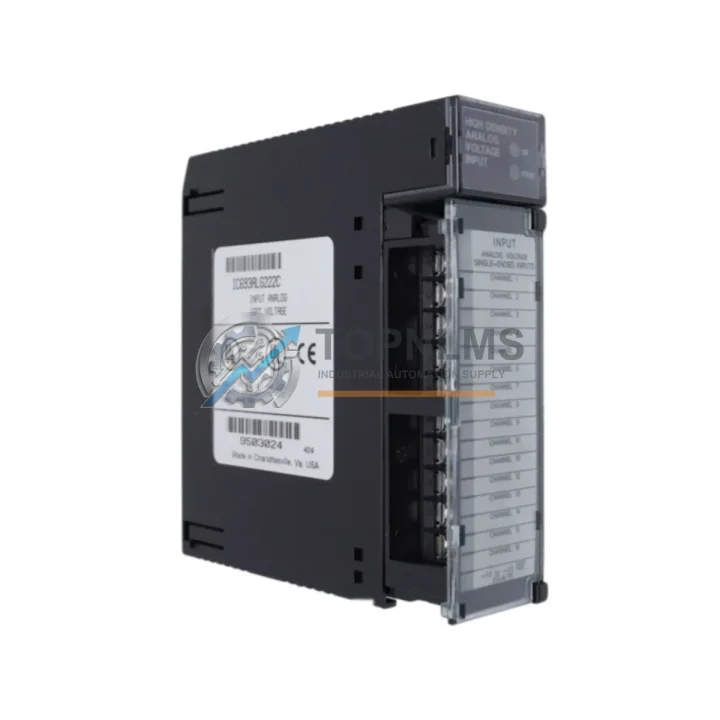

GE Fanuc IC693ALG222C Original Industrial Spare Series 90-30 Compatible

Product Overview

GE Fanuc IC693ALG222C Original Industrial Spare Series 90-30 Compatible: System Stability & Industrial Spare Parts Maintenance Value

The GE Fanuc IC693ALG222C is a 16-channel analog voltage input module engineered for the Series 90-30 PLC platform — one of the most widely deployed programmable logic controller families in global manufacturing, process control, and utility automation. For maintenance engineers managing aging control systems, this module represents a critical line of defense against unplanned downtime. Whether you are responding to an emergency fault, executing a scheduled overhaul, or building a strategic spare parts inventory, the IC693ALG222C delivers the original-specification performance your system demands without requiring costly hardware migration or software reconfiguration.

In industrial facilities where Series 90-30 racks remain the backbone of production lines, the availability of a verified original spare module can mean the difference between a two-hour swap and a two-week procurement crisis. The IC693ALG222C reads up to 16 analog voltage channels simultaneously, converting real-world process signals — temperature transmitters, pressure transducers, flow meters, and position sensors — into digital values the CPU can act upon. Any degradation in this signal chain directly impacts process accuracy, product quality, and safety interlocks. Keeping a tested, ready-to-install IC693ALG222C on the shelf is not a luxury; it is a fundamental element of responsible maintenance planning.

Critical Technical Specs Table

Preventive Maintenance Strategy

A disciplined preventive maintenance program for any Series 90-30 control cabinet extends well beyond replacing a single analog input module. When a technician opens the cabinet to inspect or swap the IC693ALG222C, it is the ideal moment to audit the health of the entire rack assembly. The IC693CHS391 or IC693CHS392 rack chassis should be inspected for cracked backplane connectors and corrosion on the bus contacts — a degraded backplane can cause intermittent faults that are far harder to diagnose than a straightforward module failure.

The IC693PWR321 or IC693PWR330 power supply module deserves particular attention during any planned outage. An aging power supply operating near its thermal limits will cause voltage sag on the backplane, which manifests as erratic analog readings long before the supply fails outright. Replacing or bench-testing the power supply in parallel with the IC693ALG222C swap eliminates a common source of misdiagnosis.

On the digital side, the IC693MDL645 or IC693MDL654 discrete input modules and IC693MDL740 discrete output modules share the same backplane environment. Dust accumulation and vibration-induced connector wear affect all modules equally, so a visual inspection and re-seating of adjacent modules during the same maintenance window costs nothing and prevents future nuisance faults.

For facilities using the IC693CMM321 communications module or IC693CMM311 for Ethernet or serial integration, firmware version alignment between the CPU — typically an IC693CPU374 or IC693CPU364 — and the communications module should be verified after any rack-level maintenance. A mismatch introduced during a hurried repair can cause network dropouts that are difficult to trace back to the maintenance event.

Field wiring terminations at the IC693ALG222C’s terminal block should be torqued to specification and inspected for oxidation, particularly in humid or chemically aggressive environments. At the same time, signal cables running to transmitters and sensors should be checked for insulation damage and proper shielding continuity. A compromised shield on an analog signal cable will introduce noise that no amount of module replacement will resolve. Keeping a stock of compatible IC693ACC300 terminal block accessories and shielded signal cables alongside the IC693ALG222C spare ensures a complete, rapid restoration capability.

Strategic Replacement Solutions

The IC693ALG222C is a direct, slot-compatible replacement for earlier IC693ALG222 and IC693ALG222B revisions. No hardware modification, no rack rewiring, and no CPU program changes are required — the module is recognized automatically by the Series 90-30 CPU upon power-up, provided the hardware configuration in the Logicmaster 90 or Proficy Machine Edition project matches the installed slot assignment. This backward compatibility is one of the most operationally valuable characteristics of the IC693 family: a facility that standardized on Series 90-30 in the 1990s can still source original-specification replacement modules today, extending the productive life of the control system by years or even decades without a disruptive platform migration.

For plants managing multiple Series 90-30 racks across different production lines, a centralized spare parts strategy — holding one IC693ALG222C per rack type, alongside a power supply and a CPU spare — dramatically reduces mean time to repair (MTTR). When a module fails at 2:00 AM during a critical production run, the value of a pre-tested, shelf-ready spare is measured not in the cost of the module but in the cost of every hour the line stands idle. Our IC693ALG222C units are tested prior to shipment, packaged in anti-static protection, and shipped with documentation confirming functional verification.

Support FAQ

Q1: Is the IC693ALG222C compatible with all Series 90-30 CPU revisions?
Yes. The IC693ALG222C is compatible with all IC693 Series 90-30 CPUs, including the IC693CPU331, IC693CPU341, IC693CPU351, IC693CPU364, and IC693CPU374. The module is configured via the hardware configuration tool in Logicmaster 90-30 or Proficy Machine Edition; no special firmware is required on the CPU side.

Q2: How do you verify the module is functional before installation?
Each IC693ALG222C unit undergoes functional testing prior to shipment. Testing includes backplane communication verification, channel-by-channel analog input response checks across the full ±10 VDC range, and isolation integrity confirmation. A test report is available upon request. We recommend performing a bench power-up test in a spare rack before installing the module in a live production environment.

Q3: What is the warranty coverage and what does it include?
All IC693ALG222C units are covered by a 12-month warranty from the date of shipment. The warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. In the event of a warranty claim, we provide advance replacement to minimize your downtime exposure.

Q4: Can I use the IC693ALG222C as a long-term inventory spare for an end-of-life system?
Absolutely. The IC693ALG222C is an ideal long-term inventory spare for facilities committed to extending the operational life of their Series 90-30 infrastructure. Stored in a climate-controlled environment in its original anti-static packaging, the module has an indefinite shelf life. We recommend a periodic bench-test every 24–36 months for spares held longer than three years to confirm continued functionality before a critical need arises.
