GE Fanuc IC676PBI008 Replacement for Series 90 Remote I/O

Product Overview

GE Fanuc IC676PBI008 Replacement for Series 90 Remote I/O: Seamless Transition & Legacy System Upgrade

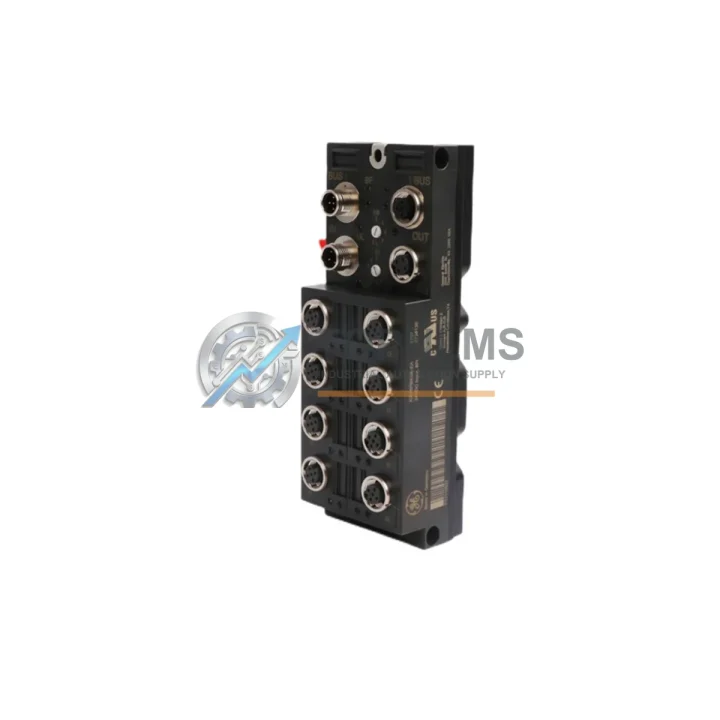

The GE Fanuc IC676PBI008 is an IP67-rated 8-point digital input block designed for the Series 90 Remote I/O platform. For facilities running aging GE Series 90-30 or Series 90-70 distributed control architectures, this module represents the most direct and lowest-risk path to restoring or modernizing field-level digital input capability without requiring a full system redesign. Whether you are replacing a failed unit, building a spare-parts buffer, or executing a phased migration away from discontinued hardware, the IC676PBI008 delivers the wiring compatibility, communication protocol alignment, and physical form factor your existing control cabinet demands.

Industrial plants that have operated GE Fanuc Series 90 Remote I/O networks for more than a decade frequently encounter the challenge of sourcing replacement modules as original production runs end. The IC676PBI008 addresses this directly: it retains the same 8-point 24 VDC digital input configuration, the same IP67 environmental sealing for harsh or wet-area installations, and the same Remote I/O bus interface that your existing IC660CBB902 or IC660CBB903 coaxial bus cables already terminate into. Field technicians can swap the module without re-pulling cable or re-terminating field wiring, dramatically reducing planned maintenance windows and eliminating the risk of wiring errors during replacement.

From a communication protocol standpoint, the IC676PBI008 operates natively on the GE Series 90 Remote I/O bus, which uses a proprietary coaxial token-passing protocol managed by the Remote I/O Scanner housed in the main rack — typically an IC660ELB912 or equivalent bus interface unit. No gateway, protocol converter, or additional configuration is required. The module is recognized automatically by the existing PLC program running on a Series 90-30 CPU such as the IC693CPU374 or IC693CPU375, provided the rack and slot addressing in the hardware configuration matches the physical installation. This means your Logicmaster 90 or Proficy Machine Edition ladder logic program requires zero modification for a like-for-like replacement.

For sites undertaking a broader control system modernization — migrating from a Series 90-30 rack to a PACSystems RX3i platform — the IC676PBI008 can continue to serve as a field I/O node during the transition period. The PACSystems RX3i CPU, such as the IC695CPU315, supports a Series 90 Remote I/O Scanner module (IC695RMX128) that maintains backward compatibility with the existing Remote I/O bus. This allows engineers to upgrade the main controller rack, introduce Ethernet-based SRTP or EGD communications at the supervisory level, and retain all existing field wiring and I/O blocks — including the IC676PBI008 — without a single field termination change. The migration can proceed zone by zone, shift by shift, with no forced production shutdown.

Physical installation compatibility is equally important. The IC676PBI008 mounts directly to the standard GE Series 90 Remote I/O bus block rail system. Its compact IP67 housing is designed for panel-external or junction-box mounting in environments where the control cabinet cannot be located close to the machine. The module’s M12 or equivalent field connector interface matches the existing sensor wiring harnesses used with proximity switches, limit switches, and pushbutton inputs throughout the production line. No adapter plates, no bracket modifications, and no additional DIN rail hardware are required.

Power supply compatibility is straightforward: the IC676PBI008 draws its logic power from the Remote I/O bus itself, while field-side 24 VDC input power is supplied locally from the same panel power distribution that feeds adjacent field devices. If your existing installation uses a IC660TBD024 terminal block or similar field-side power distribution component, the wiring scheme carries over without change. For sites that have already standardized on a 24 VDC distributed power architecture using DIN-rail power supplies from the same control cabinet, no additional power infrastructure is needed.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration or replacement project rarely involves a single module in isolation. When replacing or upgrading around the IC676PBI008, the following components are most commonly required in the same project scope:

The IC660CBB902 coaxial bus cable is the physical backbone of the Series 90 Remote I/O network. If the existing cable shows signs of insulation degradation or connector corrosion — common in installations over ten years old — replacing it alongside the I/O block eliminates a latent fault source. Similarly, the IC660ELB912 bus interface unit at the head-end of each Remote I/O drop should be inspected and replaced if the module swap does not resolve communication faults.

On the controller side, sites running an IC693CPU374 or IC693CPU375 CPU in a Series 90-30 rack may find that the CPU firmware version affects Remote I/O scanner compatibility. Pairing the IC676PBI008 replacement with a firmware-verified CPU ensures stable bus communication from day one. For sites migrating to PACSystems, the IC695RMX128 Remote I/O Scanner module is the critical bridge component that allows the new RX3i rack to continue managing the existing field I/O bus without any field rewiring.

Digital output capability in the same installation zone is typically handled by the companion IC676PBO008 8-point digital output block, which shares the same IP67 housing, bus interface, and mounting rail as the IC676PBI008. Replacing both input and output blocks during the same maintenance window minimizes future downtime risk. For analog signal acquisition in the same field zone, the IC676PCA000 analog input block integrates into the same Remote I/O bus segment.

Programming and commissioning support requires a compatible IC690ACC901 programming cable or Ethernet-based connection to the CPU, along with Proficy Machine Edition software for hardware configuration updates. If the site uses an IC693MDL655 or similar discrete I/O module in the main rack for local I/O, its configuration in the hardware tree must be verified to ensure slot addressing does not conflict with the Remote I/O scanner’s address map after the field block replacement. Signal isolation between the field 24 VDC loop and the control system logic is maintained by the module’s internal optocoupler isolation, eliminating the need for external signal isolators in standard installations.

Retrofit Guidance FAQ

Q: Do I need to re-terminate field wiring when replacing a failed IC676PBI008?
A: No. The IC676PBI008 uses the same field connector interface as the original unit. Disconnect the connector block, remove the failed module, install the replacement, and reconnect. No individual wire re-termination is required.

Q: Will my existing PLC program need to be modified?
A: Not for a like-for-like replacement. The module occupies the same rack and slot address in the hardware configuration. If you are migrating to a PACSystems RX3i platform, the hardware configuration in Proficy Machine Edition must be updated to reflect the new CPU and scanner, but the ladder logic itself typically requires no changes for standard discrete I/O.

Q: Is the IC676PBI008 compatible with both Series 90-30 and Series 90-70 controllers?
A: Yes. The Series 90 Remote I/O bus is common across both platforms. The module communicates with any Series 90 Remote I/O Scanner regardless of whether the host CPU is a 90-30 or 90-70 rack.

Q: Can this module be used with a PACSystems RX3i controller?
A: Yes, via the IC695RMX128 Remote I/O Scanner module installed in the RX3i rack. This scanner maintains full backward compatibility with the Series 90 Remote I/O bus, allowing the IC676PBI008 to operate as a field node under the new controller without any field-side changes.

Q: What is the physical space requirement for installation?
A: The IC676PBI008 mounts on the standard Series 90 Remote I/O bus block rail. No additional panel space beyond the existing rail footprint is required for a direct replacement. The IP67 housing is suitable for external panel or junction box mounting.

Q: How is the module powered?
A: Logic power is supplied via the Remote I/O bus. Field-side 24 VDC input power is supplied locally from the panel power distribution. No separate logic power supply is required at the module level.

Q: What communication protocol does the module use, and is a gateway required?
A: The module uses the GE Series 90 proprietary Remote I/O token-passing protocol over coaxial cable. No gateway or protocol converter is required when connecting to a Series 90 or PACSystems RX3i controller equipped with the appropriate Remote I/O Scanner.

Warranty Assurance

Every IC676PBI008 unit shipped from TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to shipment, each unit undergoes functional verification including bus communication testing, input point actuation testing, and visual inspection for connector integrity and housing condition. Units that do not pass verification are not shipped.

In the event of a warranty claim, TOPNLMS provides replacement dispatch within 3 business days of fault confirmation. Our technical support team is available to assist with installation verification, communication fault diagnosis, and hardware configuration guidance to ensure the replacement unit is commissioned correctly on the first attempt.

For procurement teams managing spare-parts programs, we offer multi-unit stocking orders with consolidated shipping to minimize per-unit freight cost. Lead time for in-stock units is typically 3–7 business days to major industrial hubs in China, with international shipping available on request. All units are shipped with appropriate ESD-protective packaging and documentation.

Contact our team for volume pricing, technical pre-sales consultation, or expedited shipping arrangements.
