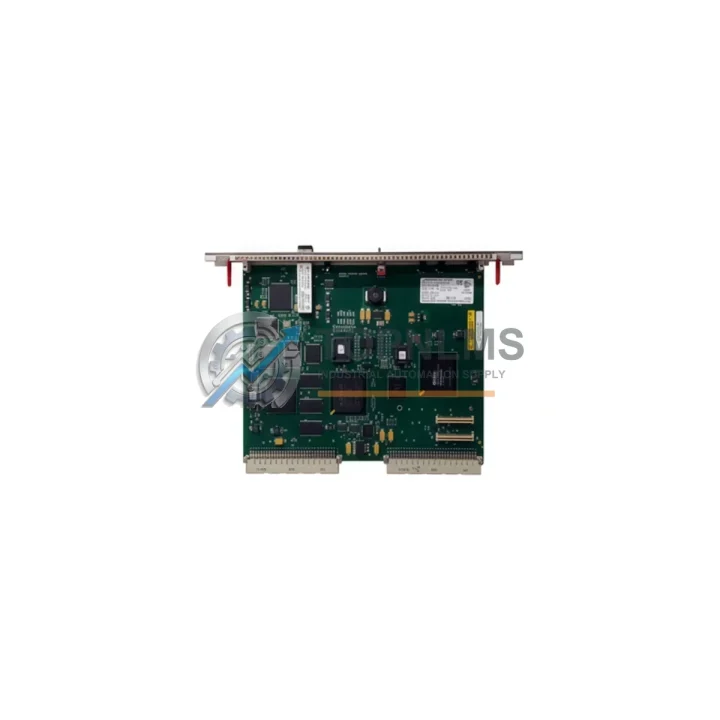

GE Fanuc IC695CMM004LT Ruggedized Serial Comms Module: Industrial Resilience for Harsh Environments

The GE Fanuc IC695CMM004LT is a 4-port serial communications module engineered for the PACSystems RX3i platform, purpose-built to sustain reliable data exchange in the most demanding industrial environments. Whether deployed in high-temperature foundries, high-humidity coastal processing plants, dust-laden mining galleries, or vibration-intensive heavy manufacturing lines, this module delivers consistent, interference-free serial communication where system uptime is non-negotiable.

Designed to operate within the RX3i universal backplane architecture, the IC695CMM004LT supports RS-232 and RS-485/422 protocols across all four ports simultaneously, enabling seamless integration with legacy field devices, third-party PLCs, variable frequency drives, and SCADA host systems. Its robust hardware design incorporates optical isolation on communication ports, protecting the controller backplane from ground loops, voltage transients, and electromagnetic interference (EMI) commonly generated by high-power motor drives, arc welding equipment, and large transformer banks found in heavy industry.

In continuous production environments — petrochemical refineries, power generation facilities, water treatment plants, and steel mills — communication interruptions between the PACSystems RX3i CPU and field instrumentation can cascade into costly unplanned shutdowns. The IC695CMM004LT eliminates this risk by maintaining stable serial links to remote I/O racks, intelligent motor controllers, flow computers, and safety instrumented system (SIS) gateways even under sustained electrical noise conditions. Its wide operating temperature range and conformal-coated PCB construction ensure long-term reliability without derating in ambient temperatures up to 60 °C.

Rugged Specifications Table

Comprehensive Protection Solutions

The IC695CMM004LT is most effective when integrated as part of a complete, hardened control architecture. In a typical PACSystems RX3i cabinet, it works in concert with the IC695CPU310 or IC695CPU315 central processing unit, which handles ladder logic execution and coordinates all module communications across the backplane. Power integrity for the entire rack is maintained by the IC695PSA040 or IC695PSD040 power supply modules, which provide regulated 24 VDC backplane power with built-in overvoltage and short-circuit protection — critical in environments where utility power quality is poor.

For discrete and analog field signal acquisition, the IC695CMM004LT operates alongside IC694MDL754 discrete output modules and IC695ALG600 analog input modules, collectively forming a tightly integrated I/O subsystem. Where Profibus DP or Ethernet/IP connectivity is also required, the IC695PBM300 Profibus master module and IC695ETM001 Ethernet interface module can be installed in adjacent backplane slots, allowing the RX3i system to simultaneously manage serial legacy devices through the CMM004LT and modern networked field devices through dedicated fieldbus modules.

In safety-critical zones — such as SIL 2 rated process areas in chemical plants or offshore platforms — the IC695CMM004LT is commonly paired with IC695STK001 system configuration kits and external safety relay modules to ensure that serial communication faults trigger safe-state outputs rather than undefined behavior. Terminal block assemblies such as the IC694TBB032 provide secure, vibration-resistant field wiring termination points, reducing the risk of intermittent connections caused by mechanical shock on mobile or rail-mounted equipment.

Application in Critical Infrastructure

In oil and gas upstream operations, the IC695CMM004LT is deployed in wellhead control panels and pipeline SCADA RTUs, where it maintains serial Modbus RTU links to pressure transmitters, flow computers, and emergency shutdown (ESD) valve actuators. Its optical port isolation prevents ground potential differences between field instruments and the control room from corrupting data frames — a common failure mode in geographically distributed pipeline systems.

In power generation and substation automation, the module provides serial connectivity to protective relays, energy meters, and excitation controllers that still use RS-485 DNP3 or IEC 60870-5-101 protocols. Utilities rely on its deterministic communication timing to ensure that relay coordination data reaches the PACSystems CPU within the sub-second windows required for grid protection schemes.

In mining and mineral processing, the IC695CMM004LT withstands the extreme vibration, coal dust ingress, and high-voltage EMI generated by dragline excavators, conveyor drive systems, and ball mill motor starters. Its conformal coating and wide temperature tolerance allow it to operate reliably in surface and underground installations without requiring pressurized enclosures.

In water and wastewater treatment, the module connects PACSystems RX3i controllers to chlorination dosing pumps, UV disinfection units, and SCADA historian servers via RS-232 serial links, supporting continuous 24/7 operation with no scheduled maintenance windows. Municipal utilities value its long-term availability as a stocked spare part, reducing mean time to repair (MTTR) when field replacements are needed.

In metallurgy and steel production, where furnace operations generate intense electromagnetic fields, the IC695CMM004LT’s isolated ports prevent induced voltages from disrupting serial data streams between the RX3i controller and pyrometers, ladle tracking systems, and rolling mill speed references — maintaining process consistency and worker safety simultaneously.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is a claim processed?
The 12-month warranty covers all manufacturing defects, component failures, and functional non-conformance under normal operating conditions. If a module fails within the warranty period, TOPNLMS will arrange a replacement or full refund after remote diagnosis confirmation. Claims are initiated by contacting [email protected] with the order number and a description of the fault symptom.

Q2: How is each IC695CMM004LT tested before shipment?
Every unit undergoes a multi-stage inspection protocol: visual inspection for physical damage, power-on functional test confirming backplane communication and port initialization, and protocol loopback testing on all four serial ports. Units that fail any stage are quarantined and not shipped. A test report is available upon request for critical infrastructure procurement.

Q3: Is this module compatible with all PACSystems RX3i backplane configurations?
Yes. The IC695CMM004LT is compatible with all standard RX3i universal backplanes including the IC695CHS007 (7-slot), IC695CHS012 (12-slot), and IC695CHS016 (16-slot). It occupies a single backplane slot and requires no external power connections. It is not compatible with the older Series 90-30 (IC693) or Series 90-70 (IC697) backplanes.

Q4: Can long-term supply continuity be guaranteed for ongoing maintenance contracts?
TOPNLMS maintains dedicated safety stock of high-demand PACSystems RX3i modules including the IC695CMM004LT to support long-term maintenance and service agreements. For customers with multi-year maintenance contracts or large installed base requirements, volume reservation arrangements are available. Contact our team to discuss scheduled delivery programs that align with your planned maintenance outage windows.
