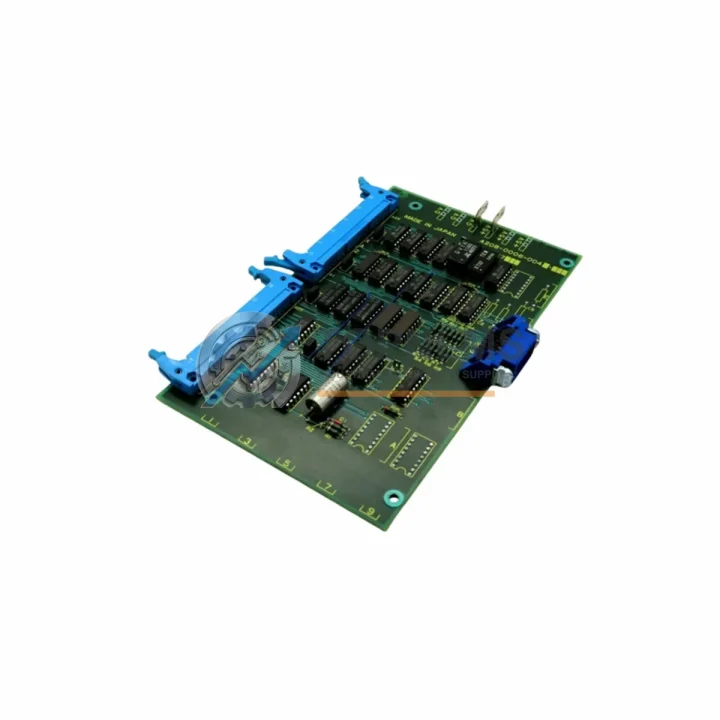

GE Fanuc A20B-0006-0040 Replacement/Upgrade Solution

Product Overview

GE Fanuc A20B-0006-0040 Replacement/Upgrade Solution: Seamless Transition from Legacy CNC Control Systems

The GE Fanuc A20B-0006-0040 is a critical CNC control PCB widely deployed in FANUC-based machine tool control systems across precision machining, milling, turning, and multi-axis manufacturing environments. As this board reaches end-of-life and original spare inventory becomes increasingly scarce, facilities running legacy FANUC 0, FANUC 3, FANUC 6, or early FANUC 10/11/12 series CNC controllers face mounting pressure to source reliable, tested replacements that preserve existing wiring, ladder logic, and machine configurations without forcing a full controller overhaul.

TOPNLMS supplies the A20B-0006-0040 as a direct replacement PCB, sourced from verified industrial channels, fully inspected, and backed by a 12-month warranty. Our stock is maintained in Xiamen and ships globally, with expedited options available to minimize production downtime for urgent retrofit and maintenance scenarios.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration from a failed or aging A20B-0006-0040 board rarely involves the PCB alone. In practice, field engineers replacing this control board often simultaneously address adjacent components that share the same service interval or have been stressed by the same root-cause failure. During the retrofit process, the A16B-1212-0901 FANUC power supply module is frequently inspected and replaced if output ripple is out of tolerance, since a degraded PSU is a common upstream cause of PCB failure. Similarly, the A20B-0008-0540 CPU board — which works in tandem with the A20B-0006-0040 in multi-board FANUC controller configurations — is evaluated for firmware compatibility and replaced if the revision level is mismatched.

On the I/O side, technicians often replace the A03B-0807-C011 digital I/O module or equivalent I/O base units to ensure signal integrity between the newly installed control PCB and the machine’s field devices. Where the machine uses FANUC’s serial spindle drive architecture, the A06B-6096-H208 spindle amplifier module is checked for alarm history and replaced proactively if fault logs indicate recurring overcurrent or communication errors with the control board.

For machines that rely on FANUC’s FSSB (FANUC Serial Servo Bus) architecture, the A20B-2002-0540 servo control board is another component commonly upgraded in the same maintenance window, ensuring the servo loop remains synchronized with the new control PCB. Facilities upgrading from older FANUC 0-series to a modernized A20B-series platform also frequently install a new A02B-0236-B501 MDI/CRT unit or equivalent operator panel to improve HMI usability without replacing the entire controller chassis.

Where communication with upstream SCADA or MES systems is required, the A20B-0006-0040 replacement is often paired with a FANUC Data Server board or a third-party RS-232/RS-485 protocol converter to bridge legacy FANUC serial output to modern Ethernet-based factory networks. Finally, for installations where the control cabinet has aged wiring, a FANUC I/O Link cable assembly or terminal block module is replaced alongside the PCB to eliminate intermittent contact faults that could otherwise be misdiagnosed as board-level failures after the repair.

Retrofit Guidance FAQ

Q: Can I install the A20B-0006-0040 without modifying my existing wiring harness?
A: Yes. The A20B-0006-0040 uses the standard FANUC connector layout. Your existing OEM cable harness connects directly without re-pinning or adapter boards, provided the harness is in serviceable condition.

Q: Will my existing CNC ladder logic and parameters transfer to the replacement board?
A: Parameters, tool offsets, and PMC ladder programs stored in the CNC memory (battery-backed SRAM) are held in the controller’s memory unit, not on this PCB. Back up all parameters via RS-232 or FANUC BOOT screen before replacement. After installation, restore from backup — no reprogramming of the PCB itself is required.

Q: What communication protocols does this board support?
A: The A20B-0006-0040 operates within the FANUC proprietary serial bus environment (FSSB and I/O Link). It is not an Ethernet or fieldbus card. If your modernization plan requires EtherNet/IP or PROFIBUS connectivity, a separate communication module must be added to the controller rack.

Q: How much physical space does the replacement require in the control cabinet?
A: The board occupies a standard FANUC rack slot. No additional DIN rail space or cabinet modification is needed. Verify slot availability in your specific FANUC controller chassis before ordering if your rack is fully populated.

Q: What fault codes typically indicate this board needs replacement?
A: Common indicators include FANUC alarm codes 401 (servo alarm), 404, 417, 420, repeated watchdog resets, blank CRT/MDI display, or failure to complete the power-on self-test (POST). Always rule out PSU voltage issues before condemning the PCB.

Q: Is this board compatible with both GE Fanuc and FANUC-branded controllers?
A: Yes. The A20B-0006-0040 was produced during the GE Fanuc joint-venture period and is electrically and mechanically identical to FANUC-branded equivalents of the same part number. It is compatible with both GE Fanuc and FANUC-labeled controller cabinets of the applicable series.

Warranty Assurance

Every A20B-0006-0040 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each board undergoes a multi-point outgoing inspection including visual examination for component damage, connector integrity check, and functional power-on verification where test fixtures are available. Units that do not pass inspection are quarantined and not shipped.

In the event of a warranty claim, TOPNLMS provides replacement support with priority processing. Our after-sales response target is within 1 business day for warranty inquiries. Customers are not required to return the defective unit before a replacement is dispatched in confirmed warranty cases, subject to case review. All warranty claims are handled directly — no third-party intermediary.

For procurement teams, we can provide a product test report, packing list, and commercial invoice upon request. Bulk orders for MRO stocking programs are welcome, and volume pricing is available for orders of 3 units or more. Lead time for in-stock units is typically 1–3 business days for standard international shipping.

Contact our technical sales team for compatibility confirmation, cross-reference verification, or urgent replacement support before placing your order.
