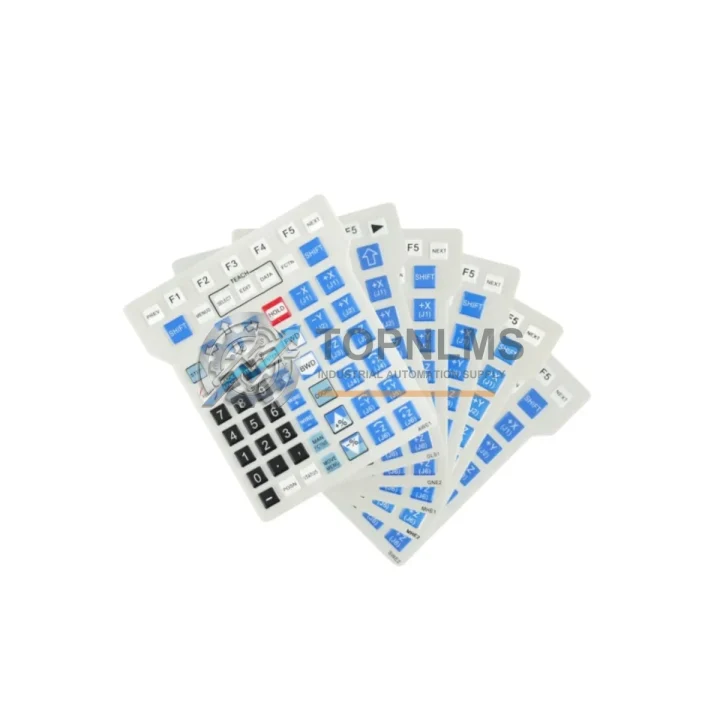

Fanuc MHE2 MHE1 GLS1 Replacement/Upgrade Solution for 0i/16i/18i/30i

Product Overview

Fanuc MHE2 MHE1 GLS1 Replacement/Upgrade Solution for 0i/16i/18i/30i: Smooth Transition & Legacy System Compatibility

When a Fanuc CNC operator panel begins to show wear — scratched display surfaces, degraded touch sensitivity, or a cracked protective film — unplanned downtime becomes an immediate operational risk. The Fanuc MHE2 MHE1 GLS1 CNC Operator Panel Screen Protector is a precision-matched replacement and upgrade solution engineered for direct compatibility with Fanuc Series CNC control systems, including legacy and current-generation operator panels. Whether you are maintaining a long-running machining center, retrofitting an aging CNC lathe, or building a spare-parts inventory for a multi-machine shop floor, this screen protector delivers a smooth, zero-modification installation that restores panel clarity and operator usability without requiring any rewiring, software changes, or mechanical adaptation.

Fanuc’s MHE2, MHE1, and GLS1 operator panel families are widely deployed across turning centers, machining centers, and grinding machines running Fanuc 0i, 16i, 18i, 21i, and 30i/31i/32i series CNC controllers. Over years of continuous operation, the original protective film on these panels deteriorates due to coolant exposure, abrasive contact, and UV degradation. Sourcing a compatible replacement from a verified channel — with confirmed dimensional accuracy and optical clarity — is critical to maintaining operator visibility and touch-panel responsiveness. This replacement film is dimensionally identical to the OEM specification, ensuring a bubble-free, adhesive-secure fit on the MHE2, MHE1, and GLS1 panel glass without any trimming or modification. For facilities managing planned upgrades from discontinued panel configurations, this item serves as a cost-effective bridge solution that extends service life while capital planning for full panel modernization proceeds.

Compatibility Comparison Table

Seamless Upgrade Solutions

A screen protector replacement is frequently the entry point for a broader operator panel refurbishment or CNC system modernization project. Maintenance engineers sourcing the MHE2 MHE1 GLS1 protective film are often simultaneously addressing adjacent wear items within the same control cabinet. The Fanuc MDI keyboard unit — the membrane keypad assembly mounted directly below or beside the operator panel — is a common co-replacement item, as keypad wear and panel film degradation typically occur on the same maintenance cycle. If the underlying display has developed dead pixels or backlight failure, the Fanuc LCD display unit (8.4-inch or 10.4-inch depending on panel generation) may also require replacement, and sourcing both items together minimizes repeat downtime events.

For shops running Fanuc 0i-D or 0i-F series controllers, the Fanuc A02B series operator panel assembly is the structural host for the MHE2 and GLS1 film. Ensuring the replacement film is sourced alongside a verified panel body prevents mismatched fitment during installation. In multi-axis machining centers where the CNC cabinet also houses a Fanuc servo amplifier module (such as the αi-B or βi-S series), technicians frequently use the panel downtime window to inspect and clean servo drive cooling vents, converting what would be an emergency repair into a structured preventive maintenance visit.

Facilities upgrading from older Fanuc 16i or 18i systems toward the 30i/31i/32i platform will find that the Fanuc PANEL i operator station — a modern touchscreen-based HMI — is the long-term migration target. The MHE2/GLS1 film replacement extends the service life of existing panels during this transition period, deferring capital expenditure on full panel replacement while the upgrade roadmap is finalized. During this interim phase, the Fanuc I/O Link module and Fanuc FSSB fiber optic cable assembly should also be inspected, as these communication links between the CNC controller and servo drives are sensitive to vibration and coolant ingress in aging cabinets — and their condition directly affects system stability after any panel-level intervention.

For facilities managing a fleet of Fanuc-controlled machines, maintaining a buffer stock of the MHE2 MHE1 GLS1 screen protector — alongside spare Fanuc battery units (A02B-0323-K102 or equivalent SRAM backup batteries) and Fanuc CF cards for parameter backup — is a recognized best practice that minimizes mean time to repair (MTTR) when operator panel issues arise during production shifts. The Fanuc programming cable (RS-232 or USB-to-RS232 adapter for DNC communication) is another standard spare that maintenance teams keep on hand when performing any panel-level service, enabling rapid parameter upload and verification after any hardware intervention. Procurement teams sourcing this item for multi-site operations are encouraged to contact TOPNLMS for volume pricing and consignment stock arrangements.

Retrofit Guidance FAQ

Q: Does replacing the screen protector require any CNC parameter changes or machine re-homing?
A: No. The MHE2 MHE1 GLS1 screen protector is a purely mechanical surface replacement. It does not interact with the CNC control software, servo parameters, or axis data. No parameter backup, re-homing, or tool offset re-entry is required after installation.

Q: Is the replacement film compatible with both touch-type and non-touch Fanuc operator panels?
A: Yes. The film is optically clear and dimensionally matched to the MHE2, MHE1, and GLS1 panel glass. For touch-enabled panels, the film’s optical adhesive layer is thin enough to maintain full capacitive or resistive touch sensitivity without calibration adjustment.

Q: Will this film fit panels installed in third-party control cabinets or OEM machine builder enclosures?
A: The film is sized to the Fanuc panel glass dimensions, not the machine builder’s cabinet cutout. As long as the operator panel unit itself is a genuine Fanuc MHE2, MHE1, or GLS1 assembly, the film will fit regardless of the surrounding cabinet manufacturer — including Mazak, Okuma OEM Fanuc variants, and Haas Fanuc-based systems.

Q: What is the installation procedure and estimated downtime?
A: Installation requires no tools. Clean the panel glass surface with an IPA wipe, peel the backing from the replacement film, align to the panel edges, and apply with light pressure from center to edges to eliminate air bubbles. Estimated installation time is under 5 minutes. Machine downtime is limited to the duration of the panel cleaning and film application — making this one of the lowest-impact replacement procedures in CNC panel maintenance.

Q: Can this be used as a preventive replacement before the original film fails?
A: Yes, and this is recommended practice. Replacing the protective film during a scheduled maintenance window — rather than waiting for failure — prevents operator visibility degradation and avoids unplanned downtime. Many facilities include screen protector replacement in their annual CNC preventive maintenance checklist alongside battery replacement and parameter backup verification.

Q: Is this compatible with Fanuc systems using FSSB or I/O Link communication architectures?
A: The screen protector has no interaction with FSSB, I/O Link, or any other communication protocol used by the Fanuc CNC system. Communication architecture — including FSSB fiber optic servo bus, I/O Link for distributed I/O, and HSSB for PC connection — is entirely unaffected by this surface-level replacement.

Q: What if I am migrating from a discontinued Fanuc panel model and need to confirm fitment?
A: Contact our technical pre-sales team with your panel model number and CNC series. We will confirm compatibility before order placement. For discontinued models where OEM documentation is unavailable, we can cross-reference against our fitment database to identify the correct replacement SKU.

Warranty Assurance

Every Fanuc MHE2 MHE1 GLS1 CNC Operator Panel Screen Protector shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to shipment, each unit undergoes dimensional verification and optical clarity inspection to confirm it meets the fitment and performance specifications required for Fanuc operator panel applications. In the event of a defect in materials or workmanship identified within the warranty period, TOPNLMS will provide a replacement unit at no additional cost, with priority processing to minimize your operational impact.

Orders are processed and dispatched from our Xiamen warehouse, with standard lead times of 1–3 business days for in-stock items. Express shipping options are available for urgent replacement requirements. All shipments include full tracking information and are packaged to prevent transit damage to the film surface. For B2B customers managing multi-site maintenance programs, volume pricing and consignment stock arrangements are available upon request — contact our industrial automation parts team to discuss your procurement requirements.
