FANUC A05B-2301-C300 Ruggedized Teach Pendant for Harsh Environments

Product Overview

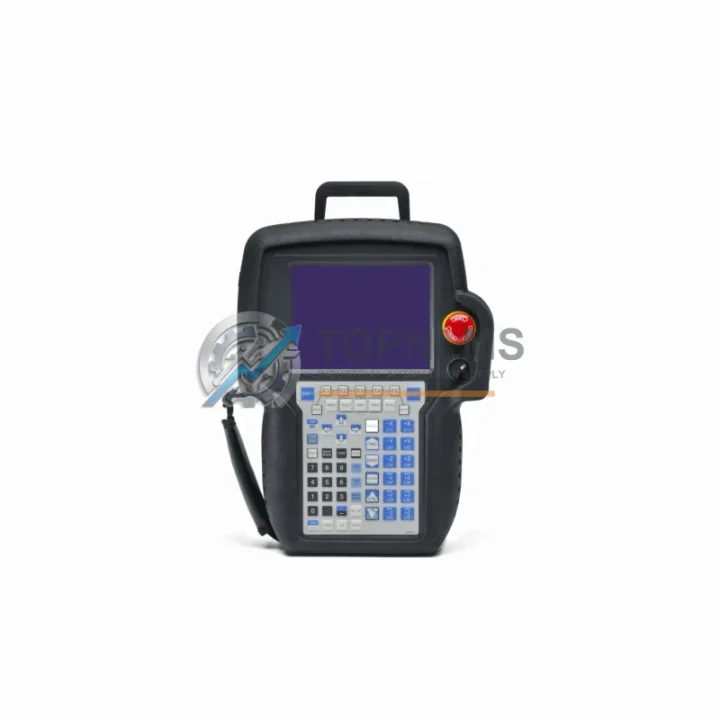

FANUC A05B-2301-C300 Ruggedized Teach Pendant for Harsh Environments

The FANUC A05B-2301-C300 is a factory-hardened, C-Series robot teach pendant engineered to deliver uncompromising operator control and programming reliability in the most demanding industrial environments. Designed as the primary human-machine interface for FANUC C-Series robot controllers, this unit withstands continuous exposure to high ambient temperatures, elevated humidity, airborne particulates, mechanical vibration, and broadband electromagnetic interference — conditions routinely encountered in automotive body shops, foundry lines, arc-welding cells, heavy-press stamping areas, and large-scale material-handling installations.

Unlike consumer-grade HMI devices, the A05B-2301-C300 is purpose-built for 24/7 production uptime. Its sealed enclosure, reinforced cable assembly, and shock-dampened keypad matrix ensure that every teach point, program edit, and safety override is executed with precision — even when the surrounding environment is hostile to electronics. For facilities operating FANUC R-30iA, R-30iB, or R-30iB Plus controllers, this pendant is a direct, validated replacement that eliminates costly re-commissioning and requalification cycles.

Rugged Specifications Table

Comprehensive Protection Solutions

The A05B-2301-C300 teach pendant operates as the command hub of a broader FANUC robot system, and its reliability is inseparable from the health of the surrounding control architecture. In a typical FANUC robotic cell, the pendant interfaces directly with the FANUC R-30iB Plus controller cabinet, which houses the main CPU board, servo amplifier modules, and I/O unit assemblies. Servo drive cards such as the A06B-6117 series amplifier modules translate the motion programs entered via the teach pendant into precise axis movements, making the integrity of the pendant-to-controller communication link mission-critical.

On the power conditioning side, the A16B-2203 series power supply board within the controller cabinet must maintain stable DC rails under fluctuating factory loads. Any voltage instability can corrupt teach pendant communication packets, leading to false alarms or unplanned stops. Similarly, the A20B-2101 series main CPU board processes all pendant inputs in real time; a degraded or counterfeit pendant can introduce latency that compromises cycle time and, more critically, safety response time.

For facilities running multi-robot cells, the teach pendant also interacts with FANUC DCS (Dual Check Safety) safety modules embedded in the controller, which enforce speed limits, position boundaries, and tool orientation constraints. The A05B-2301-C300’s integrated three-position deadman enable switch is a hardware-level safety input recognized by DCS logic — a feature that cannot be replicated by generic or non-OEM pendants without full safety revalidation.

In welding applications, the pendant coordinates with FANUC ArcTool and SpotTool software packages and communicates weld schedule parameters to external welding power sources via DeviceNet and EtherNet/IP fieldbus communication modules installed in the R-30iB I/O rack. Maintaining a genuine, fully compatible A05B-2301-C300 ensures that all fieldbus handshake sequences execute correctly, preventing weld defects caused by timing mismatches. Peripheral components such as A03B-0819 series I/O modules, A05B-2350 series force sensors, A290-7221 series connector kits, and A06B-6096 series servo amplifier units all depend on accurate teach pendant programming for correct calibration and safe operation. In high-density control cabinets, the A02B-0323 series terminal block modules provide the structured wiring backbone that keeps signal integrity intact across every I/O channel the pendant commands.

Application in Critical Infrastructure

The FANUC A05B-2301-C300 teach pendant is deployed across a wide spectrum of critical industrial infrastructure where robot downtime carries severe operational and financial consequences.

In automotive manufacturing — body-in-white welding lines, door-panel assembly, and underbody sealing — the pendant is used daily by process engineers to fine-tune weld paths, adjust TCP (Tool Center Point) offsets, and respond to fixture change-overs. A failed or damaged pendant on a high-volume line can halt hundreds of vehicles per shift, making rapid spare-part availability a non-negotiable procurement requirement.

In oil and gas processing facilities, FANUC robots equipped with this pendant perform pipe inspection, valve actuation, and hazardous material handling in zones where human access is restricted. The pendant’s sealed construction and deadman safety switch are prerequisites for safe operation in these environments, where a single uncontrolled robot motion can trigger catastrophic consequences.

In metal foundries and smelting operations, robots handle molten metal ladles, die-casting extraction, and grinding tasks in environments with extreme radiant heat, metal dust, and high-frequency vibration. The A05B-2301-C300’s thermal tolerance and vibration-resistant keypad make it the only viable operator interface in these conditions, where standard HMI equipment fails within weeks.

In power generation and utilities, robotic systems perform turbine blade inspection, transformer assembly, and cable routing in high-voltage environments where EMI levels are extreme. The pendant’s shielded cable and EMC-compliant design ensure signal integrity even in proximity to high-voltage switchgear and large rotating machinery.

In mining and mineral processing, where continuous dust, vibration, and corrosive atmospheres are the norm, the A05B-2301-C300 enables operators to program and monitor robotic drilling, ore handling, and conveyor management systems without exposing personnel to hazardous zones. Its rugged keypad and sealed enclosure maintain full functionality across extended shifts in these punishing conditions.

In water treatment and municipal infrastructure, robotic systems guided by this pendant manage chemical dosing, pipe inspection, and pump maintenance in environments with high humidity and chemical vapor exposure. The pendant’s non-condensing humidity rating and sealed connector area ensure reliable operation throughout these demanding cycles.

Across all these sectors, the ability to source a verified, in-stock A05B-2301-C300 with a documented 12-month warranty — rather than waiting weeks for OEM lead times — is a decisive factor in minimizing mean time to repair (MTTR) and protecting production continuity.

Security & Quality FAQ

Q1: What does the 12-month warranty cover?
Every FANUC A05B-2301-C300 unit shipped by TOPNLMS carries a 12-month quality warranty covering manufacturing defects, functional failures under normal operating conditions, and component-level faults identified during incoming inspection. If a unit fails within the warranty period, we provide a replacement or full refund after technical verification. Warranty claims are processed within 5 business days of unit receipt.

Q2: How is each unit tested before shipment?
All A05B-2301-C300 teach pendants undergo a multi-stage pre-shipment inspection protocol: visual inspection for physical damage, connector integrity check, LCD and keypad functional test, deadman enable switch actuation test, and communication handshake verification against a reference FANUC R-30iB controller. Units that fail any stage are quarantined and not shipped. A test report is available upon request.

Q3: Is this pendant compatible with my existing FANUC controller?
The A05B-2301-C300 is designed for FANUC C-Series robot controllers, including the R-30iA, R-30iB, and R-30iB Plus platforms. It is not directly compatible with older M-Series (R-J3iB) or newer R-30iB Mate controllers without an adapter cable. If you are unsure of your controller model, please contact our technical team at [email protected] with your controller nameplate information, and we will confirm compatibility before shipment.

Q4: Can you support long-term or repeat procurement for maintenance programs?
Yes. TOPNLMS maintains standing inventory of high-demand FANUC spare parts — including teach pendants, servo amplifier modules, CPU boards, I/O units, and safety modules — to support planned maintenance programs, spare-parts kitting, and emergency breakdown coverage. We offer priority allocation agreements for customers with recurring procurement needs. Contact us to discuss volume pricing, lead-time guarantees, and consignment stock arrangements.
