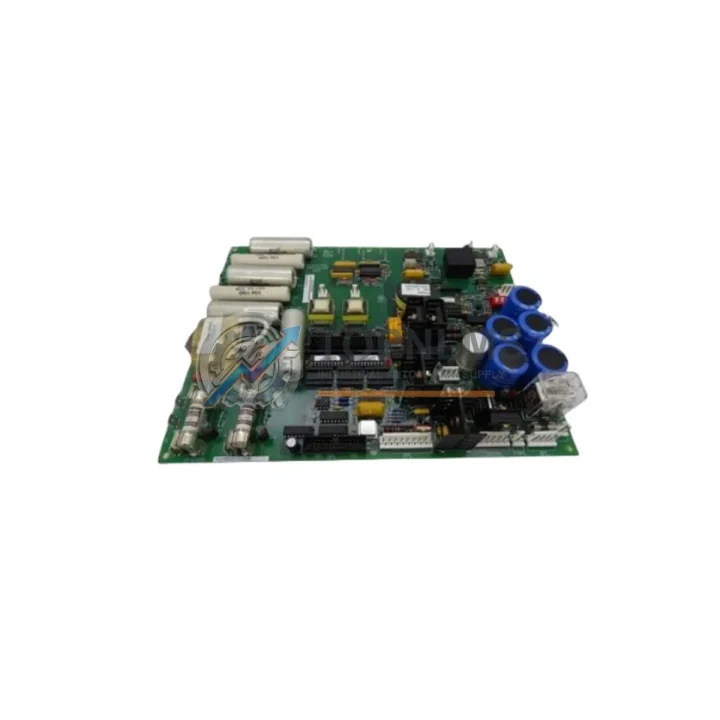

GE DS200SDCIG1AHB Ruggedized Signal Conditioning Module

Product Overview

GE DS200SDCIG1AHB Ruggedized Signal Conditioning Module: Industrial Resilience for Harsh Environments

The GE DS200SDCIG1AHB is a high-integrity Signal Conditioning & Instrumentation Board engineered for the GE Mark VI Turbine Control System. Designed to operate continuously in the most demanding industrial environments — including high-temperature turbine halls, high-humidity coastal power plants, dust-laden mining sites, and vibration-intensive heavy manufacturing floors — this module delivers the signal fidelity and noise immunity that mission-critical control architectures demand.

As a core component within the Mark VI distributed control architecture, the DS200SDCIG1AHB conditions analog and discrete field signals before they reach the main processor boards, ensuring that upstream logic — whether executed by the GE IS200TREGH1B turbine regulation board or the GE DS200TCQCG1BHF quad-core processor — receives clean, accurate data at all times. In environments where electromagnetic interference from large motors, variable frequency drives, and high-voltage switchgear is unavoidable, the board’s shielded signal paths and onboard filtering circuits maintain measurement accuracy within specification.

Rugged Specifications Table

Comprehensive Protection Solutions

The DS200SDCIG1AHB does not operate in isolation — it is one node in a tightly integrated control architecture where every board’s reliability depends on its neighbors. In a typical Mark VI turbine control cabinet, this signal conditioning board works in concert with the GE DS200TCQCG1BHF quad-core processor module, which handles real-time turbine sequencing logic, and the GE IS200TREGH1B turbine regulation board, which governs speed and load control loops. Upstream, field wiring terminates at GE DS200TBCIG1A terminal boards, which route conditioned signals directly to the DS200SDCIG1AHB for filtering and scaling.

Power integrity is equally critical. The DS200SDCIG1AHB relies on stable DC bus voltage supplied by the Mark VI power supply module — typically a GE IS200EPSMG1A or equivalent redundant power supply board — to maintain consistent analog reference levels. Any ripple or transient on the supply rail can introduce measurement offset, which is why pairing this board with a quality industrial power supply is a standard best practice in turbine control panel builds.

For communication-intensive installations, the DS200SDCIG1AHB integrates within Mark VI racks that also house GE IS200ECTBG1A Ethernet communication boards, enabling SCADA and DCS supervisory systems to poll real-time process values. In plants running redundant control architectures, a secondary GE DS200SDCIG1AHB is often installed in a hot-standby configuration alongside the primary, with automatic switchover managed by the Mark VI’s built-in TMR (Triple Modular Redundancy) logic. Safety relay modules and GE IS200SRTDH1A RTD input boards frequently share the same card cage, making the DS200SDCIG1AHB a central hub in the plant’s overall safety instrumented system (SIS) architecture.

Application in Critical Infrastructure

The DS200SDCIG1AHB has a proven track record across the world’s most demanding industrial sectors. In gas turbine power generation, it conditions exhaust gas temperature (EGT) signals from thermocouple arrays, providing the Mark VI processor with the precise thermal data needed to protect turbine blades from over-temperature excursions. In combined-cycle plants, where steam turbines and gas turbines share a common control network, the board’s noise immunity ensures that high-frequency switching transients from nearby variable frequency drives do not corrupt temperature or pressure readings.

In oil and gas upstream facilities — offshore platforms, LNG terminals, and gas compression stations — the DS200SDCIG1AHB operates in classified hazardous areas where explosive atmospheres demand zero tolerance for spurious signals or control system faults. Its robust design supports continuous operation in salt-laden marine air and wide ambient temperature swings. Petrochemical refineries rely on this board to maintain accurate flow and pressure measurements across reactor control loops, where a single erroneous reading can trigger an unplanned shutdown costing hundreds of thousands of dollars per hour.

In mining and metals processing, where heavy equipment generates intense electromagnetic interference, the DS200SDCIG1AHB’s shielded architecture keeps signal integrity intact across long cable runs from remote field instruments to the central control room. Water treatment and municipal utilities also deploy Mark VI-based control systems for pump station automation, where the board’s long service life and readily available spare parts reduce lifecycle maintenance costs.
