GE DS200RTBAG1AHC Replacement for Mark VI Turbine

Product Overview

GE DS200RTBAG1AHC Replacement for Mark VI Turbine: Smooth Transition & Legacy System Compatibility

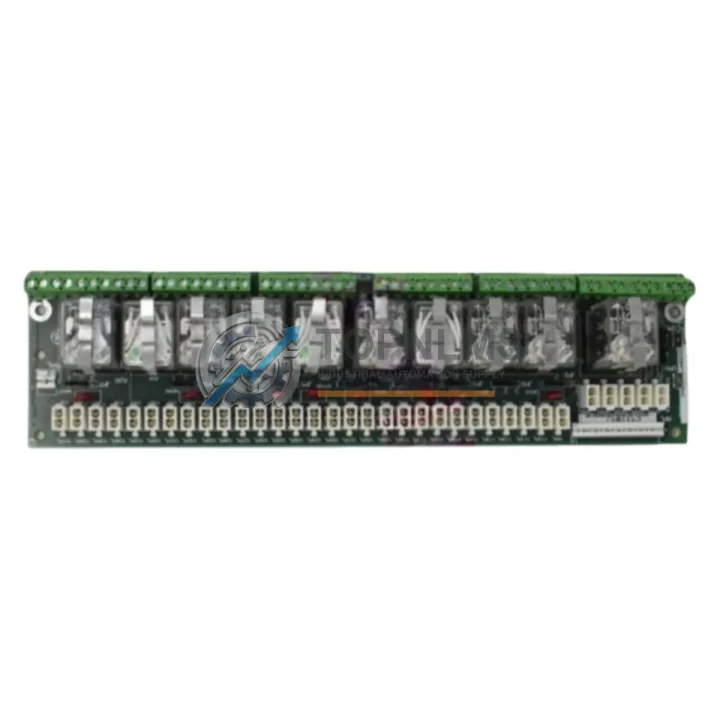

The GE DS200RTBAG1AHC is a Relay Terminal Board designed for the GE Mark VI Turbine Control System — one of the most widely deployed turbine management platforms in power generation, oil & gas, and industrial process facilities worldwide. As original Mark VI hardware reaches end-of-life or becomes increasingly difficult to source through OEM channels, plant engineers and procurement teams are actively seeking verified replacement and upgrade solutions that preserve existing wiring infrastructure, minimize reprogramming effort, and reduce unplanned downtime.

This board serves as a direct interface between the Mark VI controller and field relay circuits, handling discrete output signals that drive contactors, solenoids, and protective relay coils. When the DS200RTBAG1AHC fails or is flagged as obsolete during a scheduled outage, the replacement process must account for terminal wiring compatibility, rack slot positioning, backplane connector alignment, and I/O channel mapping within the existing Toolbox configuration. Our stock units are tested, serialized, and shipped with full traceability documentation to support your site acceptance testing (SAT) and commissioning records.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful Mark VI relay terminal board replacement rarely happens in isolation. During a planned outage or emergency swap, site teams typically address several interconnected components to ensure system integrity. When replacing the DS200RTBAG1AHC, engineers commonly evaluate the condition of adjacent I/O boards such as the DS200IIBDG1A Analog Input Board and the DS200DSPCH1A Digital Signal Processor Board, both of which share the same Mark VI rack and communicate over the same IONet I/O bus. If the relay outputs are tied to protective tripping circuits, the DS200TCQAG1BHF TMR Control Board — which manages triple-modular redundancy voting logic — should also be inspected and potentially replaced as a matched set.

On the power supply side, the DS200PCCAG1A Power Supply Board provides regulated DC voltage to the I/O rack; a degraded power supply can cause intermittent relay chatter or false trips that are often misdiagnosed as relay board failures. Replacing the DS200RTBAG1AHC without verifying power rail stability is a common field mistake that leads to repeat failures within months of commissioning.

For facilities migrating from Mark V to Mark VI architecture, the transition also involves replacing the IS200TSVOH1A Servo Terminal Board and reconfiguring the DS200TCDAG1A TMR Core Processor to recognize the new I/O map. Communication between the Mark VI controller and the plant DCS — typically a GE Historian or third-party SCADA system — is handled through the DS200SIOBH1A Serial I/O Board, which must be reconfigured to match the updated Modbus or OPC-DA tag structure after any relay board swap.

In control cabinet environments where space is constrained, the DS200EXPSG1A Expansion Power Supply may be required to support additional I/O modules added during the upgrade. Signal isolation between the relay outputs and field devices is often improved by installing DIN-rail-mounted signal isolators alongside the new terminal board, particularly in high-noise environments near variable frequency drives or large motor starters.

Retrofit Guidance FAQ

Q: Can I reuse existing field wiring when replacing the DS200RTBAG1AHC?
A: Yes, in most same-revision Mark VI installations. The terminal block layout on the DS200RTBAG1AHC is consistent across production revisions. Verify terminal numbering against your as-built drawings before re-terminating. If the original board was damaged by overcurrent, inspect field wiring insulation for heat damage before reconnecting.

Q: Do I need to modify my ToolboxST configuration after the swap?
A: For a like-for-like replacement within the same Mark VI firmware version, no configuration changes are typically required. The board is recognized by its slot address and I/O type. If the replacement unit has a different hardware revision suffix, verify compatibility with your current ToolboxST version and Mark VI firmware release notes before going live.

Q: What communication protocol does the DS200RTBAG1AHC use?
A: The board communicates over the GE Mark VI internal IONet bus — a proprietary high-speed I/O network that connects terminal boards to the main controller. It does not use Modbus, Profibus, or Ethernet directly; those protocols are handled at the controller or HMI level.

Q: How much physical space does the replacement board require?
A: The DS200RTBAG1AHC occupies a standard Mark VI I/O rack slot. No additional panel space is required for a direct replacement. If you are adding this board to an existing rack during an expansion, verify available slot count and power budget with the DS200PCCAG1A power supply datasheet.

Q: Can this board replace units from Mark V or earlier GE turbine control systems?
A: Not directly. Mark V and Mark VI use different backplane connectors, I/O bus architectures, and configuration tools. A cross-generation migration requires an engineering assessment, updated I/O mapping, and in most cases a full ToolboxST reconfiguration. Contact our technical team for migration feasibility support.

Q: What should I check during commissioning after installation?
A: Verify relay output continuity on all channels, confirm I/O board recognition in ToolboxST diagnostics, perform a functional test of each relay output against its field device, and check for any fault codes on the Mark VI HMI. Log the board serial number in your site maintenance records for warranty tracking.

Warranty Assurance

Every GE DS200RTBAG1AHC unit shipped by TOPNLMS is backed by a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Prior to shipment, each board undergoes a multi-point outgoing inspection that includes visual examination for component damage, connector integrity verification, and functional bench testing where applicable. Units are packed in anti-static shielding bags with foam cushioning to prevent transit damage.

If a unit develops a fault within the warranty period, TOPNLMS provides replacement support with priority processing. Our after-sales response target is within 24 business hours of fault notification. Warranty claims require the original order number, a description of the failure mode, and photographic documentation of the fault condition. Return shipping for confirmed warranty cases is coordinated by our logistics team.

For procurement teams managing critical spare inventories, we offer batch testing and serialized documentation packages on request. Lead times for in-stock units are typically 3–7 business days for international shipments from our Xiamen warehouse, with DHL Express, FedEx, and UPS options available. Customs documentation including commercial invoice, packing list, and HS code declaration is provided with every shipment.

TOPNLMS specializes in industrial automation components for power generation, petrochemical, and manufacturing sectors. Our catalog includes GE Mark VI, Mark V, and Mark IV turbine control components, as well as Siemens, ABB, Rockwell Automation, and Honeywell DCS spare parts. Whether you need a single emergency replacement or a long-term supply agreement for planned maintenance cycles, our team is equipped to support your procurement and engineering requirements.
