GE DS200QTBAG1ACB Ruggedized Field Termination Board

Product Overview

GE DS200QTBAG1ACB Ruggedized Field Termination Board: Industrial Resilience for Harsh Environments

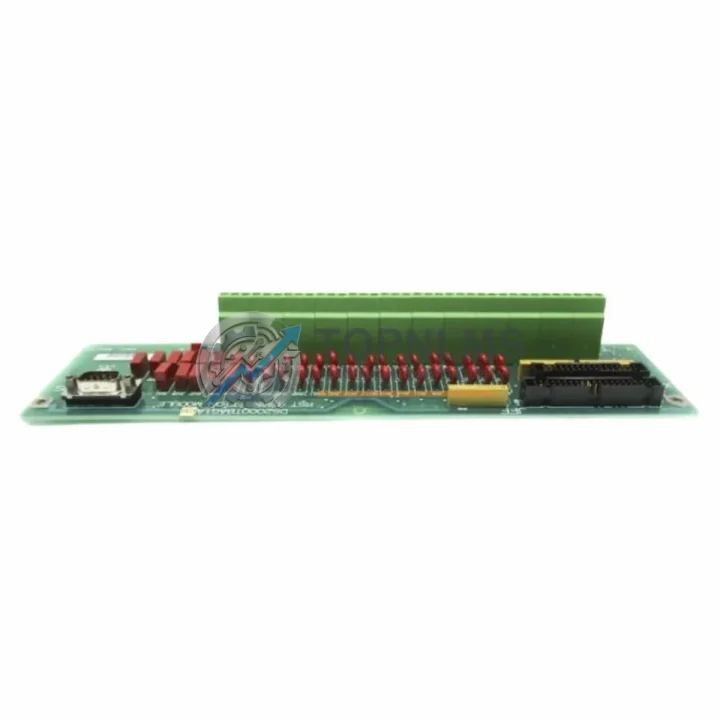

The GE DS200QTBAG1ACB is a high-integrity field termination board engineered for the GE Mark V Turbine Control System — one of the most widely deployed turbine management platforms in power generation, oil & gas, and heavy industrial facilities worldwide. Designed to operate continuously in environments characterized by extreme temperature swings, high humidity, airborne particulates, mechanical vibration, and intense electromagnetic interference, this board delivers the signal integrity and connection reliability that mission-critical turbine control demands.

In gas turbine power plants, combined-cycle facilities, and industrial co-generation sites, the field termination board serves as the critical interface between field instrumentation — thermocouples, RTDs, pressure transmitters, proximity probes, and flame detectors — and the Mark V controller core. The DS200QTBAG1ACB provides organized, secure terminal connections that maintain signal fidelity even under the thermal cycling and vibration loads inherent to turbine enclosures. Its ruggedized PCB construction, conformal coating, and robust terminal block design ensure that wiring integrity is preserved across years of continuous operation without scheduled maintenance intervention.

Within the Mark V architecture, the DS200QTBAG1ACB works in close coordination with processor boards such as the DS200TCQAG1BHF I/O controller and the DS200SDCCG1AFB speed and dynamics controller, as well as power supply modules including the DS200PCCAG1ABB. The termination board channels analog and digital field signals into the Mark V’s triple-redundant TMR (Triple Modular Redundancy) voting logic, supporting the system’s ability to detect and isolate faults without interrupting turbine operation. This makes the DS200QTBAG1ACB an indispensable component in any Mark V panel that must meet continuous availability requirements.

For facilities operating in dusty environments — such as cement plants, mining operations, or open-cycle gas turbine installations — the board’s sealed terminal design and conformal-coated traces resist contamination that would otherwise cause insulation breakdown or signal drift. In coastal or offshore installations where salt-laden air accelerates corrosion, the board’s protective finish provides a meaningful service life advantage over uncoated alternatives. Facilities in tropical climates benefit similarly, as the board maintains stable operation across the full humidity range encountered in such environments.

Electromagnetic compatibility is a persistent challenge in turbine control rooms, where high-power drives, variable frequency drives (VFDs), large motor starters, and high-current bus bars generate significant conducted and radiated interference. The DS200QTBAG1ACB’s layout and grounding architecture are optimized to reject common-mode noise on thermocouple and RTD inputs, preserving the accuracy of temperature measurements that directly influence turbine protection logic. This EMI resilience is equally important when the Mark V panel is co-located with GE EX2100 or EX2100e excitation control systems, which share the same control room environment and can introduce additional electrical noise.

Replacement and spare parts management is a strategic priority for any facility running aging Mark V systems. As OEM production of legacy Mark V components has wound down, maintaining a qualified spare parts inventory has become essential to avoiding extended unplanned outages. The DS200QTBAG1ACB is a high-demand spare because field termination boards are subject to mechanical stress from repeated wiring operations during maintenance cycles, and terminal blocks can degrade over time. Stocking a tested, verified replacement board eliminates the risk of a single-component failure cascading into a multi-day turbine outage.

TOPNLMS maintains verified inventory of the DS200QTBAG1ACB and subjects each unit to functional inspection and continuity testing prior to shipment. Every board is shipped with anti-static protective packaging appropriate for sensitive industrial electronics, and is accompanied by documentation supporting traceability requirements. Our technical team can assist with cross-referencing compatible Mark V board revisions and advising on installation best practices for your specific panel configuration.

Rugged Specifications Table

Comprehensive Protection Solutions

The DS200QTBAG1ACB does not operate in isolation — it is one node in a tightly integrated Mark V control architecture. Reliable turbine protection depends on the coordinated performance of every board in the panel. The DS200TCQAG1BHF I/O terminal board and DS200SDCCG1AFB speed and dynamics controller work upstream of the field termination board to process and vote on the signals it delivers. Power integrity for the entire panel is maintained by the DS200PCCAG1ABB power supply board, which must deliver clean, regulated DC rails even during grid disturbances or generator load swings.

For facilities managing turbine protection logic, the DS200TCEAG1BHF provides additional I/O expansion capability, while the DS200DSPCH1ADA digital signal processor board handles high-speed protection calculations. Communication between the Mark V panel and plant-level SCADA or DCS systems — such as a GE Historian server or a third-party DCS via Modbus or PROFIBUS — relies on communication interface boards that must receive clean, accurate field data from the termination layer. Any degradation at the DS200QTBAG1ACB level propagates upward through the entire signal chain, underscoring the importance of maintaining this board in optimal condition.

In panels where the Mark V is integrated with GE EX2100 excitation control or GE Speedtronic auxiliary systems, the field termination board’s signal quality directly influences excitation response and load control accuracy. Facilities that have upgraded to GE Mark VIe controllers while retaining legacy Mark V field wiring may also use the DS200QTBAG1ACB as part of a migration interface strategy, preserving existing field instrumentation investments while modernizing the control core.

Application in Critical Infrastructure

The GE DS200QTBAG1ACB is deployed across the full spectrum of critical infrastructure sectors that rely on gas and steam turbine prime movers. In natural gas power generation facilities, the board supports continuous turbine operation at baseload and peaking duty cycles, where unplanned outages carry significant financial and grid-stability consequences. Combined-cycle plants operating in merchant power markets depend on Mark V reliability to maximize capacity factor and minimize forced outage rates.

In the oil and gas industry, the DS200QTBAG1ACB is found in gas compression stations, LNG liquefaction trains, and offshore platform power generation systems. These environments impose the most demanding combination of vibration, temperature extremes, salt atmosphere, and hazardous area classification requirements. The board’s robust construction supports operation in control panels installed in Class I Division 2 or Zone 2 classified areas when properly housed in purged and pressurized enclosures per applicable standards.

In petrochemical and refinery applications, the Mark V system controls process gas compressors and steam turbine drives for critical rotating equipment. The DS200QTBAG1ACB’s reliable field signal termination is essential to maintaining the protection logic that prevents catastrophic overspeed or surge events. Similarly, in steel and metals processing facilities, turbine-driven blowers and compressors supporting blast furnace operations depend on Mark V integrity for continuous production.

Water and wastewater treatment facilities operating large centrifugal pumps driven by steam turbines, and district energy systems using gas turbine cogeneration, represent additional deployment environments where the DS200QTBAG1ACB provides long-term value as a stocked spare component supporting aging but operationally sound Mark V installations.

Security & Quality FAQ

Q: What does the 12-month warranty cover?
A: The warranty covers all manufacturing defects and functional failures under normal operating conditions for 12 months from the date of shipment. If the board fails to perform its specified functions within this period, TOPNLMS will provide a replacement or full refund. The warranty applies to the board as supplied and does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling after delivery.

Q: How is each DS200QTBAG1ACB tested before shipment?
A: Every unit undergoes visual inspection for physical damage, component integrity checks, and continuity testing of all terminal connections and signal paths prior to packaging. Boards that do not pass inspection are quarantined and not offered for sale. Units are shipped in anti-static bags with foam cushioning to prevent transit damage, and packaging is labeled with the part number and inspection status.

Q: Is this board compatible with all Mark V panel configurations?
A: The DS200QTBAG1ACB is designed for GE Mark V turbine control systems in both TMR (Triple Modular Redundancy) and Simplex configurations. Compatibility with a specific panel depends on the panel’s wiring harness and slot assignment. TOPNLMS technical support can assist with confirming compatibility based on your panel’s bill of materials or existing board revision. We recommend verifying the revision suffix (G1ACB) matches your panel’s requirements before installation.

Q: Can TOPNLMS support long-term supply of DS200QTBAG1ACB for multi-year maintenance contracts?
A: Yes. TOPNLMS maintains ongoing sourcing relationships for GE Mark V legacy components and can support blanket purchase orders and long-term supply agreements for facilities with multi-unit fleets or extended maintenance planning horizons. Contact our team to discuss volume pricing, reserved inventory arrangements, and lead time commitments tailored to your maintenance schedule.
