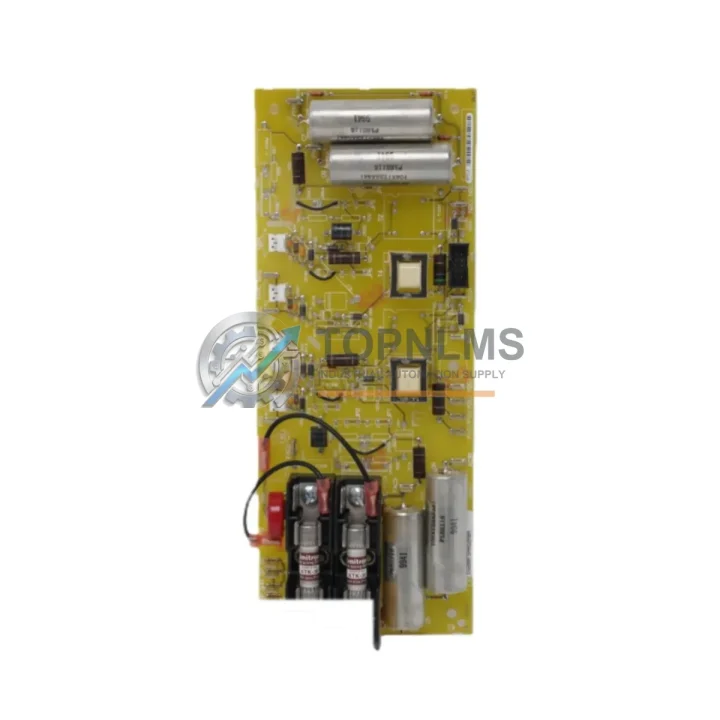

GE DS200FSAAG2A Ruggedized Gate Amplifier Module

Product Overview

GE DS200FSAAG2A Ruggedized Gate Amplifier Module: Industrial Resilience for Harsh Environments

The GE DS200FSAAG2A Field Supply Gate Amplifier Board is a mission-critical control component engineered for the GE Mark V DC Drive platform — one of the most widely deployed drive control architectures in heavy industry. Designed to operate reliably under extreme thermal stress, high-humidity conditions, persistent vibration, and intense electromagnetic interference, this board delivers the gate firing precision and field supply regulation that industrial DC drive systems demand without compromise.

In continuous production environments — from steel rolling mills and mining hoists to paper machine drives and large pump stations — the DS200FSAAG2A serves as the nerve center of the drive’s power conversion stage. It interfaces directly with the thyristor bridge, generating precisely timed gate pulses that regulate armature current and field excitation. Any degradation in gate timing accuracy translates immediately into torque ripple, speed instability, or drive trip events. The DS200FSAAG2A’s robust analog and digital signal conditioning circuitry maintains pulse integrity even when the control cabinet is subjected to conducted EMI from adjacent variable frequency drives, high-current bus bars, or switching power supplies.

Thermal management is built into the board’s design philosophy. Operating across a wide ambient temperature range, the DS200FSAAG2A maintains stable gate drive output even in poorly ventilated enclosures or outdoor substations where summer temperatures routinely exceed 45 °C. Conformal coating on the PCB provides additional protection against condensation, corrosive airborne particulates from cement or chemical processing plants, and the fine conductive dust common in coal handling and mineral processing facilities.

Rugged Specifications Table

Comprehensive Protection Solutions

The DS200FSAAG2A does not operate in isolation — it is one node in a tightly integrated drive control architecture. In a fully configured GE Mark V DC drive cabinet, it works in concert with the DS200SDCCG1A Speed and Current Regulator Board, which closes the speed and current control loops, and the DS200PCCAG1A Power Connect Board, which manages the AC power interface and protection relay logic. The DS200TCQAG1A Analog I/O Board handles process feedback signals — speed references, current feedback, and analog setpoints — feeding the regulator boards with the real-time data they need to maintain stable drive performance.

On the power side, the DS200DCFBG1A DC Feedback Board monitors armature voltage and current, providing the closed-loop feedback that the DS200FSAAG2A uses to trim gate pulse timing. Upstream, the DS200EXPSG1ADA Exciter Power Supply Board delivers regulated DC to the field winding, working in parallel with the gate amplifier to maintain field flux at the setpoint. For communication and supervisory control, the DS200SLCCG3A Serial Link Control Board bridges the Mark V drive to plant-level DCS or SCADA systems via RS-485 or proprietary GE serial protocols, enabling remote monitoring of drive health, fault codes, and process variables.

Protection-class components such as the DS200GDDAG1A Gate Driver Board and associated thyristor snubber networks ensure that transient overvoltages from motor switching or grid disturbances are clamped before they can damage the gate amplifier circuitry. In installations where the Mark V drive shares a control cabinet with GE Multilin protection relays or third-party safety PLCs, proper grounding of the DS200FSAAG2A’s signal commons is essential to prevent ground loop interference from corrupting gate timing signals. Terminal blocks, shielded signal cables, and properly rated control-circuit fuses complete the protection layer around this board.

Application in Critical Infrastructure

The GE DS200FSAAG2A has accumulated decades of field service across the most demanding sectors of global heavy industry. In oil and gas facilities, it controls the DC drives powering pipeline compressor stations and offshore platform drilling drawworks, where unplanned downtime carries both safety and financial consequences measured in tens of thousands of dollars per hour. In mining operations, it drives hoist motors and conveyor systems that must maintain precise speed control under variable load — a task that demands the gate amplifier’s consistent pulse accuracy across the full torque range.

In metallurgical plants — hot strip mills, cold rolling lines, and wire rod mills — the DS200FSAAG2A governs the main drive motors that pull steel through the rolling stands. Speed synchronization between tandem stands is critical; even minor gate timing drift can cause strip breaks or gauge deviations. The board’s thermal stability and EMI immunity make it the preferred choice for these high-stakes applications. Similarly, in power generation facilities, it controls exciter drives and auxiliary motor systems where reliability is non-negotiable.

Water treatment and municipal infrastructure operators rely on Mark V DC drives — and by extension the DS200FSAAG2A — to run large centrifugal pumps and blower motors continuously, often in humid, chemically aggressive environments where the board’s conformal coating provides essential protection. In pulp and paper mills, the board manages the DC drives on paper machine sections, where web breaks caused by speed instability translate directly into lost production and costly cleanup operations.

Security & Quality FAQ

Q1: What does the 12-month warranty cover?
The 12-month warranty covers all functional failures attributable to component defects or workmanship under normal operating conditions consistent with GE Mark V drive specifications. If the DS200FSAAG2A fails to perform its gate amplification and field supply regulation functions within the warranty period, TOPNLMS will provide a replacement unit or full refund. The warranty period begins from the date of shipment confirmation.

Q2: How is each unit tested before shipment?
Every DS200FSAAG2A unit undergoes bench-level functional verification prior to dispatch. Testing includes power-on continuity checks, gate pulse output verification, and visual inspection for PCB damage, corroded contacts, or failed components. Units sourced as refurbished are additionally cleaned, re-soldered at critical joints, and re-tested under simulated load conditions. A test report is available upon request for quality-critical procurement processes.

Q3: Is this board compatible with all Mark V DC drive variants?
The DS200FSAAG2A is designed for the GE Mark V DC Drive platform. Compatibility with specific drive frame sizes and firmware revisions should be confirmed against the drive’s bill of materials or the GE Mark V hardware manual (GEH-6005). TOPNLMS technical staff can assist with cross-referencing your drive’s existing board revision to confirm a direct fit before purchase.

Q4: Can you support long-term or repeat procurement for maintenance programs?
Yes. TOPNLMS maintains standing inventory of DS200FSAAG2A and related Mark V drive boards to support planned maintenance, emergency breakdown replacement, and multi-site spare parts programs. Volume pricing, reserved stock agreements, and consolidated shipment scheduling are available for industrial customers with ongoing procurement needs. Contact our team to discuss a supply arrangement tailored to your maintenance cycle.
