GE 8002-CC-85 Original Industrial Spare Drive Series Compatible

Product Overview

GE 8002-CC-85 Original Industrial Spare Drive Series Compatible: Ensuring System Stability in Critical VFD Applications

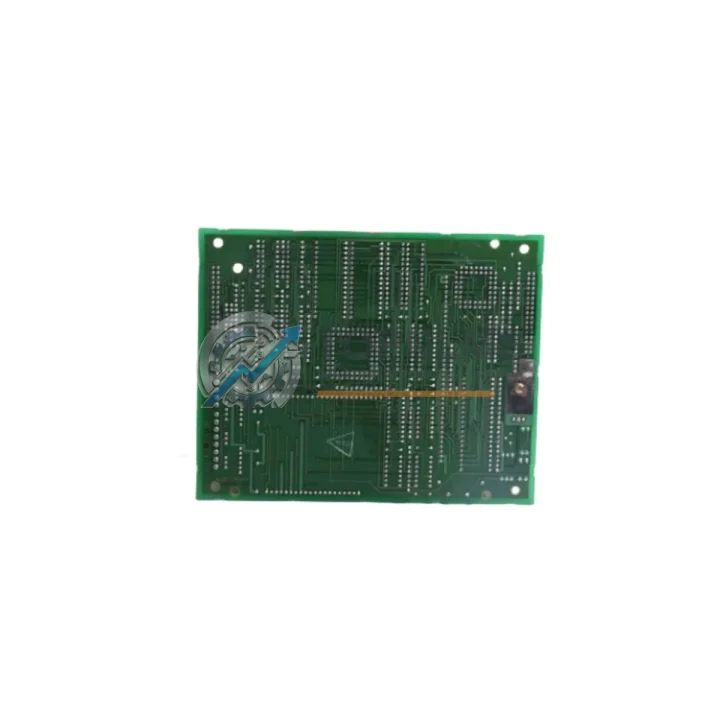

The GE 8002-CC-85 is an original snubber board designed for General Electric’s Drive Series variable frequency drives (VFDs). As a power stage protection component, it suppresses voltage transients and damps oscillations within the DC bus and IGBT switching circuits, directly safeguarding the inverter bridge against destructive overvoltage events. In industrial environments where unplanned downtime translates to significant production losses, maintaining a verified original spare of the 8002-CC-85 is a foundational element of any responsible maintenance strategy.

This board is engineered to operate within the demanding thermal and electrical conditions of industrial VFD cabinets — from continuous-duty conveyor systems and pump stations to precision servo-driven machine tools. Its role in the power stage makes it one of the highest-priority components to inspect during scheduled preventive maintenance intervals and one of the first to evaluate during fault diagnosis following DC bus overvoltage trips or IGBT module failures.

Critical Technical Specs

Preventive Maintenance Strategy

A snubber board failure rarely occurs in isolation. In most field cases, the root cause involves a broader degradation event within the drive’s power stage — elevated DC bus ripple, aging electrolytic capacitors, or a weakened IGBT module that begins generating excessive switching transients before it fails outright. For this reason, when replacing the 8002-CC-85, experienced maintenance engineers treat the intervention as an opportunity to audit the entire drive assembly.

During the same maintenance window, it is advisable to inspect and, where service hours warrant, proactively replace the DC bus capacitor bank within the drive — capacitor degradation is the most common precursor to snubber board stress. The IGBT power module (the switching device the snubber board protects) should be tested for leakage current and gate threshold voltage; a marginal IGBT will destroy a new snubber board within weeks if left in service. Simultaneously, verify the condition of the gate driver board, which interfaces directly with the IGBT and whose output signal integrity directly affects switching transient amplitude.

At the cabinet level, inspect the 24VDC control power supply module that feeds the drive’s logic and I/O circuits — an unstable control supply can cause spurious fault trips that mask underlying power stage issues. Check the main contactor and pre-charge resistor assembly for contact wear and resistance drift; a degraded pre-charge circuit subjects the DC bus capacitors and snubber components to repeated inrush stress. The cooling fan module for the drive heatsink should be tested for airflow and bearing noise, as thermal stress is a primary accelerant of power semiconductor and passive component aging.

For drives integrated into larger PLC or DCS control architectures, this maintenance event is also the right time to verify the communication interface module (whether PROFIBUS, DeviceNet, Modbus, or Ethernet/IP) for firmware version alignment and connector integrity. Inspect the I/O terminal block assembly and associated signal isolation modules for loose terminations and insulation degradation — intermittent signal faults at the I/O layer are frequently misdiagnosed as drive faults. Finally, review the condition of the motor output filter or dV/dt filter installed between the drive and motor; a degraded output filter increases reflected wave stress on both the motor windings and the drive’s output stage, compounding snubber board loading.

Maintaining a consolidated spare kit — including the 8002-CC-85 snubber board alongside the above components — reduces mean time to repair (MTTR) from days to hours and eliminates the risk of extended production halts caused by single-component lead times.

Strategic Replacement Solutions

The GE 8002-CC-85 addresses one of the most common challenges in legacy VFD fleet management: sourcing original power stage components for drives that are no longer in active production but remain embedded in operational production lines. Replacing the snubber board with a verified original part — rather than an unqualified substitute — preserves the drive’s original protection coordination, maintains UL/CE compliance of the existing installation, and avoids the re-commissioning overhead associated with drive-level substitution.

For facilities managing a mixed fleet of GE Drive Series units across multiple production cells, standardizing on original spare boards such as the 8002-CC-85 enables a consistent repair-versus-replace decision framework. When the snubber board is the failed component, board-level repair is almost always faster and more cost-effective than full drive replacement — particularly where the drive is mechanically integrated into a custom control cabinet or where re-parameterization of a replacement drive would require significant engineering time.

Stocking the 8002-CC-85 as a managed spare also supports a predictive maintenance transition: by tracking snubber board replacement frequency across the fleet, maintenance teams can identify drives with elevated transient stress — a leading indicator of impending IGBT or capacitor failure — and schedule proactive interventions before an unplanned outage occurs.

All units are dispatched following functional inspection and electrical verification. Packaging is designed for safe transit of sensitive PCB assemblies. Standard lead time is short, with expedited shipping available for urgent breakdown situations.

Support FAQ

Q1: How do I confirm the 8002-CC-85 is compatible with my specific GE drive model?
Locate the drive’s nameplate (typically on the inside of the cabinet door or on the drive chassis) and note the full model number and power rating. Cross-reference with the GE Drive Series 8002 platform documentation. If you require compatibility confirmation before ordering, contact us with your drive’s full model number and we will verify fitment prior to shipment.

Q2: What is the recommended inventory strategy for this component?
For facilities operating three or more GE Drive Series 8002 units, maintaining a minimum of one 8002-CC-85 snubber board as a managed on-site spare is recommended. For critical process lines where drive downtime directly impacts production output, a two-unit buffer stock is advisable. The component’s shelf life under proper storage conditions (dry, temperature-controlled environment, anti-static packaging) exceeds five years.

Q3: What pre-shipment testing is performed on the 8002-CC-85?
Each unit undergoes functional inspection and electrical verification prior to dispatch, including visual inspection for PCB damage, component integrity checks, and where applicable, in-circuit testing of snubber network resistance and capacitance values. Units that do not meet specification are not dispatched.

Q4: What does the 12-month warranty cover, and what is the claims process?
The 12-month warranty covers defects in materials and workmanship under normal operating conditions. It does not cover damage resulting from incorrect installation, operation outside specified parameters, or secondary damage caused by other failed components. To initiate a warranty claim, contact us at [email protected] with your order reference, a description of the fault, and any available fault log data from the drive. We will advise on return authorization and replacement dispatch.
