GE 531X300CCHAFM5 Original Industrial Spare Mark V Compatible

Product Overview

GE 531X300CCHAFM5 Original Industrial Spare Mark V Compatible: System Stability & Industrial Maintenance Value

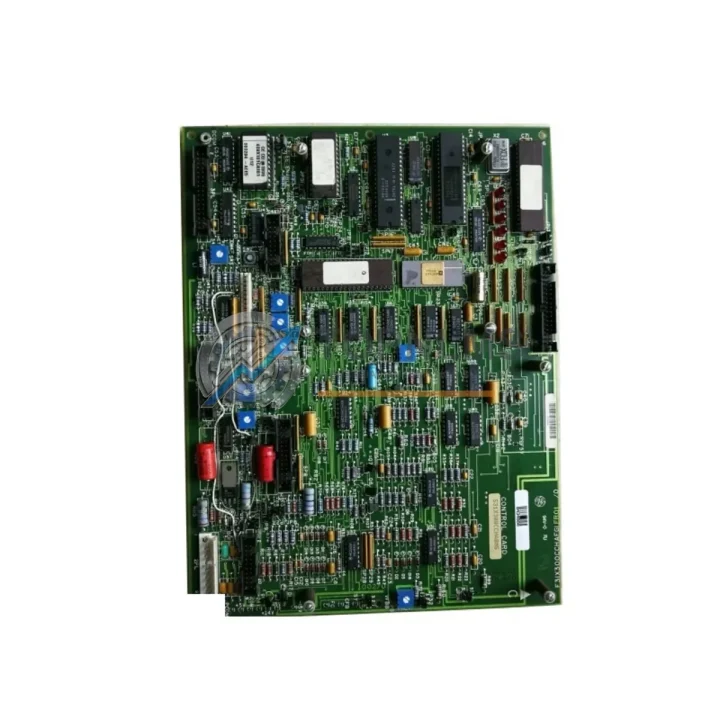

The GE 531X300CCHAFM5 is an original spindle drive control board engineered for the General Electric Mark V turbine control system — one of the most widely deployed gas turbine control platforms in power generation, petrochemical, and heavy industrial facilities worldwide. As aging Mark V installations continue to operate well beyond their original design life, sourcing verified original spare parts like the 531X300CCHAFM5 has become a critical element of any plant’s long-term asset management and unplanned downtime prevention strategy.

Whether you are managing a scheduled outage, responding to an emergency shutdown, or building a strategic spare parts inventory for a Mark V-equipped turbine train, the 531X300CCHAFM5 spindle drive control board delivers the electrical compatibility, signal integrity, and firmware alignment required to restore full system operation without costly re-engineering or system migration.

Critical Technical Specs

Preventive Maintenance Strategy

When a 531X300CCHAFM5 spindle drive control board is flagged for replacement — whether through a diagnostic alarm, a scheduled inspection cycle, or a post-trip investigation — experienced maintenance engineers know that the board itself is rarely the only component that warrants attention. The Mark V control system is a tightly integrated architecture, and a fault in the spindle drive circuit often reflects stress across adjacent modules and power distribution paths.

During the same maintenance window, it is standard practice to inspect the Mark V power supply module (typically a 531X307LTBAGM1 or equivalent) that feeds the spindle drive card rack. A degraded power supply delivering marginal voltage can accelerate board-level failures and cause intermittent faults that are difficult to reproduce on the bench. Similarly, the Mark V I/O terminal board connected to the spindle drive circuit — often a DS200TCQBG1A or similar TCQB card — should be checked for loose terminal connections, corrosion on screw terminals, and any signs of thermal stress on the PCB.

The Mark V communication gateway module (such as the IS200ESELH1A Ethernet adapter or the IS200DSPXH1A digital signal processor board) should also be verified for firmware version alignment, particularly if the replacement 531X300CCHAFM5 board carries a different hardware revision. Mismatched revisions between the spindle drive board and the communication layer can produce subtle handshake errors that only manifest under load.

Maintenance teams should also take the opportunity to inspect the Mark V relay output module (such as the DS200RTBAG1A relay terminal board) that handles trip and permissive signals from the spindle drive circuit. Relay contacts in these modules accumulate wear over years of operation, and a relay that fails to open cleanly during a trip event can mask the root cause of a spindle fault. Alongside this, the Mark V analog input module — responsible for speed feedback and vibration signal conditioning — should be calibrated and its input impedance verified to ensure the replacement spindle drive board receives clean, in-range signals from field sensors.

For facilities operating Mark V systems in high-vibration environments such as compressor trains or steam turbine auxiliaries, it is advisable to simultaneously inspect the Mark V backplane connector assembly and card guide rails for mechanical wear. A loose card seating caused by worn guides can introduce intermittent contact resistance that mimics board failure. Finally, the Mark V HMI workstation interface card and associated serial communication cables between the operator panel and the control core should be tested for signal integrity — degraded communication links between the HMI and the Mark V core can cause operator displays to misreport spindle drive status, leading to unnecessary board replacements.

Stocking a 531X300CCHAFM5 alongside these complementary Mark V components — power supply modules, I/O terminal boards, relay output modules, analog input cards, and communication adapters — transforms a reactive spare parts approach into a structured, system-level maintenance posture that measurably reduces mean time to repair (MTTR) and protects turbine availability.

Strategic Replacement Solutions

The GE Mark V SPEEDTRONIC™ platform was introduced in the 1980s and remains in active service at hundreds of power plants and industrial facilities globally. GE’s transition to the Mark VI and Mark VIe control systems has effectively ended new production of Mark V-specific boards, making the secondary market for verified original components like the 531X300CCHAFM5 the primary supply channel for operators committed to maintaining their existing installations.

Replacing a failed or degraded 531X300CCHAFM5 with a verified original board — rather than pursuing a full Mark V-to-Mark VI migration — offers a compelling economic and operational case. A direct board swap preserves the existing control logic, I/O wiring, HMI configuration, and operator training investment. It eliminates the engineering, commissioning, and validation costs associated with a control system upgrade, which can run into six figures for a single turbine unit. For facilities with multiple Mark V-equipped turbines, maintaining a strategic inventory of critical boards like the 531X300CCHAFM5 provides a hedge against supply chain disruption and allows maintenance teams to execute replacements within a single shift rather than waiting weeks for sourcing and delivery.

Each 531X300CCHAFM5 supplied by TOPNLMS is sourced from verified industrial channels, inspected for physical condition, and bench-tested for functional performance before shipment. Units are shipped with protective anti-static packaging and include a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions. Expedited shipping options are available for emergency maintenance situations.

Support FAQ

Q1: Is the 531X300CCHAFM5 a direct drop-in replacement for my existing Mark V spindle drive board?
In the majority of Mark V installations, yes. The 531X300CCHAFM5 is designed for direct card-slot replacement within the Mark V control rack. However, hardware revision compatibility should be verified against your existing system’s revision level before installation. Our technical team can assist with revision matching if you provide your panel serial number or existing board revision marking.

Q2: What testing is performed before shipment, and what does the 12-month warranty cover?
Every 531X300CCHAFM5 unit undergoes bench-level functional testing to verify power rail integrity, signal bus communication, and output drive capability prior to shipment. The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling.

Q3: How should I manage spare parts inventory for a Mark V system that is no longer in production?
For legacy systems like the Mark V, a tiered spare parts strategy is recommended: maintain at least one on-hand spare for high-criticality boards like the 531X300CCHAFM5 spindle drive card, and establish a replenishment trigger to reorder within 30 days of consuming a spare. Given the declining availability of original Mark V components on the secondary market, early procurement and strategic stocking significantly reduce the risk of extended downtime due to sourcing delays.

Q4: Can you verify compatibility with my specific Mark V panel configuration before I order?
Yes. Please contact our technical team at [email protected] with your panel model, existing board part number, and hardware revision. We will confirm compatibility and advise on any revision-specific considerations before you place your order.
