GE 531X175SSBAYM2 Original Industrial Spare DC300 Compatible

Product Overview

GE 531X175SSBAYM2 Original Industrial Spare DC300 Compatible: System Stability & Industrial Spare Value

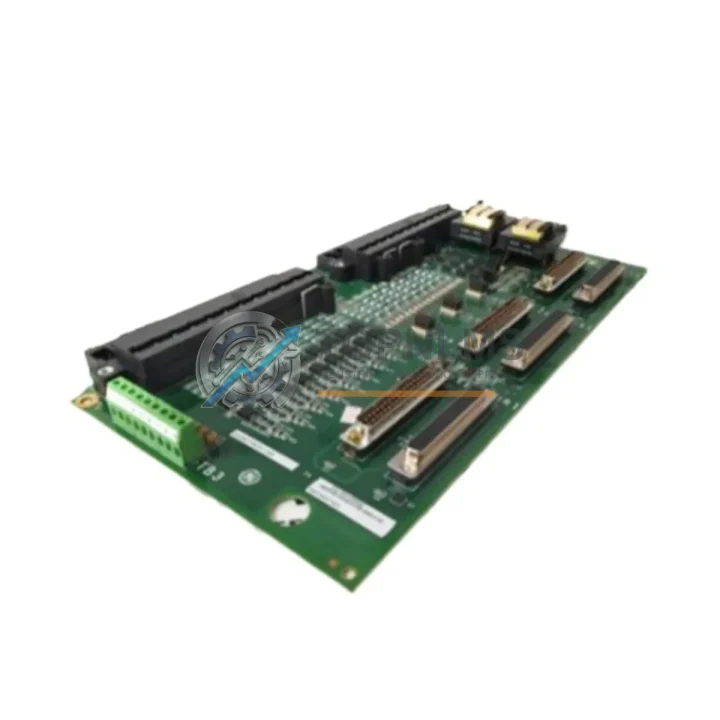

The GE 531X175SSBAYM2 is a genuine OEM interface board engineered for the GE DC300 Series DC drive control system, one of the most widely deployed DC motor drive platforms in heavy industrial environments worldwide. Found in steel mills, paper mills, mining operations, cement plants, and large-scale motor drive applications, the DC300 drive cabinet relies on this board to manage signal interfacing between the drive controller and the power conversion stage — ensuring accurate speed regulation, torque control, and system feedback integrity at all times.

As industrial facilities continue to operate legacy DC300 systems well beyond their original design life, the availability of verified original spare parts like the 531X175SSBAYM2 becomes a strategic asset rather than a routine procurement item. When this interface board fails, the entire drive axis goes offline. The difference between a two-hour recovery and a multi-day production halt is determined entirely by whether a tested, original spare is already on the shelf. Maintaining at least one verified unit of the 531X175SSBAYM2 in your site inventory is a foundational element of any responsible preventive maintenance strategy for DC300-based drive systems.

Critical Technical Specs Table

Preventive Maintenance Strategy

A robust preventive maintenance program for GE DC300 drive systems extends well beyond replacing a single board. When scheduling a planned outage to inspect or replace the 531X175SSBAYM2, experienced maintenance engineers routinely audit the entire drive cabinet for wear, thermal stress, and signal degradation across all interconnected components — because a board-level failure rarely occurs in isolation.

Begin with the power supply stage. The GE 531X301PCCAPG1 power supply board provides regulated DC voltage rails to the interface and control boards. Inspect it for capacitor bulge, output voltage drift, and thermal discoloration. A degraded power supply is one of the most common root causes of interface board failures — replacing the 531X175SSBAYM2 without verifying power supply integrity risks repeat failures within months of the repair.

Next, evaluate the signal conditioning chain. The GE 531X111PSHARG1 signal conditioning module handles analog tachometer and encoder feedback signals that feed directly into the 531X175SSBAYM2 input stage. If the interface board failed due to signal overvoltage or noise ingress, the 531X111PSHARG1 should be tested and replaced within the same maintenance window. Simultaneously, verify the GE DS200SDCCG1A drive control card — the primary controller in many DC300 cabinet configurations — for firmware integrity and communication health before returning the system to service.

Terminal integrity is frequently overlooked during board-level maintenance. Loose or corroded connections on the GE 531X158APCAJG1 analog I/O terminal board can introduce noise into the feedback loop, causing the interface board to generate false fault trips. Re-torquing all terminal connections and inspecting wiring harness insulation during a planned 531X175SSBAYM2 replacement is standard practice in high-availability facilities. For plants running multiple DC300 drive axes, coordinating spare parts procurement to include GE 531X307LTBAJG2 logic terminal boards and GE 531X121PCHARG1 chopper interface boards reduces per-event logistics costs and ensures your team can complete a full cabinet overhaul in a single scheduled window.

Communication integrity between the DC300 drive and the plant DCS or SCADA system should also be validated during the same maintenance event. If your facility uses a GE 531X132PRGAAM1 communication interface module for Modbus or proprietary GE protocol connectivity, verify its configuration and cable integrity before closing the cabinet. For plants with adjacent Mark IV or Mark V turbine control panels, the GE DS3800HPIB1F1F process interface board may share the same maintenance cycle — coordinating these inspections reduces total planned downtime across the facility.

Finally, review your HMI and operator station health. Operator panels connected to the DC300 system via serial or fieldbus links should be checked for communication timeouts and display anomalies that may indicate upstream drive faults. Addressing HMI configuration and cable integrity during the same outage window prevents post-maintenance communication issues from being misdiagnosed as residual drive faults.

Strategic Replacement Solutions

The GE 531X175SSBAYM2 is a direct OEM replacement for the same part number across all DC300 drive cabinet variants. No firmware re-flashing or parameter reconfiguration is required when replacing a like-for-like board — the replacement board slots into the existing card guide, reconnects to the existing wiring harness, and the drive is ready for commissioning after a standard power-on self-test sequence. This plug-and-play replacement characteristic significantly reduces mean time to repair (MTTR) and minimizes the skill level required for field replacement.

For facilities that have experienced repeated failures of the 531X175SSBAYM2 due to environmental factors — excessive vibration, ambient temperature excursions, or airborne contamination — TOPNLMS recommends sourcing a minimum of two verified spares to maintain a hot-standby inventory posture. This is particularly critical for single-axis drives where no redundant drive path exists and any unplanned downtime directly impacts production throughput and delivery commitments.

Plants transitioning from legacy DC300 systems to modern AC drive platforms can use the 531X175SSBAYM2 as a bridge component during phased migration. Keeping the existing DC300 system fully operational while new drive infrastructure is commissioned in parallel eliminates the risk of a hard cutover failure. TOPNLMS supplies original GE DC300 spare parts specifically to support this migration strategy, ensuring your legacy system remains reliable and production-capable throughout the entire transition period.

All units supplied by TOPNLMS are sourced from verified industrial channels, individually tested for electrical continuity and full functional performance, and shipped with complete documentation. Lead time for the 531X175SSBAYM2 is typically 3–7 business days for standard orders, with expedited same-day dispatch available for urgent breakdown situations. Contact our technical team with your cabinet nameplate data and drive model number for compatibility confirmation prior to ordering.

Support FAQ

Q1: What is the expected service life of the GE 531X175SSBAYM2, and when should I plan a proactive replacement?
Under normal industrial operating conditions, GE DC300 interface boards typically deliver 8–15 years of service life. Boards operating in high-vibration, high-temperature, or contaminated environments may degrade faster. We recommend proactive replacement at the first sign of intermittent faults, unexplained drive trips, or analog signal drift — rather than waiting for a hard failure that causes unplanned downtime and extended production loss.

Q2: How do I verify compatibility before ordering?
The 531X175SSBAYM2 part number is stamped on the board’s component-side label. Cross-reference this number with your DC300 drive cabinet’s bill of materials or the GE drive manual for your specific cabinet variant. If you are unsure, send TOPNLMS your cabinet nameplate data and drive model number — our technical team will confirm compatibility before shipment at no charge.

Q3: What pre-shipment testing is performed on each unit?
Every 531X175SSBAYM2 unit undergoes full electrical continuity verification, component-level visual inspection, and functional performance testing on a DC300-compatible test bench before dispatch. Units that do not pass all test criteria are quarantined and not shipped. A test report is available upon request for quality-critical or regulated procurement processes.

Q4: What does the 12-month warranty cover, and how is a warranty claim processed?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions from the date of shipment. If a unit fails within the warranty period, TOPNLMS will provide a replacement unit or full refund after fault verification. Warranty claims are processed within 5 business days of receiving the returned unit. Contact [email protected] with your order number and fault description to initiate a claim.
