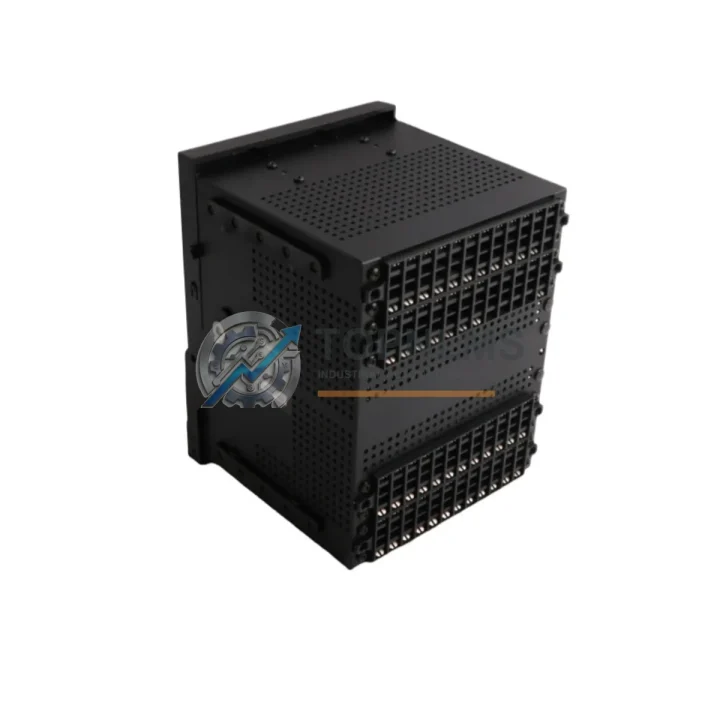

GE 750-P5-G5-D5-HI-A20-R Original Industrial Spare UR Series Compatible

Product Overview

GE 750-P5-G5-D5-HI-A20-R Original Industrial Spare UR Series Compatible: System Stability & Feeder Protection Assurance

The GE Grid Solutions 750-P5-G5-D5-HI-A20-R is a fully configured UR Series Feeder Management Relay engineered for demanding industrial power distribution environments. Designed to deliver precise overcurrent, earth fault, and directional protection across medium-voltage feeder circuits, this relay is a cornerstone component in substations, motor control centers, and distributed generation systems. Sourcing an original spare unit of the 750-P5-G5-D5-HI-A20-R is a proactive investment in system uptime — eliminating the risk of extended outages caused by relay failure in critical feeder circuits.

At TOPNLMS, every 750-P5-G5-D5-HI-A20-R unit is sourced from verified supply channels, subjected to pre-shipment functional testing, and backed by a 12-month warranty. Whether you are managing a planned maintenance window, responding to an unplanned trip event, or building a strategic spare parts inventory, this relay ships ready for immediate installation.

Critical Technical Specs

Preventive Maintenance Strategy

A feeder management relay like the 750-P5-G5-D5-HI-A20-R does not operate in isolation — it is the decision-making core of a broader protection and control circuit. Experienced maintenance engineers know that when a relay is replaced or inspected, the surrounding components must be evaluated simultaneously to prevent cascading failures and to validate the integrity of the entire protection loop.

During a scheduled outage or corrective maintenance event involving the 750-P5-G5-D5-HI-A20-R, it is strongly recommended to inspect and, where appropriate, pre-stock spares for the following associated components:

Current Transformer (CT) secondary wiring and terminal blocks should be verified for insulation integrity and secure termination — loose CT circuits can cause relay misoperation independent of relay health. Alongside this, the GE UR Series power supply module (A20 or equivalent) should be load-tested; a degraded power supply is a common root cause of relay resets and spurious trips that are often misattributed to the relay itself.

The UR Series digital I/O module (D5 type) — responsible for binary input conditioning and output contact switching — should have its output contacts checked for contact resistance and welding, particularly on trip coil circuits that operate infrequently. Similarly, the UR Series communication module (rear RS-485 or optional Ethernet card) should be tested for SCADA connectivity continuity, as communication failures can mask relay status during critical events.

For facilities running IEC 61850 architectures, the GOOSE message configuration and IED dataset mappings should be re-validated after any relay replacement to ensure protection coordination with upstream and downstream IEDs such as the GE T60 Transformer Management Relay or GE B90 Bus Differential Relay, which may share GOOSE interlocking schemes with the 750 feeder relay.

At the panel level, auxiliary relays and output relay modules on the trip and close circuits should be inspected for coil resistance and contact condition. Fuse modules and miniature circuit breakers protecting the relay’s DC auxiliary supply should be tested and replaced on a time-based schedule regardless of apparent condition. Signal isolators on analog output loops — where the relay interfaces with metering or SCADA analog inputs — should be calibrated to prevent drift-induced measurement errors.

Finally, the HMI front panel module and relay settings file (EnerVista UR Setup configuration) should be archived and version-controlled before any replacement, ensuring that the new 750-P5-G5-D5-HI-A20-R unit can be commissioned rapidly with the correct protection settings, eliminating the risk of protection gaps during the changeover window.

Strategic Replacement Solutions

The GE UR Series platform has been deployed globally since the late 1990s, and many installations are now operating well beyond their original design lifecycle. The 750-P5-G5-D5-HI-A20-R provides a direct, form-fit-function replacement for aging UR Series feeder relay configurations without requiring panel rewiring, chassis replacement, or SCADA reconfiguration — provided the replacement unit carries the same module slot configuration.

For facilities managing legacy GE Multilin 750 installations where original spare units are no longer available through OEM channels, sourcing a verified original spare from TOPNLMS eliminates the need for costly engineering studies associated with cross-platform migration. The relay’s modular architecture means that individual slot modules — processor, I/O, power supply, and communication — can be replaced independently, further extending the serviceable life of the installed chassis and reducing total maintenance cost.

Planned replacement of the 750-P5-G5-D5-HI-A20-R during a scheduled outage, rather than waiting for in-service failure, reduces mean time to repair (MTTR) from hours to minutes and eliminates the risk of unplanned production loss. Facilities with multiple feeder bays running identical relay configurations benefit from maintaining at least one hot-spare unit on-site, enabling same-shift restoration without waiting for international logistics.

TOPNLMS pre-configures each unit with a standard factory default settings file upon request, and can coordinate with your engineering team to pre-load site-specific settings files prior to shipment — further compressing commissioning time on the day of replacement.

Support FAQ

Q1: Is the 750-P5-G5-D5-HI-A20-R a direct drop-in replacement for my existing GE Multilin 750 relay?
Yes — provided your existing relay uses the same module slot configuration (P5 processor, G5 AC input, D5 I/O, HI front panel, A20 power supply, R rear port). The UR Series chassis and wiring are fully compatible. Your existing settings file can be uploaded via EnerVista UR Setup software without modification.

Q2: What pre-shipment testing is performed on each unit?
Every 750-P5-G5-D5-HI-A20-R unit undergoes power-on functional verification, module communication self-test, and output contact continuity check before shipment. A test report is available upon request. Units are shipped in anti-static packaging with physical protection for the front panel HMI.

Q3: What does the 12-month warranty cover?
The warranty covers manufacturing defects and functional failure under normal operating conditions for 12 months from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage events, or physical impact. Warranty claims are processed within 5 business days of receipt of the returned unit.

Q4: How should I manage spare parts inventory for a multi-feeder substation running UR Series relays?
For substations with 4 or more feeder bays using identical relay configurations, maintaining one on-site spare unit is the industry-standard recommendation. For mixed configurations, TOPNLMS can assist with a spare parts rationalization review to identify the minimum spare set that covers the highest-risk relay positions, balancing inventory cost against outage risk exposure.
