GE DS200SHVIG1BGD Replacement Upgrade Solution for Mark VI

Product Overview

GE DS200SHVIG1BGD Replacement Upgrade Solution for Mark VI: Smooth Transition from Legacy Turbine Control Systems

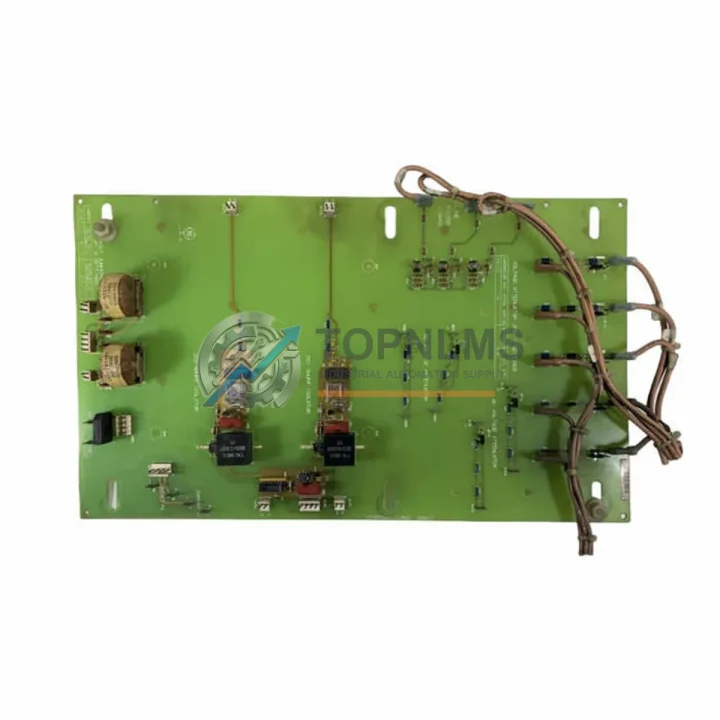

The GE DS200SHVIG1BGD Servo Hi-Voltage Interface Board is a critical component within the GE Mark VI Turbine Control System, designed to interface high-voltage servo actuator signals with the core control architecture. As aging Mark V and early Mark VI installations approach end-of-life, plant engineers and procurement teams are actively sourcing verified replacement and upgrade solutions that minimize retrofit complexity, reduce unplanned downtime, and preserve existing wiring infrastructure.

TOPNLMS stocks the DS200SHVIG1BGD as a direct replacement module, fully tested and ready to ship. Whether you are executing a planned outage swap, responding to an emergency board failure, or executing a phased migration from a GE Mark V platform to a modernized Mark VI or Mark VIe architecture, this board provides the electrical and signal compatibility required for a seamless transition.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful DS200SHVIG1BGD replacement rarely occurs in isolation. During a Mark VI retrofit or emergency board swap, field engineers typically address several adjacent components to ensure system integrity and avoid repeat outages.

The DS200SDCIG1A DC Power Interface Board is commonly replaced alongside the SHVIG board, as both share the same servo power bus and are subject to similar voltage stress over time. If your installation uses a DS200TCQAG1B Turbine Control Quad Analog I/O Board for valve position feedback, verifying its calibration after a servo interface replacement is standard practice.

For sites running TMR (Triple Modular Redundant) configurations, the DS200DSPCH1A Digital Signal Processor board and the DS200IOCAG1B I/O Controller Board should be inspected as part of the same maintenance window. Communication integrity between the servo interface and the UCVEH Mark VI VCMI Controller should be validated via the ToolboxST configuration software before returning the unit to service.

Sites migrating from Mark V to Mark VI will also need to evaluate the DS200EXPNG1A Expansion Board and the DS200TCDAG1A Turbine Control D/A Board to ensure analog output compatibility with existing actuator wiring. In control cabinets where space is constrained, the IS200TSVOH1B Servo Output Terminal Board provides a compact interface solution that pairs directly with the DS200SHVIG1BGD.

For plants upgrading communication infrastructure simultaneously, the DS200CPCAG1A Communication Processor Card enables IONet-to-Ethernet bridging, supporting remote diagnostics and SCADA integration without requiring a full controller replacement.

Retrofit Guidance FAQ

Q: Can I replace the DS200SHVIG1BGD without rewiring the servo actuator field cables?
A: In the majority of Mark VI installations, the field wiring connector pinout is identical to the replacement board. No rewiring is required. Verify terminal block assignments against your site-specific wiring diagram before installation.

Q: Is the DS200SHVIG1BGD compatible with both simplex and TMR Mark VI configurations?
A: Yes. The board is used in both simplex (single controller) and TMR configurations. In TMR systems, all three R, S, and T controller slots should be inspected; replace boards in matched sets where possible to maintain voting integrity.

Q: What programming or configuration changes are required after replacement?
A: In most cases, no ToolboxST configuration changes are required for a like-for-like board swap. The replacement board inherits the existing application code and I/O configuration from the controller. A servo calibration verification is recommended post-installation.

Q: What communication protocol does the DS200SHVIG1BGD use?
A: The board communicates over the Mark VI IONet backplane bus. It does not require separate network configuration. Ensure the IONet segment is healthy before and after replacement using ToolboxST diagnostics.

Q: How much physical space does the replacement board require?
A: The DS200SHVIG1BGD occupies a single card slot in the standard Mark VI R-type controller rack. No additional mounting hardware or bracket modifications are required.

Q: What is the recommended procedure for minimizing downtime during replacement?
A: Pre-stage the replacement board, verify firmware revision compatibility, execute a controlled shutdown per GE Mark VI maintenance procedures, swap the board, restore power, and validate servo loop response before returning to automatic control. Total replacement time in a prepared environment is typically under two hours.

Warranty Assurance

Every DS200SHVIG1BGD unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to shipment, each board undergoes functional testing to verify servo interface signal integrity, power rail stability, and connector condition. Units are inspected for physical damage, corrosion, and component integrity before packaging.

In the event of a warranty claim, TOPNLMS provides replacement support with priority processing for critical plant applications. Our technical team is available to assist with installation verification, fault diagnosis, and compatibility confirmation before and after shipment.

Procurement teams can request test reports, inspection records, and shipping documentation (including commercial invoice and packing list) for customs clearance and internal audit purposes. Standard lead time for in-stock units is 3–7 business days for international destinations. Express shipping options are available for emergency outage situations.

For volume procurement, long-term supply agreements, and multi-site retrofit projects, contact our industrial automation team directly to discuss pricing, availability, and technical support packages.
