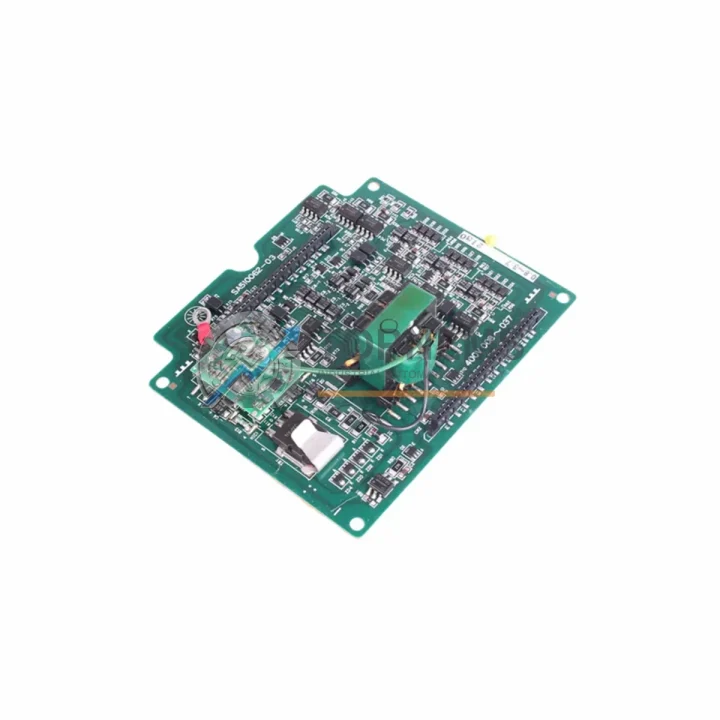

FUJI SA510062-02 Ruggedized Circuit Board Module

Product Overview

FUJI SA510062-02 Ruggedized Circuit Board Module: Industrial Resilience for Harsh Environments

The FUJI SA510062-02 is a ruggedized circuit board module engineered by FUJI Electric to deliver consistent, reliable performance in the most demanding industrial environments. Whether deployed in high-temperature foundries, high-humidity coastal processing plants, dust-laden mining operations, or vibration-intensive heavy manufacturing lines, this module is built to sustain continuous operation where standard electronics would fail. For maintenance engineers and procurement specialists managing critical infrastructure, the SA510062-02 represents a proven, field-tested solution that minimizes unplanned downtime and extends the operational life of existing FUJI Electric control systems.

FUJI Electric’s SA510062-02 circuit board module is designed to integrate seamlessly within FUJI’s broader automation architecture, including FUJI FRENIC series inverters and associated drive control systems. Its robust construction addresses the core challenges of industrial field deployment: electromagnetic interference (EMI) from adjacent variable frequency drives, mechanical stress from constant vibration, and thermal cycling from fluctuating ambient temperatures. Facilities that rely on FUJI FRENIC-Multi, FRENIC-Ace, or FRENIC-MEGA series drives will find the SA510062-02 a directly compatible and immediately deployable replacement board, eliminating the need for costly system redesigns or extended procurement lead times.

Rugged Specifications Table

Comprehensive Protection Solutions

In any industrial control cabinet housing FUJI Electric drives, the SA510062-02 circuit board module does not operate in isolation. Its long-term reliability is directly tied to the health of the surrounding system components. During scheduled maintenance or emergency replacement of the SA510062-02, experienced maintenance teams routinely inspect and, where necessary, replace adjacent components to prevent cascading failures across the entire drive system.

The FUJI FRENIC series gate driver board, which interfaces directly with the IGBT power module stack, should be inspected for thermal stress and carbon tracking whenever the SA510062-02 is serviced. Similarly, the DC bus capacitor bank within the drive chassis is a common wear item in high-cycle environments; capacitor degradation can induce voltage ripple that stresses control boards like the SA510062-02 prematurely. Replacing aging capacitor assemblies alongside the control board is a recognized best practice in drive maintenance programs.

The FUJI OPC-G1-RY relay output option card and OPC-G1-DIO digital I/O expansion card are frequently installed in the same control cabinet and share the same communication backplane. If the SA510062-02 has failed due to a surge event, these option cards should be tested for latent damage before the system is returned to service. Likewise, the FUJI keypad panel (TP-G1-J2 or equivalent) connected to the drive should be verified for communication integrity after any board-level replacement to ensure the HMI interface reflects accurate drive status.

For facilities running multi-drive configurations on a shared Modbus RTU or PROFIBUS network, the FUJI OPC-G1-PDP PROFIBUS-DP communication card and associated RS-485 signal isolators should be checked for proper termination and isolation resistance. A compromised communication module can generate spurious fault signals that mask the true root cause of a drive trip, complicating diagnostics and extending downtime. Installing a dedicated signal isolator between the PLC and the drive network is a low-cost measure that significantly improves system resilience and protects the SA510062-02 from network-induced transients.

Power quality at the drive input is another critical factor in protecting the SA510062-02. A FUJI ACL series AC input reactor or DC link choke, installed upstream of the drive, reduces harmonic distortion and shields the control board from voltage spikes originating on the plant bus. In facilities with frequent motor starts or regenerative loads — such as crane drives, press lines, or centrifuge systems — this upstream protection is essential. Surge protection devices (SPDs) at the control cabinet entry point provide an additional layer of defense against transient overvoltages that can destroy sensitive PCB components in milliseconds.

Finally, the terminal block assemblies and control wiring within the cabinet should be inspected for loose connections, insulation degradation, and corrosion — particularly in humid or chemically aggressive environments. Loose terminals are a leading cause of intermittent faults that are often misdiagnosed as board failures. A thorough terminal inspection, combined with replacement of the SA510062-02, ensures that the repaired drive returns to full reliability rather than experiencing a repeat failure within weeks of recommissioning.

Application in Critical Infrastructure

The FUJI SA510062-02 circuit board module finds its most critical applications in industries where unplanned downtime carries severe operational and financial consequences. In oil and gas processing facilities, FUJI Electric drives equipped with the SA510062-02 control compressor motors, pump drives, and cooling fan systems that must operate continuously in environments characterized by hydrocarbon vapors, high ambient temperatures, and aggressive humidity cycles. A failed control board in this context can halt production and trigger safety shutdowns; having a verified replacement SA510062-02 in the on-site spare parts inventory is standard practice for reliability-centered maintenance programs.

In underground mining operations, the SA510062-02 supports conveyor drive systems and ventilation fan controllers that operate in environments with extreme dust loading, mechanical vibration from blasting operations, and wide temperature swings between surface and underground conditions. The board’s robust construction and FUJI Electric’s quality manufacturing standards make it a trusted component in these high-consequence applications where a single drive failure can halt an entire production level.

Power generation facilities — including thermal, hydroelectric, and wind energy plants — rely on FUJI FRENIC drives for auxiliary motor control, cooling water pumps, and fuel handling systems. The SA510062-02 is a key control element in these drives, and its availability as a spare part directly supports the plant’s ability to maintain generation capacity during scheduled outages and emergency repairs. Procurement teams at power utilities increasingly maintain pre-qualified spare board inventories to meet grid reliability obligations.

Water and wastewater treatment plants present a particularly challenging environment for electronic components due to the combination of high humidity, chemical vapors from chlorination and aeration processes, and the requirement for 24/7 continuous operation. FUJI Electric drives with the SA510062-02 control aeration blowers, sludge pump drives, and filtration system motors in these facilities. Metallurgical plants and steel mills, with their extreme thermal loads and heavy electromagnetic interference from arc furnaces and induction heating systems, similarly depend on the rugged performance of FUJI Electric control boards to maintain rolling mill and material handling drive reliability across multi-shift continuous production schedules.

Security & Quality FAQ

Q1: What warranty coverage is provided with the SA510062-02?
Every SA510062-02 shipped by TOPNLMS is covered by a 12-month warranty from the date of shipment. This warranty covers manufacturing defects and functional failures under normal operating conditions. Our technical team provides post-sale support to assist with installation verification and fault diagnosis throughout the warranty period, at no additional charge.

Q2: How is the SA510062-02 tested before shipment?
Each unit undergoes a multi-point functional inspection prior to dispatch, including visual inspection for physical damage, component-level continuity checks, and where applicable, powered functional testing against FUJI Electric’s original performance specifications. A test report is available upon request for quality-critical procurement processes and ISO-compliant maintenance records.

Q3: Is the SA510062-02 compatible with all FUJI FRENIC series drives?
The SA510062-02 is designed for specific models within the FUJI FRENIC drive family. Compatibility depends on the drive model, firmware version, and chassis generation. We recommend providing your complete drive nameplate data — model number, rated capacity, and software version — when placing an order so our technical team can confirm direct compatibility before shipment and eliminate any risk of incorrect part installation.

Q4: What is your lead time and long-term supply availability?
In-stock units are typically dispatched within 1–3 business days. For facilities requiring ongoing supply of the SA510062-02 as part of a preventive maintenance program, TOPNLMS offers reserved stock arrangements and priority fulfillment agreements. Contact our team to discuss volume pricing and long-term supply contracts that align with your maintenance planning cycle and annual MRO budget.
