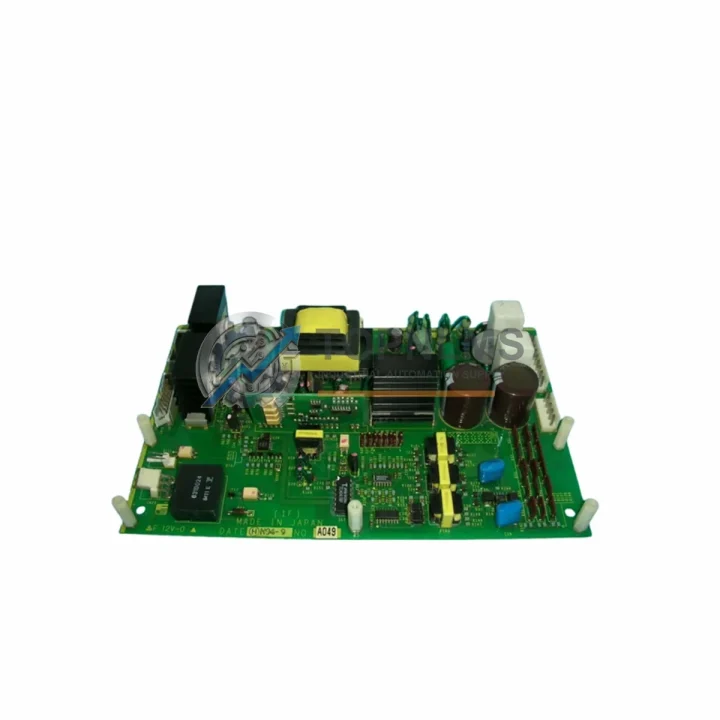

Fuji Electric EP-3531D C1-Z1 Ruggedized Gate Driver Module

Product Overview

Fuji Electric EP-3531D C1-Z1 Ruggedized Gate Driver Module: Industrial Resilience for Harsh Environments

The Fuji Electric EP-3531D C1-Z1 is a precision-engineered gate driver PCB designed for the FRENIC series variable frequency drive (VFD) platform. Built to Fuji Electric’s exacting industrial standards, this module delivers reliable IGBT switching control in environments where thermal stress, electromagnetic interference, vibration, and airborne contaminants are constant operational realities. Whether deployed in a continuous production line, a heavy-duty motor control center, or a hazardous-area control cabinet, the EP-3531D C1-Z1 maintains stable gate signal integrity and protects downstream power electronics from fault propagation.

In high-temperature manufacturing facilities — such as steel rolling mills, aluminum smelters, or cement kilns — drive components are subjected to sustained thermal cycling that degrades ordinary PCBs over time. The EP-3531D C1-Z1’s conformal-coated substrate and thermally robust component selection allow it to sustain continuous operation across the full FRENIC drive operating temperature range, ensuring that motor speed regulation remains precise even as ambient conditions fluctuate. Paired with the FRENIC-Mega or FRENIC-Multi main control board, this gate driver maintains synchronization with the PWM command signals, preventing shoot-through events that could damage the IGBT power module stack.

In petrochemical plants, offshore platforms, and natural gas compression stations, electrical noise from high-power switchgear, variable-speed pumps, and large transformer banks creates an aggressive EMI environment. The EP-3531D C1-Z1 incorporates isolated gate drive circuitry that decouples the low-voltage control domain from the high-voltage power stage, preserving signal fidelity even when installed adjacent to large contactors, soft starters, or other FRENIC series drives sharing the same control cabinet. This isolation is equally critical in water treatment facilities, where submersible pump drives and chemical dosing systems operate in close proximity within compact enclosures.

Mining operations — underground coal extraction, open-pit copper mining, and hard-rock tunneling — demand components that tolerate vibration levels far beyond standard industrial ratings. Conveyor belt drives, hoist motors, and ventilation fan controllers powered by FRENIC series VFDs rely on the EP-3531D C1-Z1 to maintain gate timing accuracy despite mechanical shock and continuous low-frequency vibration. The PCB’s robust solder joints and mechanically secured connectors are designed to resist the micro-fractures that vibration induces in lesser components over extended service intervals.

For power generation and grid-tied applications — including wind turbine pitch control systems, hydroelectric governor drives, and industrial UPS motor drives — the EP-3531D C1-Z1 provides the switching precision required to meet tight harmonic distortion and power factor targets. When integrated with Fuji Electric’s FRENIC-HVAC or FRENIC-Lift drive variants, the gate driver ensures smooth torque delivery and regenerative braking performance, reducing mechanical wear on elevator traction machines and HVAC fan assemblies.

In automated assembly lines and robotic welding cells, where servo drives, I/O modules, safety relay modules, and communication gateway modules share a common 24 VDC control bus, the EP-3531D C1-Z1 contributes to overall system availability by eliminating a common single point of failure. A faulty gate driver is one of the leading causes of unplanned VFD downtime; stocking a verified replacement EP-3531D C1-Z1 reduces mean time to repair (MTTR) from days to hours. Facilities that maintain a spare parts inventory alongside FRENIC series control boards, power supply modules, and terminal block assemblies consistently achieve higher overall equipment effectiveness (OEE) scores than those relying on spot procurement.

The EP-3531D C1-Z1 is also directly relevant to facilities operating Fuji Electric FRENIC-Eco drives in energy-intensive processes such as large centrifugal compressors, cooling tower fans, and chiller pump systems. In these applications, the gate driver’s precise dead-time control minimizes switching losses, contributing to the drive’s overall energy efficiency rating. When the gate driver degrades, switching losses increase, motor current waveform distortion rises, and the drive’s thermal management system is forced to compensate — accelerating wear on the cooling fan module and heat sink assembly. Proactive replacement of the EP-3531D C1-Z1 at the first sign of gate signal anomaly prevents cascading thermal failures.

At TOPNLMS, every EP-3531D C1-Z1 unit is sourced through verified supply channels, individually inspected, and functionally tested prior to dispatch. Our quality control process includes visual inspection for PCB delamination, component integrity verification, and continuity testing of all gate drive output channels. Units are shipped in anti-static packaging with appropriate cushioning to prevent transit damage, and each shipment is accompanied by a test report upon request.

Rugged Specifications Table

Comprehensive Protection Solutions

The EP-3531D C1-Z1 does not operate in isolation — it is one critical node within a broader FRENIC drive protection and control architecture. In a fully configured motor control center, the gate driver works in concert with the FRENIC series main control PCB, which generates the PWM reference signals, and the IGBT power module, which executes the actual switching. Upstream, a Fuji Electric FRENIC series power supply board provides the regulated DC bus voltage that the gate driver relies on for stable bias supply. Any degradation in the power supply board’s output ripple directly affects gate drive timing accuracy.

On the I/O and communications side, the EP-3531D C1-Z1-equipped drive typically interfaces with a FRENIC series option card — such as a PROFIBUS-DP, DeviceNet, or Modbus RTU communication module — allowing the host PLC or DCS to issue speed references and read drive status in real time. In Siemens S7-300 or S7-1500 PLC-based architectures, the drive’s fieldbus option card connects to the PLC’s CP communication processor module, enabling coordinated multi-axis speed control across conveyor systems or pump stations. Safety-critical installations additionally incorporate a Fuji Electric FRENIC series safe torque off (STO) module or an external safety relay module (such as a Pilz PNOZ or Siemens 3SK series) wired into the drive’s STO input terminals, ensuring that the gate driver is inhibited during emergency stop conditions without requiring a full drive power cycle.

In the control cabinet, the EP-3531D C1-Z1-equipped drive shares panel space with 24 VDC DIN rail power supplies, terminal block assemblies (such as Phoenix Contact or Weidmüller multi-tier terminal strips), and surge protection devices on signal and power lines. Proper cabinet thermal management — including fan tray modules and temperature monitoring relays — is essential to preserving the gate driver’s long-term reliability. Facilities that neglect cabinet cooling often find that gate driver PCBs are among the first components to exhibit heat-induced parameter drift.

Application in Critical Infrastructure

In oil and gas upstream operations, FRENIC series drives equipped with the EP-3531D C1-Z1 gate driver control electric submersible pumps (ESPs), gas compressor motors, and wellhead injection pump drives. The gate driver’s isolation architecture is particularly valued in these environments, where ground potential differences between field equipment and control room systems can introduce common-mode noise that corrupts gate signals in less robustly designed drives.

In mining and mineral processing, ball mill drives, SAG mill motors, and conveyor head-end drives operate under high starting torque demands and frequent load transients. The EP-3531D C1-Z1 supports the FRENIC drive’s dynamic torque boost function by maintaining gate signal integrity during the high-current intervals associated with motor starting, preventing nuisance overcurrent trips that would halt production.

In power generation and transmission, auxiliary motor drives for boiler feed pumps, induced draft fans, and cooling water pumps in thermal power stations rely on FRENIC series VFDs for energy-efficient flow control. The EP-3531D C1-Z1’s role in maintaining precise switching frequency stability directly contributes to the drive’s ability to meet grid harmonic emission limits imposed by utility interconnection agreements.

In water and wastewater treatment, FRENIC drives control submersible sewage pumps, aeration blowers, and sludge dewatering centrifuges in environments characterized by high humidity, hydrogen sulfide exposure, and frequent wash-down cycles. The gate driver’s conformal coating provides a critical barrier against moisture ingress that would otherwise cause corrosion-induced leakage currents on the PCB surface.

In metallurgical and steel production facilities, rolling mill main drives and continuous casting machine drives demand the highest levels of gate driver reliability. An unplanned drive trip in a continuous casting line can result in a breakout event with significant safety and financial consequences. Maintaining a verified spare EP-3531D C1-Z1 in the plant’s critical spare parts inventory is a standard risk mitigation practice in these facilities.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is a warranty claim processed?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. If a unit fails within the warranty period, TOPNLMS will provide a replacement unit or full refund after the returned unit is inspected. Warranty claims are initiated by contacting [email protected] with the order reference and a description of the failure mode. We aim to resolve all warranty cases within 5 business days of receiving the returned unit.

Q2: How is each EP-3531D C1-Z1 tested before shipment?
Every unit undergoes a pre-shipment inspection protocol that includes visual examination for PCB delamination, solder joint integrity, and component damage; continuity testing of all gate drive output channels; and power-on functional verification where test equipment permits. Units that do not pass all inspection criteria are quarantined and not offered for sale. A test report is available upon request for customers with documented quality assurance requirements.

Q3: Is the EP-3531D C1-Z1 compatible with all FRENIC series drive models?
The EP-3531D C1-Z1 is designed for specific FRENIC series drive models and power ratings. Compatibility depends on the drive’s frame size, power class, and PCB revision level. Customers are strongly encouraged to provide their drive’s full model number and nameplate data when placing an order so that our technical team can confirm compatibility before shipment. We do not recommend installing this gate driver in a drive model for which compatibility has not been verified.

Q4: Can TOPNLMS support long-term or repeat procurement of the EP-3531D C1-Z1?
Yes. TOPNLMS maintains ongoing sourcing relationships for FRENIC series spare parts and can support scheduled procurement programs, blanket orders, and emergency spot purchases. For facilities managing a critical spare parts program across multiple FRENIC drive installations, we recommend establishing a standing supply agreement to ensure availability. Contact [email protected] or call +86 18359293191 to discuss volume pricing and lead time commitments.
