FUJI G11-PPCB-4-2.2 SA528530-05 Ruggedized Power PCB for Harsh Environments

Product Overview

FUJI G11-PPCB-4-2.2 SA528530-05 Ruggedized Power PCB for Harsh Environments

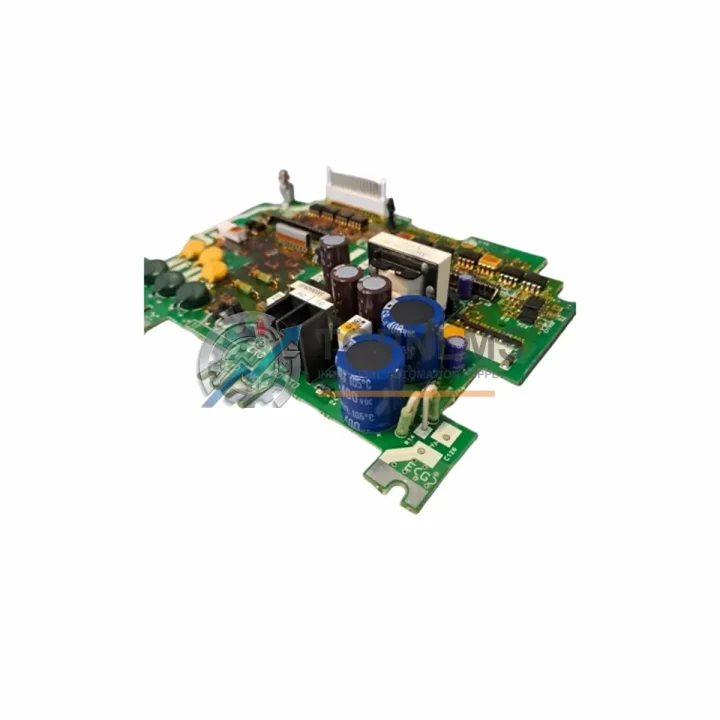

The FUJI G11-PPCB-4-2.2 SA528530-05 is the original power printed circuit board designed for the FRENIC G11 series variable frequency drive at 2.2kW, 400V three-phase input. Engineered by Fuji Electric to meet the demanding requirements of continuous industrial operation, this power PCB serves as the core switching and rectification assembly within the FRENIC G11 inverter platform — a drive series widely deployed across heavy manufacturing, process automation, and critical infrastructure worldwide.

In industrial environments where ambient temperatures fluctuate between -10°C and +50°C, where humidity levels can reach 95% non-condensing, and where airborne particulates, mechanical vibration, and electromagnetic interference are constant operational realities, the integrity of the drive’s power board is non-negotiable. The SA528530-05 revision of this board incorporates robust copper trace layouts, high-temperature-rated capacitors, and conformal coating-compatible substrate materials that allow it to maintain stable switching performance even under sustained thermal stress. Whether installed in a steel mill’s rolling line control cabinet, a mining ventilation shaft drive panel, or a water treatment plant’s pump control system, this board is built to keep the FRENIC G11 drive running without interruption.

The power PCB interfaces directly with the FRENIC G11’s IGBT module stack, gate driver board, and DC bus capacitor bank. When a drive fault is traced to the power stage — evidenced by overcurrent trips, DC bus voltage irregularities, or IGBT desaturation alarms — replacing the G11-PPCB-4-2.2 SA528530-05 is the most targeted and cost-effective repair path. It restores the drive to factory switching characteristics without requiring replacement of the entire FRENIC G11 unit, preserving the existing wiring, motor tuning parameters, and control panel configuration.

Rugged Specifications Table

Comprehensive Protection Solutions

The FRENIC G11 platform is a modular drive architecture, and the G11-PPCB-4-2.2 SA528530-05 power board operates as part of a tightly integrated system. When performing a power stage repair or preventive board replacement, procurement teams and field engineers should consider the broader component ecosystem to ensure a complete and reliable restoration.

The IGBT module paired with this power board — typically a 6-pack or dual-pack IGBT assembly rated for the 2.2kW 400V class — is the primary switching element that the SA528530-05 board drives. If the power PCB has failed due to a gate drive fault or shoot-through event, the IGBT module should be inspected and tested concurrently. Similarly, the FRENIC G11 control PCB (the CPU and parameter board, such as the G11-CPCB series) communicates with the power stage via isolated signal lines; verifying its integrity after a power fault is standard practice.

The FRENIC G11 gate driver board sits between the control PCB and the IGBT stack, and in many fault scenarios involving overcurrent or short-circuit events, both the power PCB and the gate driver board sustain damage simultaneously. Stocking both as a matched pair reduces second-visit risk during field repairs. The DC bus capacitor assembly for the FRENIC G11 2.2kW class should also be evaluated — electrolytic capacitors on the DC bus are a common wear item in drives operating in high-ambient-temperature environments such as foundry floors or outdoor pump stations.

For facilities running multiple FRENIC G11 units across a production line — for example, coordinating conveyor drives, cooling fan drives, and compressor drives within a single control cabinet — maintaining a spare G11-PPCB-4-2.2 SA528530-05 board on-site eliminates the risk of extended downtime caused by international shipping lead times. Complementary spare parts in the same cabinet may include the FRENIC G11 keypad operator panel (TP-G11S), the RS-485 communication option card for Modbus RTU integration with SCADA systems, and the braking resistor unit for applications with regenerative loads such as hoists or centrifuges.

In petrochemical and oil & gas facilities where the FRENIC G11 drives control pump motors in classified hazardous areas, the drive is typically installed in a purged and pressurized enclosure or a remote MCC. In these configurations, the power PCB is a critical spare because physical access to the drive for on-site repair is restricted. Having a tested, warranted SA528530-05 board available for rapid swap-out is a key element of the site’s maintenance strategy. The Fuji Electric FRENIC-Eco and FRENIC-Multi series drives, which share similar architectural principles, may also be present in the same facility, and their respective power boards should be stocked alongside the G11 series components.

Application in Critical Infrastructure

The FUJI G11-PPCB-4-2.2 SA528530-05 sees active deployment across a wide range of critical industrial sectors. In water and wastewater treatment plants, FRENIC G11 drives control submersible pump motors, aeration blowers, and sludge dewatering equipment. These installations operate continuously, often in high-humidity pump rooms where condensation and corrosive gases accelerate PCB degradation. The power board’s robust construction and conformal-coating-compatible design make it well-suited for these conditions.

In mining operations — underground coal mines, open-pit copper mines, and mineral processing plants — FRENIC G11 drives manage conveyor belt motors, ventilation fan drives, and ore crusher auxiliary systems. Vibration levels in these environments are extreme, and the mechanical integrity of solder joints and connector interfaces on the power PCB is critical to sustained operation. The SA528530-05 board, manufactured to Fuji Electric’s OEM quality standards, meets these demands.

In power generation and electrical utilities, FRENIC G11 drives are used for cooling water pump control, induced draft fan speed regulation, and auxiliary equipment management in thermal and hydroelectric power stations. Unplanned drive downtime in these applications can cascade into generation capacity loss, making rapid access to verified spare power boards an operational priority.

In metallurgical and steel production facilities, the FRENIC G11 platform controls rolling mill auxiliary drives, cooling system pumps, and fume extraction fans. Ambient temperatures near furnaces and casting lines regularly exceed 40°C, placing sustained thermal stress on drive power electronics. Proactive replacement of the power PCB during scheduled maintenance outages — rather than waiting for failure — is the preferred strategy in these high-consequence environments.

Security & Quality FAQ

Q1: What warranty coverage is provided with the G11-PPCB-4-2.2 SA528530-05?
All units shipped by TOPNLMS carry a 12-month warranty from the date of shipment. This covers manufacturing defects and functional failures under normal operating conditions. Warranty claims are supported by our technical team with replacement or repair options, and our response time for warranty inquiries is within one business day.

Q2: How is each board tested before shipment?
Every G11-PPCB-4-2.2 SA528530-05 unit undergoes a pre-shipment inspection that includes visual examination for physical damage, component integrity verification, and functional testing where applicable. Units are shipped in anti-static packaging with desiccant to prevent moisture ingress during transit. A test report is available upon request for critical procurement applications.

Q3: Is this board compatible with all FRENIC G11 2.2kW 400V drive variants?
The SA528530-05 revision is the standard power PCB for the FRENIC G11 2.2kW 400V class (FRN2.2G11S-4EN and equivalent regional variants). Compatibility with specific drive serial number ranges should be confirmed against the drive’s internal label or Fuji Electric’s service documentation. Our technical team can assist with cross-referencing your drive’s serial number to confirm fitment before purchase.

Q4: What is the typical lead time and shipping arrangement?
In-stock units are dispatched within 1–3 business days of order confirmation. We ship globally via DHL Express, FedEx International Priority, and UPS Worldwide, with typical transit times of 3–7 business days to most destinations. Export documentation, including commercial invoices and packing lists compliant with customs requirements, is prepared for every international shipment. For urgent requirements, expedited shipping options are available — contact our team directly to arrange.
