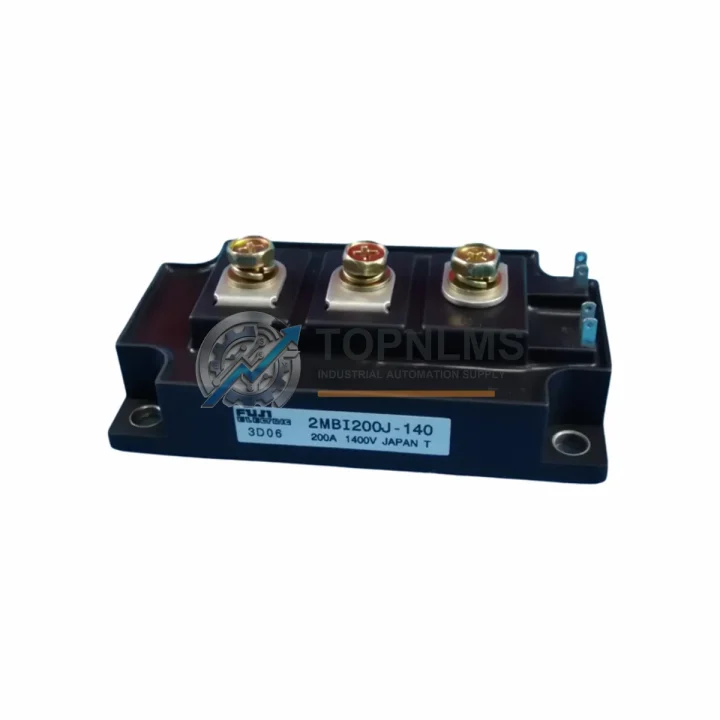

Fuji Electric 2MBI200J-140 Ruggedized IGBT Module

Product Overview

Fuji Electric 2MBI200J-140 Ruggedized IGBT Module: Industrial Resilience for Harsh Environments

The Fuji Electric 2MBI200J-140 is a 200A / 1400V half-bridge IGBT power module engineered for continuous, fault-free operation in the most demanding industrial environments. Designed as part of Fuji Electric’s proven J-Series power semiconductor platform, this module delivers exceptional switching performance, thermal stability, and electromagnetic immunity — making it the preferred choice for engineers specifying power conversion systems in high-temperature, high-humidity, dust-laden, vibration-intensive, and electromagnetically noisy industrial facilities.

Whether deployed in a steel mill’s rolling-line drive cabinet, a petrochemical plant’s variable-speed pump system, or a municipal water treatment facility’s motor control center, the 2MBI200J-140 maintains stable gate-drive response and low conduction losses across the full operating temperature range. Its robust ceramic substrate and optimized internal bond-wire architecture resist the mechanical fatigue caused by thermal cycling — a critical advantage in continuous-production environments where unplanned downtime carries severe operational and financial consequences.

Rugged Specifications Table

Comprehensive Protection Solutions

The 2MBI200J-140 does not operate in isolation — it is a critical node within a broader industrial power and control architecture. In a typical medium-voltage drive cabinet, this IGBT module works in concert with a Fuji Electric 2MBI100J-140 or 2MBI300J-140 to form scalable half-bridge or full-bridge inverter stages, depending on load requirements. Gate-drive signals are conditioned by dedicated IGBT driver boards — such as the Fuji Electric EXB841 or compatible isolated gate-drive units — which provide short-circuit protection, desaturation detection, and soft-shutdown capability essential for protecting the module under fault conditions.

On the control side, the drive system interfaces with PLC platforms — including Siemens S7-300 or S7-1500 CPU modules — via PROFIBUS-DP or PROFINET communication modules such as the Siemens 6GK7 343-1EX30-0XE0 CP 343-1. Analog and digital I/O modules relay speed references, fault signals, and status feedback between the PLC and the drive’s control board. In safety-critical installations, a Siemens ET 200SP F-DI safety input module or equivalent TÜV-certified safety I/O module monitors emergency-stop circuits and safety interlocks, ensuring SIL 2 or SIL 3 compliance where required.

Power quality upstream of the IGBT stage is maintained by line reactors and EMC filters — components such as the Schaffner FN 3258 series three-phase EMC filter — which suppress conducted emissions and protect the module from voltage spikes and harmonic distortion generated by neighboring equipment on the same bus. A Fuji Electric BU series braking unit and braking resistor assembly manage regenerative energy during motor deceleration, preventing DC bus overvoltage events that could stress the 2MBI200J-140 beyond its VCES rating.

Industrial power supplies — such as the Phoenix Contact QUINT-PS/3AC/24VDC/20 or equivalent 24 VDC DIN-rail supply — provide stable auxiliary power to the control board, gate-drive circuitry, and communication modules within the same cabinet. Terminal blocks, surge protection devices, and shielded cable assemblies complete the installation, ensuring signal integrity and personnel safety in environments subject to lightning strikes, ground faults, or high-frequency interference from arc furnaces or large motor starts.

Application in Critical Infrastructure

In oil and gas facilities, the 2MBI200J-140 is deployed in variable-frequency drives controlling compressor motors, pipeline pumps, and wellhead injection systems. These environments demand modules that can withstand ambient temperatures exceeding 50°C, corrosive atmospheres, and the electromagnetic interference generated by high-power rotating machinery. The J-Series module’s low thermal resistance and robust isolation voltage make it a reliable choice for Zone 2 classified areas when installed within appropriately rated enclosures.

In underground mining operations, conveyor belt drives, hoist systems, and ventilation fan controllers rely on IGBT modules that can endure constant vibration, coal dust ingress, and humidity levels approaching saturation. The 2MBI200J-140’s ceramic-substrate construction and hermetically sealed internal structure provide the mechanical and environmental resilience required for continuous multi-shift operation without scheduled module replacement.

In electric power generation and grid-tie applications — including wind turbine converters, solar inverter strings, and UPS systems for critical infrastructure — the module’s 1400 V blocking voltage and 200 A continuous current rating provide the headroom needed to handle transient overcurrents and grid fault ride-through events. Metallurgical plants operating electric arc furnaces and induction heating systems similarly depend on high-voltage IGBT modules to modulate power delivery with millisecond-level precision, protecting both the process and the equipment from thermal runaway.

Municipal water treatment and pumping stations benefit from the module’s long service life and low maintenance requirements. In these facilities, drives running on 24/7 duty cycles must deliver consistent torque control across variable flow conditions, and any unplanned outage can disrupt water supply to large populations. Stocking a verified replacement 2MBI200J-140 as a critical spare reduces mean time to repair (MTTR) from days to hours.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is a claim processed?
The 12-month warranty covers all manufacturing defects and functional failures occurring under normal operating conditions as specified in the Fuji Electric datasheet. If a module fails within the warranty period, TOPNLMS will arrange replacement or repair after receiving the defective unit and confirming the failure mode. Warranty claims are initiated by contacting [email protected] with the order reference and a description of the fault.

Q2: How is each 2MBI200J-140 tested before shipment?
Every unit undergoes a full parametric and functional inspection prior to dispatch. Testing includes verification of VCES blocking voltage, gate threshold voltage (VGE(th)), collector-emitter saturation voltage (VCE(sat)), and isolation integrity. Units that do not meet Fuji Electric’s published specifications are quarantined and not shipped. A test report is available upon request for critical procurement applications.

Q3: Is the 2MBI200J-140 compatible with my existing drive or inverter platform?
The 2MBI200J-140 is a standard Fuji Electric J-Series half-bridge module and is a direct replacement for units of the same part number in Fuji Frenic, Frenic-Ace, and Frenic-Multi series drives, as well as in OEM drive platforms that specify this module. Compatibility with third-party drives should be confirmed against the original BOM or drive service manual. TOPNLMS technical staff can assist with cross-reference verification — contact us before ordering if you are unsure.

Q4: Can TOPNLMS guarantee long-term supply for ongoing maintenance programs?
Yes. TOPNLMS maintains dedicated stock of high-demand industrial power modules including the 2MBI200J-140 to support planned maintenance schedules, emergency replacements, and multi-unit procurement for new installations. For customers with recurring demand, we offer reserved stock arrangements and priority dispatch agreements. Contact our sales team to discuss volume pricing and supply continuity options.
