FUJI Electric 7MBI100N-060 Original Industrial Spare 7MBI Compatible: System Stability and Industrial Spare Parts Maintenance Value

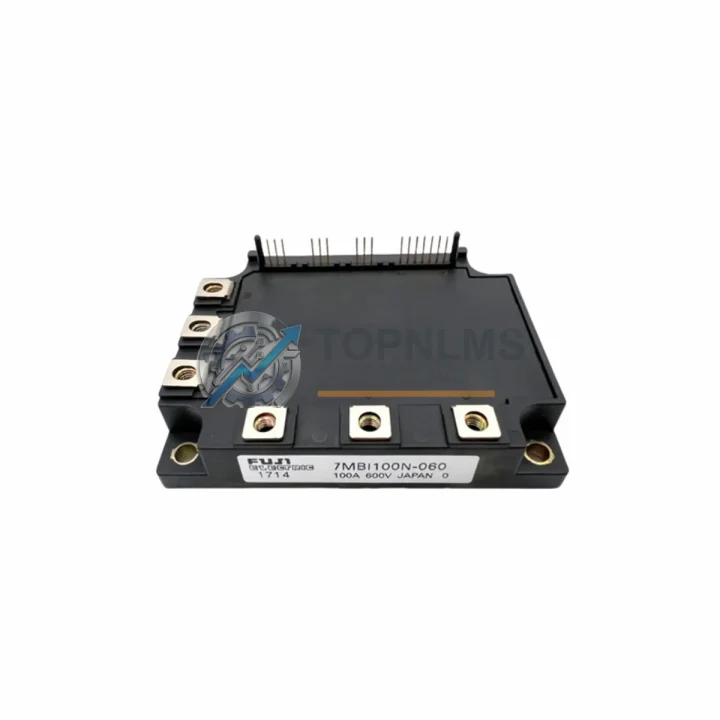

The FUJI Electric 7MBI100N-060 is a 6-in-1 IGBT power module rated at 100A and 600V, belonging to FUJI’s established 7MBI series. Designed for demanding industrial environments, this module serves as a core switching component in variable frequency drives (VFDs), servo amplifiers, UPS systems, and industrial inverters. When a production line experiences unexpected downtime due to IGBT module failure, the ability to source an original, tested replacement immediately is the difference between hours and days of lost output. The 7MBI100N-060 is a high-priority spare for any maintenance team managing FUJI-based drive systems.

Critical Technical Specs

Preventive Maintenance Strategy

IGBT module failure rarely occurs in isolation. In most industrial drive cabinets, a failed 7MBI100N-060 is a signal to inspect the entire power conversion chain. During a scheduled shutdown or emergency repair, maintenance engineers should treat the IGBT replacement as an opportunity to audit the full drive assembly.

Begin with the gate driver board — the gate resistors and optocouplers that interface directly with the 7MBI100N-060 are subject to thermal stress and should be tested before the new module is energized. A faulty gate driver is one of the most common root causes of repeat IGBT failure. At the same time, inspect the DC bus capacitors in the drive’s capacitor bank; aged or bulging electrolytic capacitors increase voltage ripple and accelerate IGBT degradation. Replacing the capacitor bank alongside the IGBT module is a best-practice recommendation for drives with more than five years of service.

The thermal interface between the 7MBI100N-060 and its heatsink is critical. Old or dried thermal grease significantly increases junction temperature and shortens module life. Always apply fresh thermal compound during reinstallation and verify heatsink mounting torque to specification. If the drive cabinet uses a cooling fan for the heatsink, inspect and replace the fan if it shows signs of bearing wear — a failed cooling fan is a common secondary cause of IGBT thermal runaway.

For drives in the same control cabinet, it is advisable to simultaneously check the input rectifier bridge module (such as the FUJI RM series or equivalent three-phase rectifier), the braking resistor and braking IGBT unit (often a separate 1MBI or 2MBI series module in FUJI systems), and the current sensing hall-effect sensors on the output phases. These components share the same thermal and electrical environment as the 7MBI100N-060 and are subject to similar aging mechanisms.

On the control side, inspect the FUJI drive’s control PCB for corrosion, loose ribbon cable connectors, and degraded electrolytic capacitors on the 5V and 15V power rails. The 24V DC power supply module feeding the control board should also be verified — an unstable control supply can cause erratic gate signals that stress the IGBT module. If the system uses a FUJI FRENIC or G11/P11 series inverter, the option cards (communication modules, encoder feedback cards, or PG speed control cards) should be reseated and tested as part of the maintenance cycle.

For facilities managing multiple FUJI drive systems, maintaining a minimum stock of one 7MBI100N-060 per drive line, alongside a matched set of gate driver boards and DC bus capacitors, is a proven strategy for reducing mean time to repair (MTTR). Pairing this with a documented inspection checklist — covering thermal paste condition, fan operation, capacitor ESR measurement, and gate signal verification — transforms reactive repairs into a structured preventive maintenance program.

Strategic Replacement Solutions

The 7MBI100N-060 is a well-established module in FUJI Electric’s 7MBI series, and original units remain available for systems that cannot be upgraded to newer drive platforms. For facilities operating legacy FUJI inverters — including older FRENIC5000 G9S, P9S, or equivalent series — sourcing an original 7MBI100N-060 is the lowest-risk replacement path. It preserves the original gate drive timing, thermal design, and mechanical footprint without requiring any firmware or parameter changes in the drive controller.

In cases where the drive system is being evaluated for modernization, the 7MBI100N-060 replacement can serve as a bridge solution: restoring production immediately while the engineering team assesses whether a full drive replacement or upgrade is warranted. This approach minimizes production loss and avoids the lead times associated with new drive procurement and commissioning.

For maintenance teams managing mixed fleets of FUJI and third-party drives, the 7MBI100N-060’s standardized 6-in-1 three-phase bridge configuration means that technicians familiar with IGBT module replacement procedures can execute the swap efficiently. All units supplied by TOPNLMS are tested prior to shipment, packaged in anti-static and shock-resistant materials, and accompanied by documentation supporting incoming inspection and traceability requirements.
