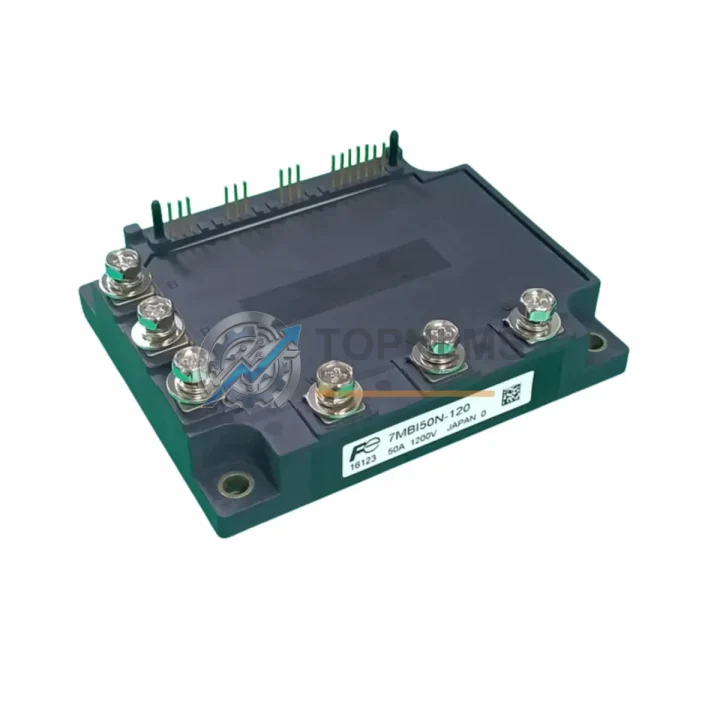

Fuji Electric 7MBI50N-120 Replacement for N-Series

Product Overview

Fuji Electric 7MBI50N-120 Replacement for N-Series: Smooth Transition & Legacy System Compatibility

When your drive system, servo controller, or industrial inverter relies on the Fuji Electric 7MBI50N-120 — a 50A, 1200V N-Series IGBT power module — an unexpected failure or end-of-life notice can halt production lines and trigger costly downtime. TOPNLMS supplies verified replacement and upgrade units of the 7MBI50N-120 to help engineering teams execute a seamless retrofit without redesigning the surrounding power circuit, gate driver board, or thermal management assembly.

The 7MBI50N-120 belongs to Fuji Electric’s 7MBI (N-Series) dual-in-line IGBT module family, widely deployed in AC motor drives, UPS systems, welding inverters, and servo amplifiers manufactured throughout the 1990s and 2000s. Many of these host systems — including legacy Fuji FRENIC, Mitsubishi FR-A500/F700 series drives, and Yaskawa VS-616 inverters — remain in active service in factories across Asia, Europe, and the Americas. When the original 7MBI50N-120 reaches end-of-life or sustains damage, engineers need a replacement that preserves the original gate drive voltage (±15 V), collector-emitter saturation voltage (V_CE(sat)), and the standard 62 mm module footprint to avoid PCB rework.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful 7MBI50N-120 retrofit rarely involves the IGBT module alone. In practice, field engineers replacing this module in a Fuji FRENIC-series drive or a comparable inverter cabinet will also inspect and often replace the surrounding components to ensure system reliability after the power stage swap.

The gate driver board paired with the 7MBI50N-120 typically outputs a ±15 V drive signal with a defined dead-time and short-circuit protection threshold. If the gate driver shows signs of degradation — evidenced by asymmetric switching waveforms or nuisance overcurrent trips — replacing it alongside the IGBT module eliminates a common root cause of repeat failures. Similarly, the DC bus capacitor bank in the same inverter section should be evaluated: aged electrolytic capacitors with elevated ESR can cause voltage spikes that stress the new module’s V_CES rating.

For systems using a Fuji Electric 7MBR50SA120 or 7MBR50SB120 in adjacent inverter phases, maintaining matched module generations across all three phases of a three-phase bridge reduces thermal and switching asymmetry. Engineers migrating from older N-Series modules to current E-Series or SA-Series equivalents should also verify that the NTC thermistor output on the new module is compatible with the drive’s over-temperature protection circuit — pin assignments and resistance curves can differ between generations.

In retrofit projects involving Mitsubishi FR-A500 or FR-F700 drives that originally used Mitsubishi CM50DY-24H or PM50RSA120 IPM modules, the 7MBI50N-120 is sometimes used as a discrete IGBT replacement when the original IPM is no longer available. In these cases, the gate drive circuit must be adapted to discrete IGBT drive requirements, and a separate bootstrap power supply or isolated DC/DC converter module may be required to generate the negative gate bias rail.

Control-side components — including the PLC I/O expansion module or fieldbus communication card (PROFIBUS, DeviceNet, or Modbus RTU) installed in the host drive — are unaffected by the power module swap and do not require reconfiguration. However, if the retrofit is part of a broader system modernization, this is an appropriate time to upgrade the drive’s operator panel or HMI terminal and to verify that the motor encoder feedback cable and resolver interface remain within specification.

For cabinet-level retrofits, the 24 V DC control power supply module feeding the gate driver and protection logic should be load-tested before commissioning the new IGBT module. A marginal power supply that previously caused intermittent faults may become a hard failure after the power stage is replaced and full load is restored.

Retrofit Guidance FAQ

Q: Can I install the 7MBI50N-120 replacement without modifying the existing wiring?
A: Yes. The replacement unit uses the same 62 mm standard module footprint with identical terminal positions for P, N, U (or W), and gate/emitter signal pins. No wiring changes are required for a direct swap. Apply fresh thermal compound to the heatsink interface before installation.

Q: Do I need to update the drive’s firmware or PLC program after replacing the module?
A: No. The 7MBI50N-120 is a passive power semiconductor. Replacing it does not affect the drive’s control firmware, PLC ladder logic, or parameter settings. After installation, perform a no-load power-on test and verify gate drive waveforms before resuming full production load.

Q: Is the replacement compatible with PROFIBUS or DeviceNet communication cards installed in the host drive?
A: Yes. Fieldbus communication cards operate on the drive’s control board and are electrically isolated from the power stage. The module swap has no effect on communication protocol operation or network addressing.

Q: The original module was mounted in a compact inverter cabinet with limited clearance. Will the replacement fit?
A: The replacement maintains the same physical envelope as the original 7MBI50N-120. Mounting hole spacing, module height, and terminal block positions are identical. No cabinet modification is required.

Q: How do I verify the replacement module before installing it in the live system?
A: Use a curve tracer or IGBT tester to verify V_CE(sat), leakage current (I_CES), and gate threshold voltage (V_GE(th)) against the datasheet. TOPNLMS performs outgoing inspection on all units prior to shipment.

Q: What if the host drive’s overcurrent protection trips immediately after replacement?
A: Check the gate resistor values and dead-time settings on the gate driver board. A mismatch in switching speed between the new module and the original gate driver tuning can cause false overcurrent detection. Adjust R_g if necessary, or contact our technical support team.

Warranty Assurance

Every Fuji Electric 7MBI50N-120 replacement unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Our pre-shipment inspection protocol includes static parameter verification (V_CE(sat), I_CES, V_GE(th)), visual inspection for package integrity, and packaging in anti-static, shock-resistant materials suitable for international air and sea freight.

If a unit exhibits a verified manufacturing defect or parameter deviation within the warranty period, TOPNLMS will arrange a replacement shipment or issue a credit at our discretion. Our technical team is available via email and phone to assist with installation questions, compatibility verification, and post-installation commissioning support.

We maintain stock of the 7MBI50N-120 and related N-Series modules in our Xiamen warehouse, enabling same-day dispatch for in-stock orders placed before 15:00 CST. Express courier options (DHL, FedEx, UPS) are available for urgent replacement requirements with typical transit times of 3–7 business days to most international destinations.

For volume procurement, OEM replacement programs, or consignment stock arrangements, contact our sales team to discuss pricing, lead times, and quality documentation (test reports, certificates of conformance).
