FUJI 2DI75D-050A Replacement/Upgrade for 2DI-D Series

Product Overview

FUJI 2DI75D-050A Replacement/Upgrade for 2DI-D Series: Smooth Transition from Legacy IGBT Systems

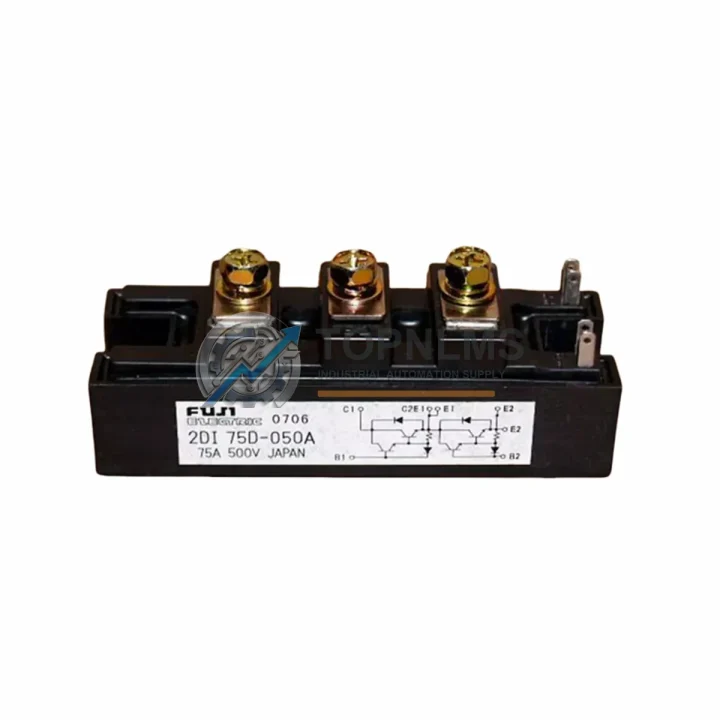

The FUJI Electric 2DI75D-050A is a dual IGBT power module rated at 75A / 500V, belonging to FUJI’s established 2DI-D Series. For industrial facilities operating aging inverter drives, servo amplifiers, or motor control centers built around discontinued or end-of-life IGBT modules, the 2DI75D-050A represents a proven, pin-compatible replacement that minimizes engineering rework and eliminates extended production downtime. Whether you are retiring a legacy drive system, sourcing emergency spares, or executing a planned modernization of your power conversion infrastructure, this module delivers the electrical performance and mechanical form factor required for a seamless retrofit.

Industrial automation systems built in the 1990s and early 2000s frequently relied on FUJI’s 2DI-D Series dual IGBT modules as the core switching element in variable frequency drives (VFDs), uninterruptible power supplies (UPS), welding inverters, and induction heating equipment. As original equipment manufacturers (OEMs) discontinue support for these platforms, maintenance engineers face the challenge of sourcing functionally equivalent replacements without redesigning the entire power stage. The 2DI75D-050A addresses this challenge directly: its TO-247-compatible dual-switch topology, standard gate-emitter pinout, and 500V collector-emitter voltage rating align with the electrical specifications of the systems it replaces.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful IGBT module replacement rarely involves the power switch alone. When upgrading or repairing a drive system built around the 2DI75D-050A, maintenance teams typically address the surrounding power stage and control infrastructure simultaneously to ensure long-term reliability and avoid repeat failures.

On the gate drive side, the existing FUJI EXB841 or EXB840 gate driver board should be inspected and tested before commissioning the new module. These dedicated IGBT gate driver ICs are designed to interface directly with FUJI 2DI-D Series modules and provide the short-circuit protection, soft turn-off, and desaturation detection functions that protect the new IGBT from overcurrent damage during startup. If the gate driver board shows signs of degradation — common in systems that have experienced a module failure — replacing it alongside the 2DI75D-050A is strongly recommended.

The DC bus capacitor bank is another critical component in the upgrade path. In older VFD and inverter platforms, electrolytic capacitors in the DC link — often 1000µF to 4700µF at 400V or 450V DC — degrade over time and contribute to voltage ripple that stresses the IGBT switching junctions. Sourcing replacement capacitors from the same control cabinet bill of materials ensures the new 2DI75D-050A operates within its rated ripple current envelope.

For systems where the host controller communicates with the drive via PROFIBUS-DP or Modbus RTU, the communication module — such as a FUJI OPC-G1-PDP PROFIBUS option card or a Modbus RTU interface board — does not require reconfiguration when only the power module is replaced. The 2DI75D-050A is a transparent power-stage component; the control layer, including any FUJI FRENIC series inverter main board or third-party PLC I/O module managing the drive’s enable and speed reference signals, continues to operate without parameter changes.

In retrofit projects where the entire drive chassis is being replaced rather than just the IGBT module, engineers frequently pair the 2DI75D-050A with a new FUJI FRENIC-Ace or FRENIC-Multi inverter platform. These modern drives accept the same motor wiring and can be configured to replicate the legacy drive’s V/f curve or vector control parameters, preserving process behavior while gaining access to current firmware, fieldbus options, and safety function support.

Current sensing components — including Hall-effect current transducers and shunt resistors mounted on the output phase busbars — should also be verified during the replacement process. Accurate current feedback is essential for the overcurrent protection logic that guards the new IGBT module. Similarly, the NTC thermistor or thermocouple mounted on the heatsink adjacent to the module should be tested to confirm the thermal monitoring circuit will correctly trigger a fault before the 2DI75D-050A reaches its 150°C junction temperature limit.

For facilities managing a broader spare parts inventory, stocking complementary components such as the FUJI 2DI100D-050A (100A variant in the same 2DI-D package) and the FUJI 2DI50D-050A (50A lower-current variant) alongside the 2DI75D-050A provides coverage across multiple drive ratings within the same product family, reducing the number of unique part numbers required in the maintenance stockroom.

Retrofit Guidance FAQ

Q: Can I replace the 2DI75D-050A without modifying the existing wiring harness?
A: Yes. The 2DI75D-050A uses the standard 2DI-D Series terminal layout (C1, E1/C2, E2, G1, G2). The power terminals and gate signal connectors are pin-compatible with the original module. No rewiring is required; however, applying fresh thermal interface compound between the module base plate and the heatsink is mandatory to ensure proper thermal conductivity.

Q: Will the replacement module affect my PLC program or drive parameters?
A: No. The 2DI75D-050A is a passive power semiconductor. It does not contain firmware, memory, or configurable parameters. Your existing PLC ladder logic, drive parameter sets, and HMI screen configurations remain unchanged. After installation, a standard drive self-test and motor rotation check are sufficient to confirm correct operation.

Q: Is the 2DI75D-050A compatible with my existing IGBT gate driver circuit?
A: In most cases, yes. The module’s gate threshold voltage (VGE(th)) and input capacitance (Cies) are consistent with FUJI 2DI-D Series specifications. Gate driver circuits designed for this series — including those using the EXB841, EXB840, or equivalent isolated gate driver ICs — are compatible. If your gate driver uses a non-FUJI design, verify that the gate resistor values and drive voltage levels (+15V / -5V to -8V) fall within the 2DI75D-050A datasheet limits before powering up.

Q: What physical space is required for installation?
A: The 2DI75D-050A uses the standard 2DI-D Series package dimensions. It mounts directly to the existing heatsink using M5 screws at the standard bolt pattern. No control cabinet modifications or additional mounting hardware are required. Ensure the heatsink surface is clean and flat before installation.

Q: How do I verify the module is functioning correctly after installation?
A: After mechanical installation and before applying DC bus voltage, perform a static gate-emitter and collector-emitter diode check using a multimeter or IGBT tester. Then power up the drive with no load connected and verify that the gate driver outputs the correct switching waveform at low duty cycle. Finally, run the motor at reduced speed and monitor output current balance across all phases before returning the system to full production load.

Q: Can this module be used as a direct replacement for other 75A / 500V dual IGBT modules from other manufacturers?
A: The 2DI75D-050A may be functionally compatible with other 75A / 500V dual IGBT modules sharing the same package footprint and terminal layout, but cross-manufacturer substitution should always be validated against the target system’s gate drive circuit design, switching frequency, and thermal management specifications. Contact our technical team for cross-reference confirmation before ordering for non-FUJI host systems.

Warranty Assurance

Every FUJI 2DI75D-050A shipped from TOPNLMS is covered by a 12-Month Warranty from the date of delivery. Our pre-shipment inspection process includes visual examination for physical damage, static electrical testing of gate-emitter and collector-emitter junctions, and verification of module markings and date codes against our supplier documentation.

If a module is found to be defective on arrival (DOA) or fails within the warranty period under normal operating conditions, TOPNLMS will arrange a replacement shipment or issue a refund in accordance with our standard after-sales policy. Warranty claims are processed within 3 business days of receiving the returned item and supporting documentation (installation photos, fault description, and drive event log if available).

We maintain bonded inventory of the 2DI75D-050A and related 2DI-D Series components at our Xiamen facility, enabling same-day dispatch for in-stock orders placed before 15:00 CST. International shipments are dispatched via DHL Express, FedEx International Priority, or UPS Worldwide Expedited depending on destination and urgency. Export documentation including commercial invoice, packing list, and certificate of origin is prepared for all cross-border shipments.

For urgent plant-down situations, contact our technical sales team directly to confirm stock availability, lead time, and expedited shipping options before placing your order. We understand that unplanned IGBT failures carry significant production cost implications, and our procurement support process is designed to minimize the time between fault diagnosis and module delivery.

For volume orders, blanket purchase agreements, and consignment stock arrangements, please contact us to discuss pricing, lead time commitments, and quality assurance documentation requirements.
