Foxboro P0916SG-0B Replacement for I/A Series Contact Input

Product Overview

Foxboro P0916SG-0B Replacement for I/A Series Contact Sense Input Module: Seamless Migration & Upgrade Solution

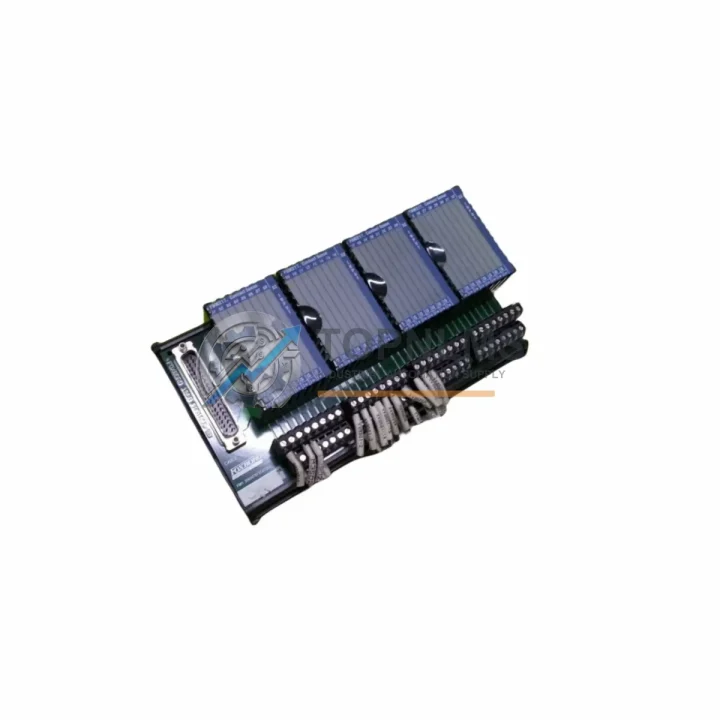

The Foxboro P0916SG-0B is a 16-channel Contact Sense Input Module designed for the Foxboro I/A Series Distributed Control System (DCS). As legacy I/A Series installations approach end-of-life or face spare-parts shortages, plant engineers and procurement teams increasingly require a reliable, drop-in replacement that preserves existing wiring infrastructure, control logic, and system architecture without forcing a full platform migration. TOPNLMS supplies tested, ready-to-ship P0916SG-0B modules with a 12-month warranty, enabling facilities to extend the operational life of their I/A Series DCS while planning a structured modernization roadmap.

The P0916SG-0B mounts directly into the standard I/A Series fieldbus module enclosure (FBM enclosure) and communicates over the Nodebus fieldbus protocol — the same protocol used across the broader I/A Series I/O family. This means no changes are required to the Foxboro AW70 or AW51 Application Workstations, no re-engineering of the Integrated Control Configurator (ICC) database, and no rewiring of the existing marshalling cabinet or junction boxes. The module accepts dry-contact and wet-contact field inputs, making it directly compatible with motor status feedback, valve position signals, interlock circuits, and emergency shutdown (ESD) logic already wired to the original P0916SG-0B.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful P0916SG-0B replacement rarely occurs in isolation. During a planned maintenance window or unplanned failure event, field teams typically audit adjacent modules in the same FBM enclosure. Common companion components that are replaced or upgraded alongside the P0916SG-0B include the Foxboro P0914TW Thermocouple Input Module and the Foxboro P0916DA Analog Output Module, both of which share the same Nodebus communication architecture and FBM enclosure slot standard. If the site is also upgrading its I/O density, the Foxboro P0926GU 32-channel Digital Input Module offers a higher-density alternative for marshalling cabinet consolidation projects.

For sites where the Nodebus fieldbus infrastructure itself is aging, the Foxboro FBM230 Fieldbus Module provides a migration path toward FOUNDATION Fieldbus H1 and PROFIBUS DP, allowing a phased transition without decommissioning the entire I/A Series platform at once. Power distribution within the FBM enclosure is managed by the Foxboro P0922VW Power Supply Module; replacing a faulty PSU module in parallel with the P0916SG-0B swap eliminates a second maintenance window. Field signal conditioning between the marshalling cabinet and the FBM enclosure often relies on MTL or P+F signal isolators — verifying isolator integrity during a contact input module replacement prevents nuisance trips after recommissioning.

On the operator interface side, sites running the Foxboro IACC Workstation or the newer Foxboro Evo Control Core Services (CCS) platform can continue using existing display graphics and alarm configurations without modification, since the P0916SG-0B replacement preserves the same block tags and I/O addresses. For facilities that have already migrated their operator stations to the Foxboro Evo Process Automation System, the replacement P0916SG-0B integrates transparently, as Evo maintains backward compatibility with legacy I/A Series FBM hardware. Programming cables such as the Foxboro AW70 Ethernet patch cable set and the standard RJ45-to-Nodebus adapter remain unchanged throughout the swap procedure.

Retrofit Guidance FAQ

Q: Do I need to rewire the field terminals when replacing the P0916SG-0B?
No. The replacement module uses an identical screw-terminal layout. Disconnect the terminal block from the original module, verify wiring integrity, and reconnect to the replacement unit. No field cable changes are required.

Q: Will the replacement module require changes to the ICC control database?
No. The P0916SG-0B replacement retains the same Nodebus device address and block tag structure. The ICC or Control Configurator database does not need to be modified, and existing control strategies remain intact.

Q: Is the module compatible with both dry-contact and wet-contact field inputs?
Yes. The P0916SG-0B supports both dry-contact (volt-free) and wet-contact (externally powered) configurations, consistent with the original module specification. Configuration is set via the module’s DIP switches or software parameters — no hardware modification is needed.

Q: Can the module be replaced during live plant operation (hot-swap)?
The I/A Series FBM enclosure supports module removal and insertion with the enclosure powered. However, the 16 contact input channels associated with the P0916SG-0B will be offline during the swap. Coordinate with the control room to place affected loops in manual or bypass mode per your site’s Management of Change (MOC) and Safety Instrumented System (SIS) procedures before proceeding.

Q: What is the physical installation space requirement?
The P0916SG-0B occupies a single FBM enclosure slot — identical to the original module. No additional DIN rail space, cable tray modification, or enclosure expansion is required.

Q: How do I verify communication after installation?
After seating the module, the Nodebus fieldbus controller will automatically detect the new module within 30–60 seconds. Confirm module status via the I/A Series System Manager or AIM*AT diagnostic tool. Green LED status on the module front panel indicates successful Nodebus communication and self-test completion.

Warranty Assurance

Every P0916SG-0B supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each module undergoes a functional verification test including power-on self-test (POST) confirmation, Nodebus communication handshake verification, and channel-level continuity checks across all 16 contact sense inputs. Modules that do not pass the full test sequence are not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement module dispatch within 3 business days of fault confirmation, minimizing plant downtime. Our after-sales team is reachable via email at [email protected] or by phone at +86 18359293191 for technical pre-sales consultation, installation guidance, and post-delivery support. We maintain buffer stock of high-demand I/A Series modules to support emergency procurement requirements with same-week shipping from our Xiamen warehouse.

Procurement teams can request a formal quotation, certificate of conformance, or packing list in advance of purchase order issuance. All modules are shipped with ESD-protective packaging, individual serial number labeling, and a printed test report. Import documentation including commercial invoice, packing list, and HS code declaration is provided as standard for international shipments.
