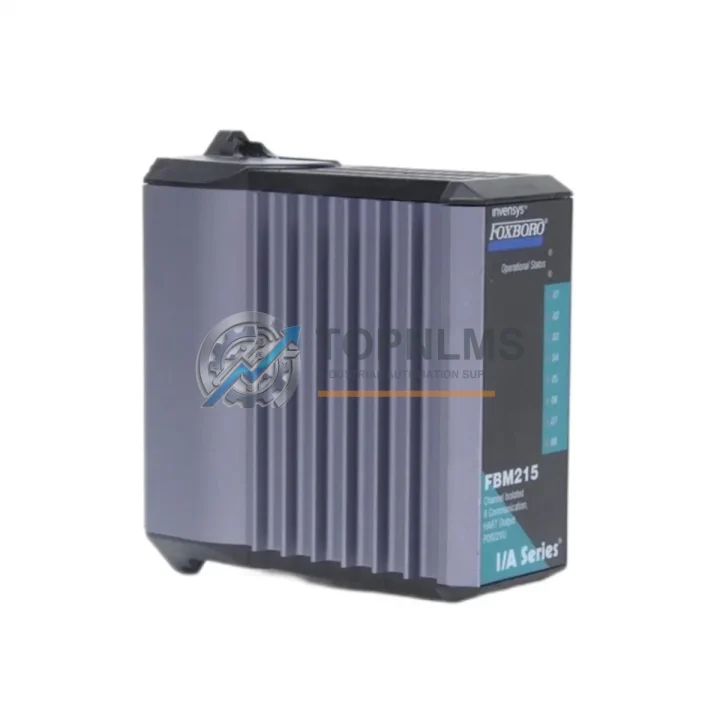

FOXBORO FBM215 Replacement/Upgrade for I/A Series DCS

Product Overview

FOXBORO FBM215 Replacement/Upgrade for I/A Series DCS: Smooth Transition, Zero Compromise

When a legacy Foxboro I/A Series distributed control system reaches end-of-life or a critical output module fails on the production floor, every hour of unplanned downtime translates directly into lost revenue and safety risk. The FOXBORO FBM215 Output Interface Module is a proven, field-validated solution that enables plant engineers and procurement teams to execute a seamless replacement or controlled upgrade without redesigning the control architecture, rewiring the marshalling cabinet, or rewriting the control strategy.

The FBM215 is a dedicated output interface module designed for the Foxboro I/A Series DCS platform. It provides analog output capability to final control elements — including control valves, variable-speed drives, and positioners — while maintaining full compatibility with the I/A Series fieldbus communication infrastructure. Whether you are replacing a failed unit on a continuous process line or executing a planned spares replenishment program, the FBM215 slots directly into the existing I/A Series FBM baseplate without mechanical modification, preserving your existing field wiring, terminal assignments, and loop configuration.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful FBM215 replacement rarely happens in isolation. In practice, plant engineers conducting a Foxboro I/A Series upgrade or emergency spares replenishment will simultaneously evaluate the condition of adjacent modules and system components to avoid repeat failures and reduce future maintenance windows.

The FBM215 operates within a broader I/A Series control node that typically includes the FBM201 and FBM202 analog input modules, which feed process variable data into the same control loops that the FBM215 drives. If the output module has degraded, it is prudent to verify the calibration and integrity of these companion input modules as well. Similarly, the FBM207 and FBM207C discrete input modules — used for contact sensing and digital status feedback — are often installed in the same FBM baseplate assembly and should be inspected during any planned maintenance outage.

The I/A Series communication infrastructure relies on the FCP270 Fieldbus Communication Processor to coordinate data exchange between the FBM layer and the control processor. If the FBM215 replacement is part of a broader system refresh, verifying the firmware version and communication health of the FCP270 ensures that the upgraded output module is recognized correctly by the control network without requiring manual re-addressing.

For marshalling and field termination, the FBM baseplate assembly and associated ZCP270 or ZCP280 communication interface modules provide the physical and logical backbone that the FBM215 depends on. Ensuring these components are in serviceable condition before installing the replacement module eliminates the risk of misdiagnosis — where a faulty baseplate or communication card is mistaken for a module failure.

In control cabinets where the I/A Series system shares enclosure space with third-party drives or safety systems, the FBM232 HART communication module is frequently deployed alongside analog output modules like the FBM215 to enable device diagnostics and valve positioner communication without additional wiring. Procurement teams sourcing the FBM215 often add the FBM232 to their order to maintain a complete and current spare parts inventory for the HART-enabled loop instruments in their plant.

Power distribution within the I/A Series cabinet is managed by dedicated I/A Series power supplies and associated redundancy modules. A module swap is an ideal time to verify that the baseplate power rails are within specification, as marginal power supply performance can cause intermittent output errors that are difficult to diagnose after the fact.

Application in Critical Infrastructure

The FOXBORO FBM215 is deployed across a wide range of critical process industries where the I/A Series DCS platform has been the backbone of plant automation for decades. In oil and gas processing facilities, the FBM215 drives control valve positioners on separator trains, compressor anti-surge loops, and custody transfer metering systems. The module’s reliable 4–20 mA output and tight integration with the I/A Series control strategy make it a preferred choice for applications where output signal integrity directly affects process safety and product quality.

In power generation plants — including coal-fired, gas turbine, and combined-cycle facilities — the FBM215 is used to modulate burner management outputs, feedwater control valves, and turbine bypass systems. The ability to replace the module without modifying the existing control compound or retuning the PID blocks significantly reduces the risk associated with maintenance activities on live generating units.

In water and wastewater treatment infrastructure, the FBM215 controls chemical dosing pumps, aeration blower speed references, and filter backwash valve actuators. Municipal utilities operating aging Foxboro I/A Series installations rely on the availability of genuine replacement FBM215 modules to maintain regulatory compliance and avoid costly system-wide upgrades.

In metallurgical and heavy industrial environments — including steel mills, aluminum smelters, and mining operations — the FBM215 is used in furnace temperature control loops, conveyor speed regulation, and hydraulic press control systems. These applications demand consistent output performance under conditions of high ambient temperature, electrical noise, and mechanical vibration, all of which the I/A Series platform and the FBM215 module are engineered to withstand.

Retrofit Guidance FAQ

Q1: Can the FBM215 be installed without modifying existing field wiring or terminal blocks?
Yes. The FBM215 uses the standard I/A Series FBM baseplate terminal interface. Field wiring connected to the existing baseplate terminal assembly remains undisturbed during the module swap. No rewiring, re-labelling, or loop recalibration is required as part of the physical replacement procedure.

Q2: Will the existing I/A Series control compound and block configuration work with the replacement FBM215?
Yes. The FBM215 is recognized by the I/A Series control processor using the same module type identifier as the original unit. The existing AO (Analog Output) function blocks, scaling parameters, and loop tuning constants are retained in the control database and do not require modification after the module is replaced and the control processor re-establishes communication with the new unit.

Q3: Is the FBM215 compatible with HART-enabled field instruments connected to the output loop?
The FBM215 provides standard 4–20 mA analog output. For full HART pass-through and device diagnostics, the FBM232 HART communication module should be used in conjunction with the FBM215 where HART capability is required by the instrument loop design. This is consistent with standard I/A Series system architecture for HART-enabled installations.

Q4: What testing is performed before shipment, and what does the 12-month warranty cover?
Every FBM215 unit supplied by TOPNLMS undergoes functional verification testing prior to shipment, including output signal accuracy checks across the full 4–20 mA range and communication interface validation. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Our technical support team provides post-installation assistance and, where required, advance replacement to minimize production downtime.

Warranty Assurance

TOPNLMS provides a 12-month warranty on all FOXBORO FBM215 modules from the date of shipment. This warranty reflects our confidence in the quality of every unit we supply and our commitment to supporting industrial customers who depend on reliable spare parts availability to maintain continuous production.

Prior to dispatch, each FBM215 undergoes a structured pre-shipment inspection that includes visual examination for physical damage, functional output signal testing, and communication interface verification against I/A Series protocol standards. Units that do not meet our acceptance criteria are quarantined and not offered for sale.

In the event of a warranty claim, our team responds within one business day to assess the reported fault. Where the failure is confirmed to be covered under warranty, we provide a replacement unit and coordinate return logistics to minimize the impact on your maintenance schedule. We maintain stock of FBM215 modules to support advance replacement requests for customers with urgent production requirements.

Our procurement support team is available to assist with lead time confirmation, export documentation, and customs classification for international shipments. We ship from Xiamen, China, with express freight options available for time-critical orders.
