Foxboro P0914ZM Replacement/Upgrade Solution for IA Series: Seamless Migration from Legacy DCS I/O

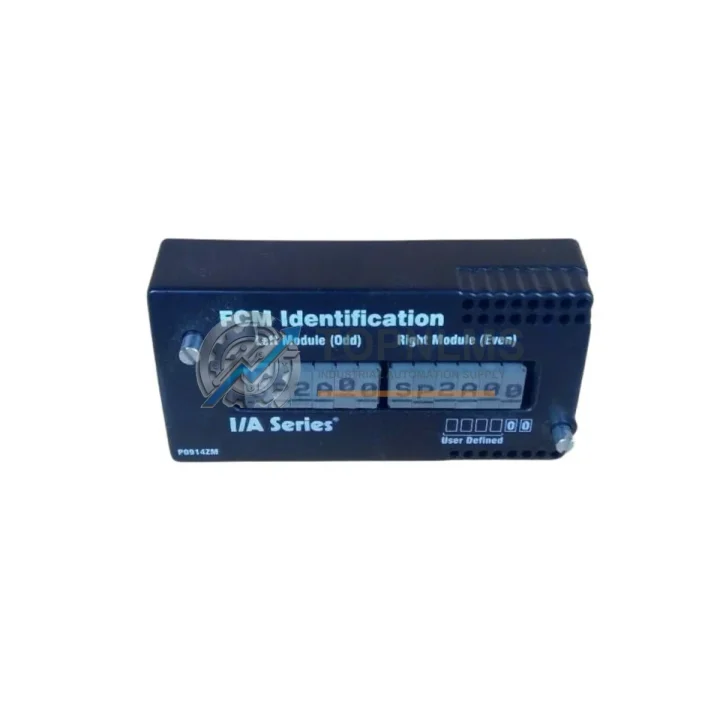

The Foxboro P0914ZM is a right-side I/O expansion module designed for the Foxboro Intelligent Automation (IA) Series Distributed Control System. As Foxboro’s IA Series platform ages and spare parts become increasingly scarce, plant engineers and procurement teams face mounting pressure to source verified replacement units that maintain full compatibility with existing field wiring, marshalling cabinets, and control logic—without triggering a full system overhaul.

TOPNLMS supplies the P0914ZM as a direct drop-in replacement for facilities operating legacy Foxboro IA Series DCS installations. Whether your existing module has failed, is approaching end-of-life, or you are building a strategic spare inventory to reduce unplanned downtime risk, this unit ships from verified stock with a 12-month warranty and pre-shipment functional testing.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful P0914ZM replacement rarely happens in isolation. In most IA Series DCS retrofit projects, the I/O expansion module works in concert with a broader set of components that must be evaluated for compatibility and condition simultaneously.

The Foxboro FBM (Field Bus Module) family—including units such as the FBM201, FBM202, and FBM204—handles the critical interface between field instruments and the IA Series controller. When replacing the P0914ZM right expansion card, engineers should verify that the adjacent FBM modules in the same rack are operating within specification, as a degraded FBM can mask I/O faults that appear to originate from the expansion card itself.

The Foxboro CP60 and CP270 Control Processors are the computational backbone of most IA Series installations. During a P0914ZM swap, it is advisable to confirm that the control processor firmware is current and that the I/O map in the control database accurately reflects the physical slot assignment of the replacement module. Mismatched slot addressing is a common commissioning error during hot-swap replacements.

Power integrity is equally critical. The Foxboro P0922VW Power Supply Module and related rack power distribution assemblies must be verified to deliver stable voltage to the expansion slot. A marginal power supply that was previously borderline may cause intermittent faults in a newly installed P0914ZM, leading to misdiagnosis of the replacement unit.

Field termination is handled through Foxboro termination assemblies and marshalling panels connected via multi-conductor cables to the I/O module’s backplane. During a P0914ZM replacement, inspect the termination assembly connectors for corrosion, loose pins, or insulation degradation—particularly in high-humidity or chemically aggressive plant environments. Replacing the termination assembly at the same time as the I/O module is a best practice that reduces the risk of a second service call.

For facilities that are simultaneously upgrading their operator interface, the Foxboro Workstation (FoxView / IACC) HMI software and associated display nodes should be reviewed to ensure that the I/O tag database is synchronized with the physical hardware change. In some migration scenarios, customers also introduce a Modbus TCP or PROFIBUS gateway module alongside the P0914ZM replacement to bridge legacy Nodebus segments with newer plant network infrastructure—a common step in phased DCS modernization programs.

Finally, customers performing a broader IA Series rack refresh often source Foxboro P0916TS or P0916TU termination modules and P0903TW or P0903TX I/O base units in the same procurement cycle to minimize future maintenance windows and consolidate shipping costs.

Retrofit Guidance FAQ

Q: Can I replace the P0914ZM without shutting down the entire DCS?
A: The IA Series supports hot-standby and redundant I/O configurations in some rack layouts. Whether a live swap is possible depends on your specific system architecture, redundancy configuration, and the criticality of the I/O points served by this module. Always consult your site’s MOC (Management of Change) procedure and verify with your DCS engineer before attempting a live replacement.

Q: Will my existing field wiring connect directly to the replacement P0914ZM?
A: Yes, provided the replacement unit is a genuine P0914ZM for the IA Series platform. The field wiring connects to the termination assembly, not directly to the module, so wiring changes are typically not required for a like-for-like swap.

Q: Do I need to re-download the control program after replacing the module?
A: In most IA Series configurations, the control logic resides in the Control Processor (CP), not in the I/O module itself. A P0914ZM replacement generally does not require a control program download, but you should perform an I/O checkout and verify all channel assignments after installation.

Q: Is the P0914ZM compatible with Foxboro SPEC 200 racks?
A: No. The P0914ZM is designed exclusively for the IA Series platform. SPEC 200 and IA Series use different backplane architectures, power buses, and communication protocols. Cross-platform installation will result in hardware damage and is not supported.

Q: What communication protocol does the P0914ZM use?
A: The module communicates over the Foxboro Nodebus (also referred to as FoxCom) proprietary fieldbus, which is the standard intra-rack communication bus for the IA Series DCS. It is not directly compatible with HART, PROFIBUS, or Foundation Fieldbus without an appropriate gateway module.

Q: How much physical space does the module require?
A: The P0914ZM occupies a single right-side expansion slot in a standard IA Series module rack. No additional panel space or external mounting hardware is required beyond the existing rack slot.

Warranty Assurance

Every Foxboro P0914ZM supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes a pre-shipment functional inspection to verify physical integrity, connector condition, and basic operational status. Units that do not pass inspection are not shipped.

In the event of a warranty claim, TOPNLMS provides replacement support with a target response time of one business day. Customers are asked to document the fault condition and provide installation details to facilitate rapid diagnosis. Where a confirmed manufacturing or quality defect is identified, a replacement unit will be dispatched at no additional cost.

TOPNLMS maintains stock of the P0914ZM and related IA Series components to support urgent procurement requirements. Express shipping options are available for critical plant situations where downtime costs are significant. All units are shipped with appropriate ESD-protective packaging and documentation.
